3 Short-Range Comms & IoT Mode
3.10 Spurious Emissions Measurement

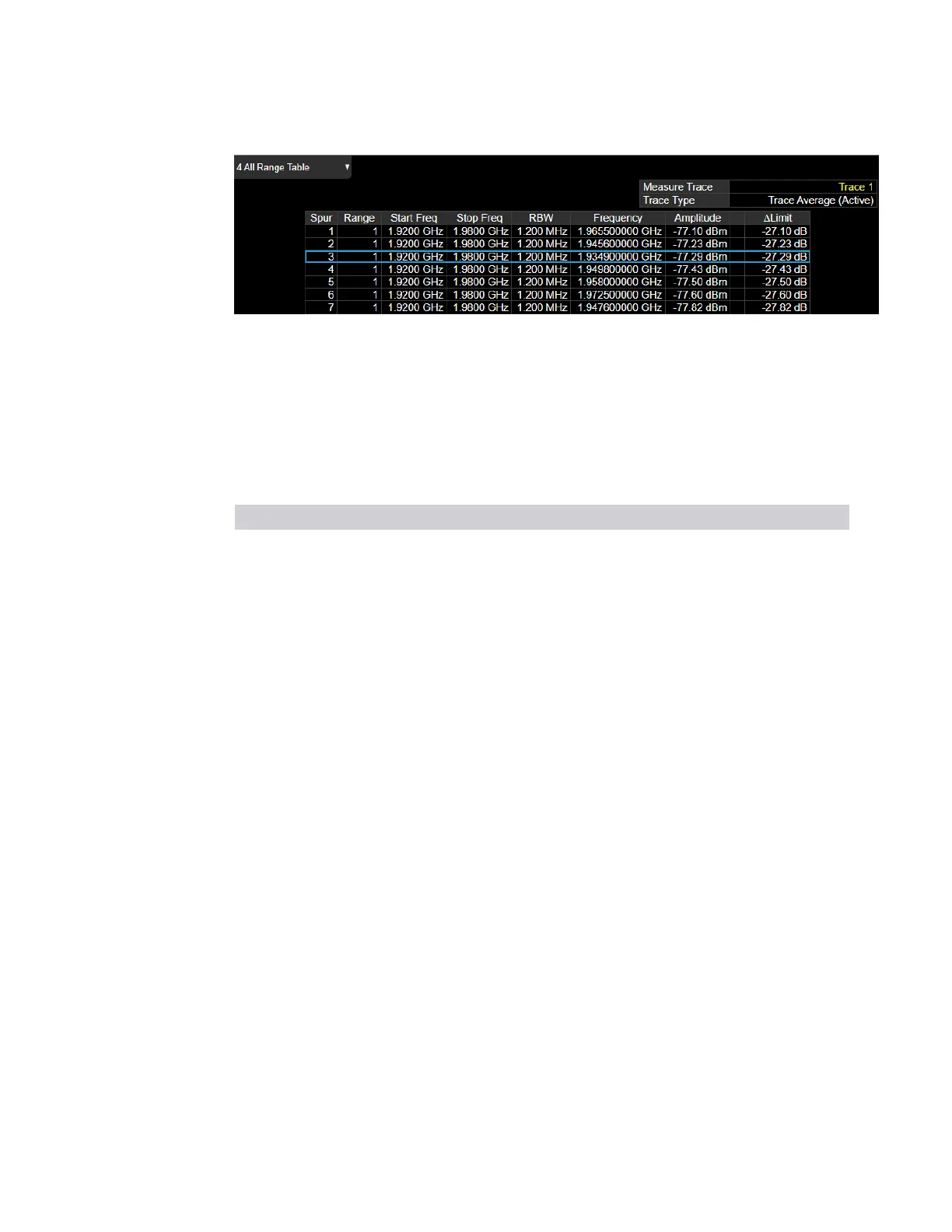

3.10.2.4 Gate
Window #5
Turning on "Gate View On/Off" on page 2366 displays the Gate Window, which
allows you to see your gating signal at the same time as the measured data.
Views in which the Gate window appears:
View Size Position
Gate View One third, full width Top
3.10.2.5 Marker Table
Window# 6
Displays a table containing detailed information about all the markers in the current
measurement. It can be selected from the Data control on the Window Title. There is
no specific view in which the Marker Table window turns on, it is on by demand.
3.10.3 Amplitude
Activates the Amplitude menu and selects Reference Level or Reference Value as
the active function, depending on the measurement.
Some features in this menu apply to multiple measurements. Some other features
apply only to specific measurements and their controls are blanked or grayed-out in
measurements that do not support the feature.
3.10.3.1 Y Scale
Contains controls that pertain to the Y axis parameters of the measurement. These
parameters control how data on the vertical (Y) axis is displayed and control
instrument settings that affect the vertical axis.
Short Range Comms & IoT Mode User's &Programmer's Reference 1361
