2 User Interface
2.2 Meas Bar
2.2 Meas Bar
The Meas Bar is used to display annotation for the current measurement. There are
three primary uses for the Meas Bar:
1.
To show annotation for the most important parameters in the measurement so
you can see them at a glance
2.
To show the annotation that you will most want to have recorded in a screen
dump
3.
To give you quick access to settings.
The Meas Bar is made up of a number of annotation panels, each of which, when
pressed, opens up a dialog below it which contains controls for those settings.

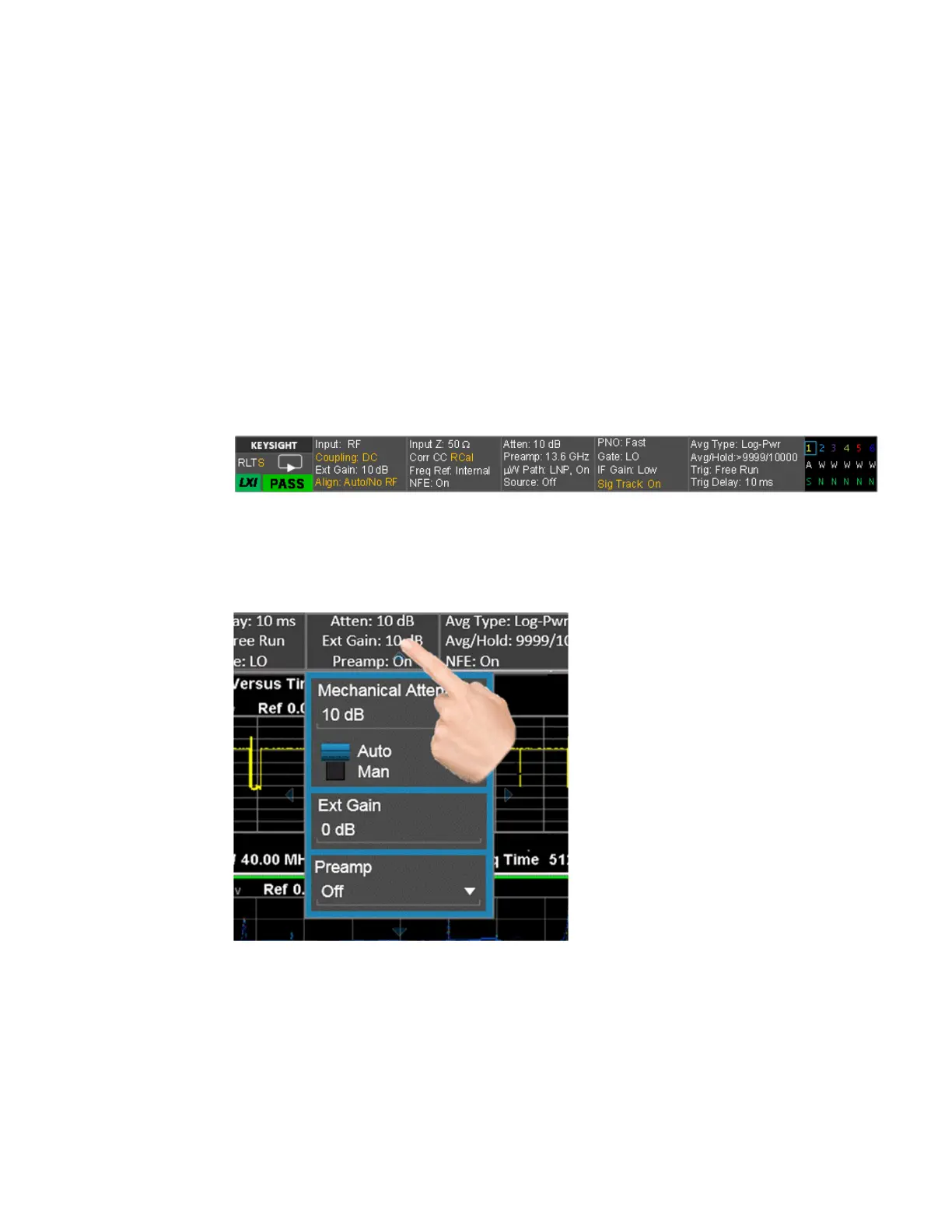

For example, here is what the display looks like when you touch one of the regions of
the Meas Bar:
Touching anywhere off the hotspot panel or pressing any hardkey except Save or
Quick Save closes the hotspot panel.
In a hotspot panel, the control in black with the blue border is the active function.
Each panel may have its own default active function.
