2 User Interface

2.17 View Editor

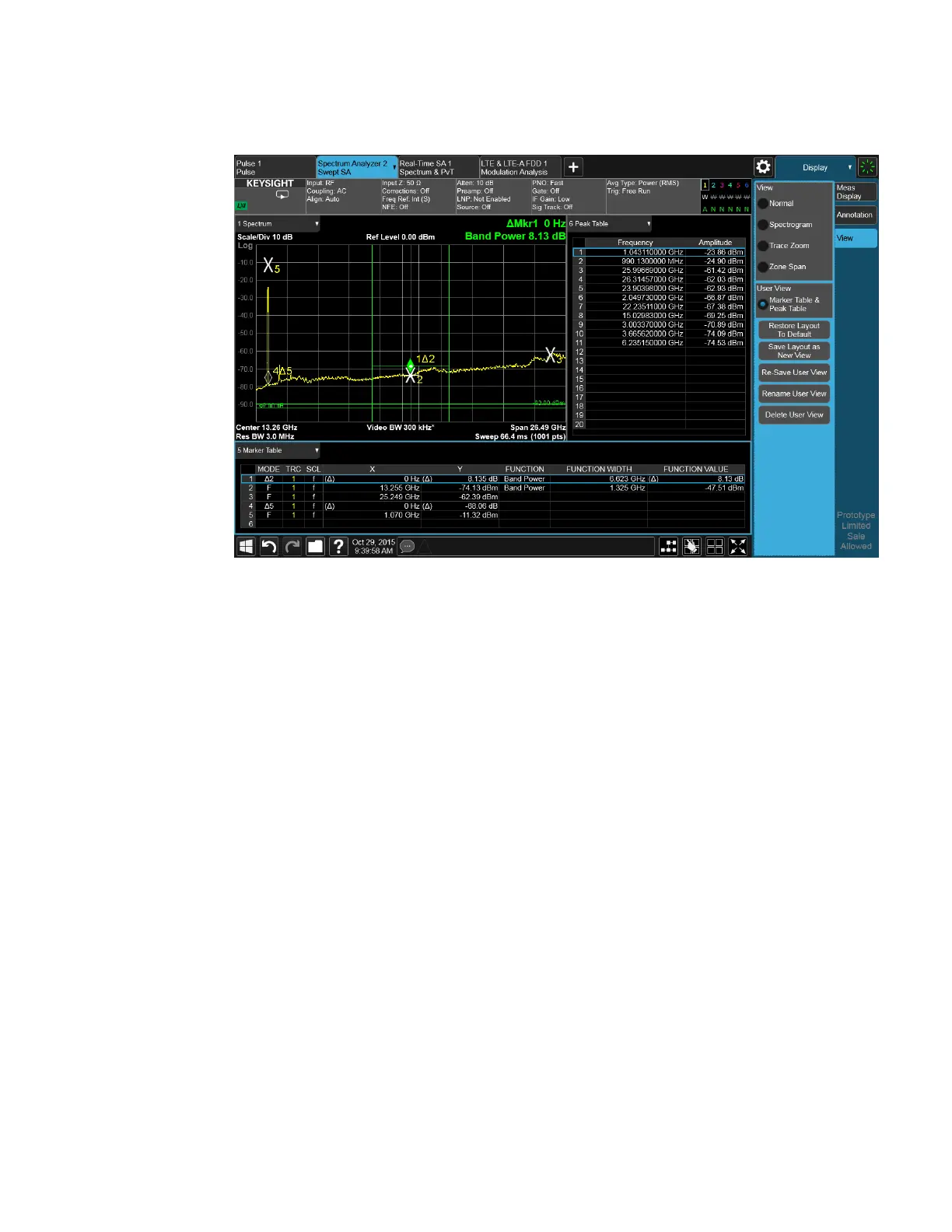

NOTE: There are legacy displays like Marker Table, Peak Table, Measure at Marker

and Gate View, which are not Views but special display modes. These are retained

for backwards compatibility, however they are turned on and off with switches and

do not use the View system. Turning on one of these switches does not create a

modified View, it merely adds the specified window to the current View; turning the

switch back off removes the window. While the switch is on, NO View shows as

selected in the View menu. These switches are grayed out if you are in a modified

View or a User View. Since only one of these switches can be on at a time, and

because these switches turn off on a Preset, User Views offer a superior way of

adding windows than using the switches.

Some measurements do not support User Views; these do not allow adding,

deleting or rearranging windows, however they do allow resizing windows. In these

measurements you can get into the View Editor but the Add icons, Delete icons and

Move icons will not appear. You can still resize the windows and in some cases (e.g.

Noise Figure) you can still change window contents.

2.17.9 View Editor Remote Commands

Remote Commands for User Views can be found in the documentation for the

Display, View tab.
