Keysight x-series Instruction Manual

2 User Interface
2.1 Screen Tabs
The following topics provide more information:
–
"Mode/Meas/View Dialog" on page 87
–
"Add Screen" on page 104
–

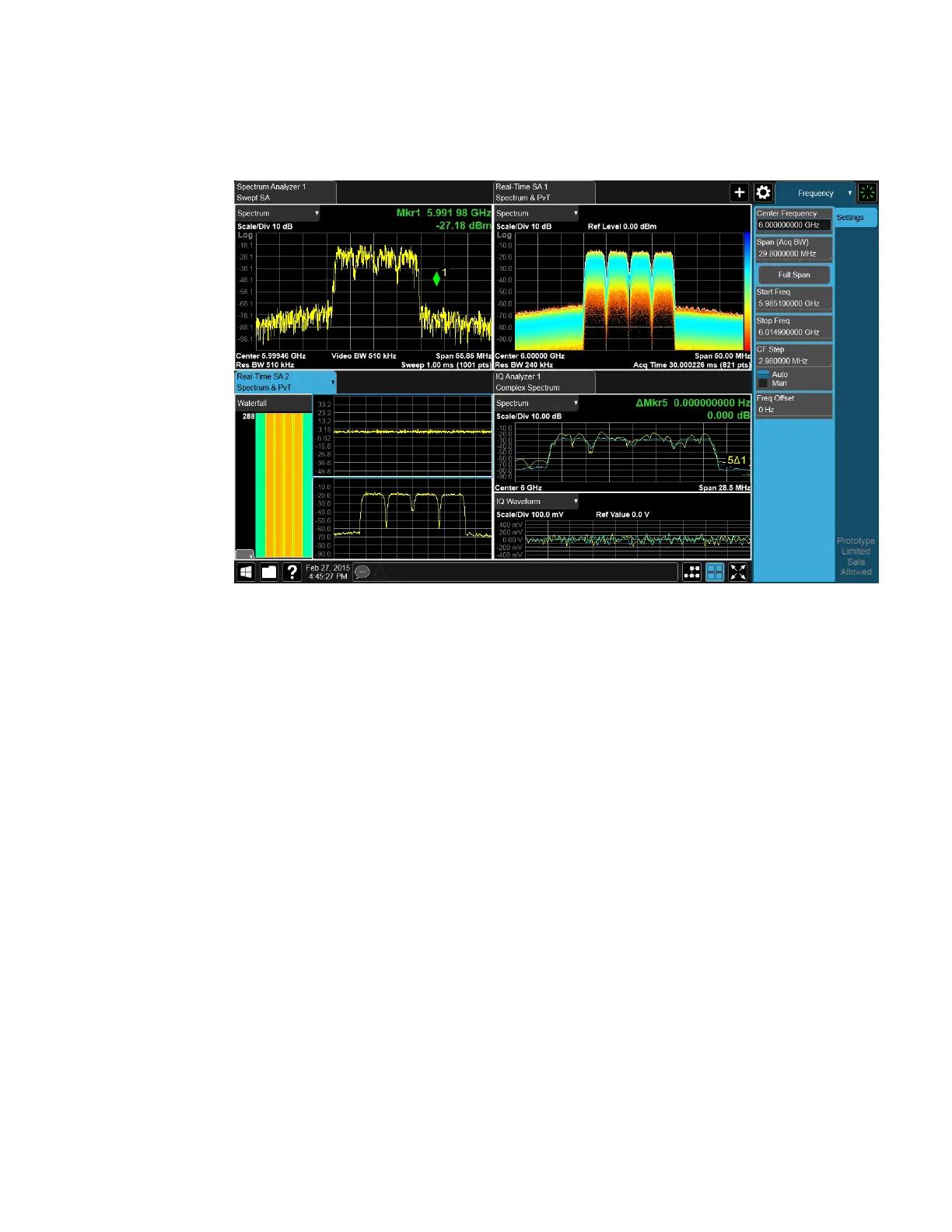

"Multiscreen" on page 174
2.1.1 Mode/Meas/View Dialog
The Mode/Meas/View dialog opens when you press the selected (blue) Screen tab
(see "Screen Tabs" on page 86) or the Mode/Meas front panel key.
This dialog displays lists of available Modes, Measurements and Views, as well as
the "Sequencer" on page 98 control for configuring Screens.
Short Range Comms & IoT Mode User's &Programmer's Reference 87

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
