Keysight x-series Instruction Manual

3 Short-Range Comms & IoT Mode
3.8 SEM Measurement

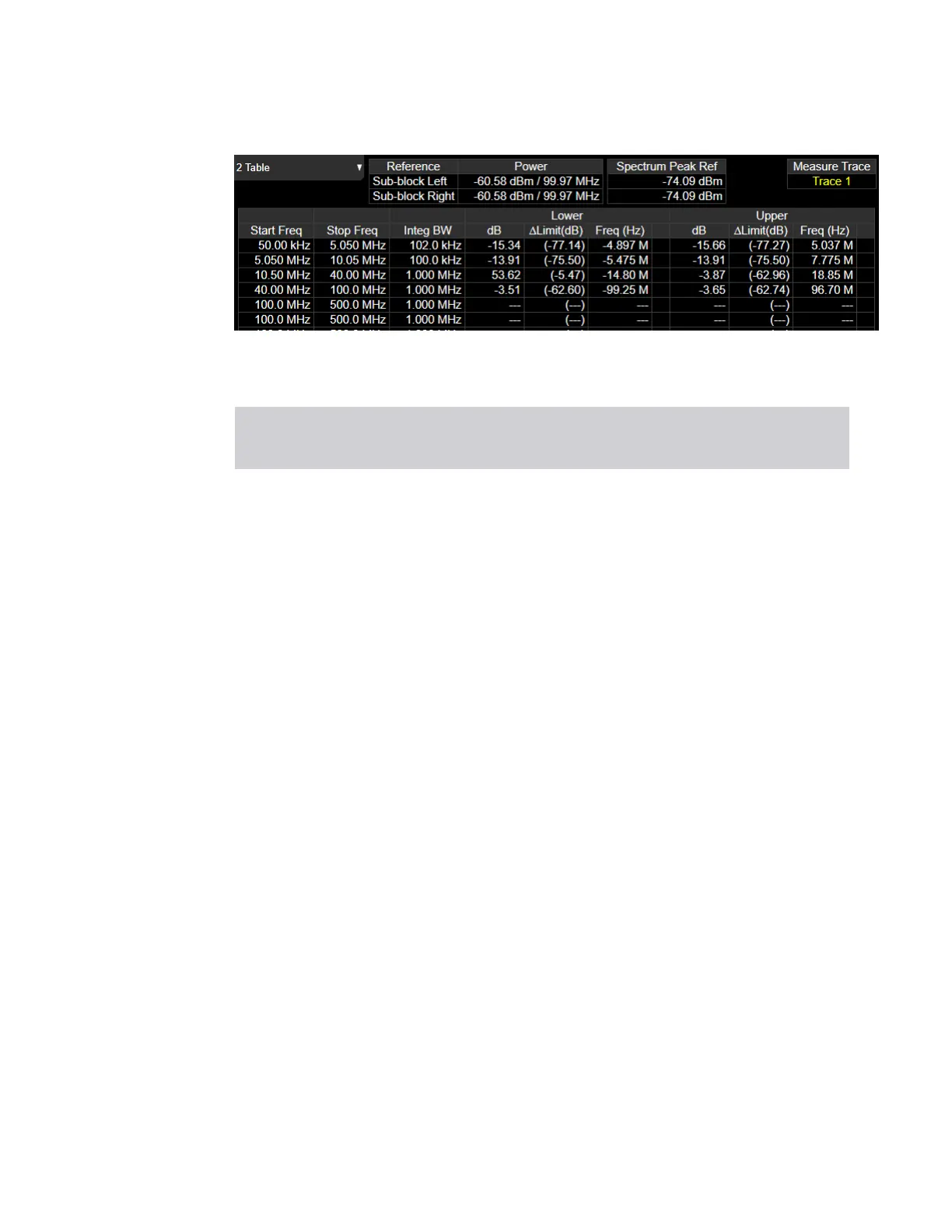

Table Window in Integrated Power View
Name
(Measurement
Type)
Unit, if any Corresponding Results
Power n = 1 2nd element
Absolute power at the reference area
Reference In multi-carrier applications, this column displays which
carrier is reference carrier
PSD Ref n = 5 1st element
Power spectral density reference at the reference area
Spectrum Peak Ref n = 5 1st element
Peak power at the reference area
Measure Trace See "Measure Trace" on page 1508
Start Freq Hz Start frequency for offset
Stop Freq Hz Stop frequency for offset
Integ BW Hz Measurement bandwidth for offset
Lower Integ (Total
Power Ref)
dBc Relative integrated power on the negative offset
Lower (PSD Ref) dB Relative power spectrum density of the negative offset
Lower Peak
(Spectrum Pk Ref)
dB Relative peak power on minimum margin point of the
negative offset
Lower Δ Lim dB Minimum margin from limit line which is decided by Fail
Mask setting on the negative offset
Lower Integ (Total
Power Ref)
dBm Absolute integrated power on the negative offset
Lower (PSD Ref) dBm/Hz Absolute power spectrum density of the negative offset
Lower Peak
(Spectrum Pk Ref)
dBm Absolute peak power on minimum margin point of the
negative offset
Upper Integ (Total
Power Ref)
dBc Relative integrated power on the positive offset
Short Range Comms & IoT Mode User's &Programmer's Reference 1033
