Keysight x-series Instruction Manual

3 Short-Range Comms & IoT Mode
3.3 LoRa (CSS) Demodulation Measurement
3.3.3 Amplitude
The Amplitude key activates the Amplitude menu and selects the Reference Value
as the active function.
3.3.3.1 Y Scale
The Y Scale tab contains controls that pertain to the Y axis parameters of the
measurement.
Ref Value
The reference value specifies the Y-axis value of the reference graticule line. The
reference line could be at the top, center, or bottom of the graticule, depending on
the selection of the reference position.
Changing the reference value does not restart a measurement but affects the
display of the traces and the markers.

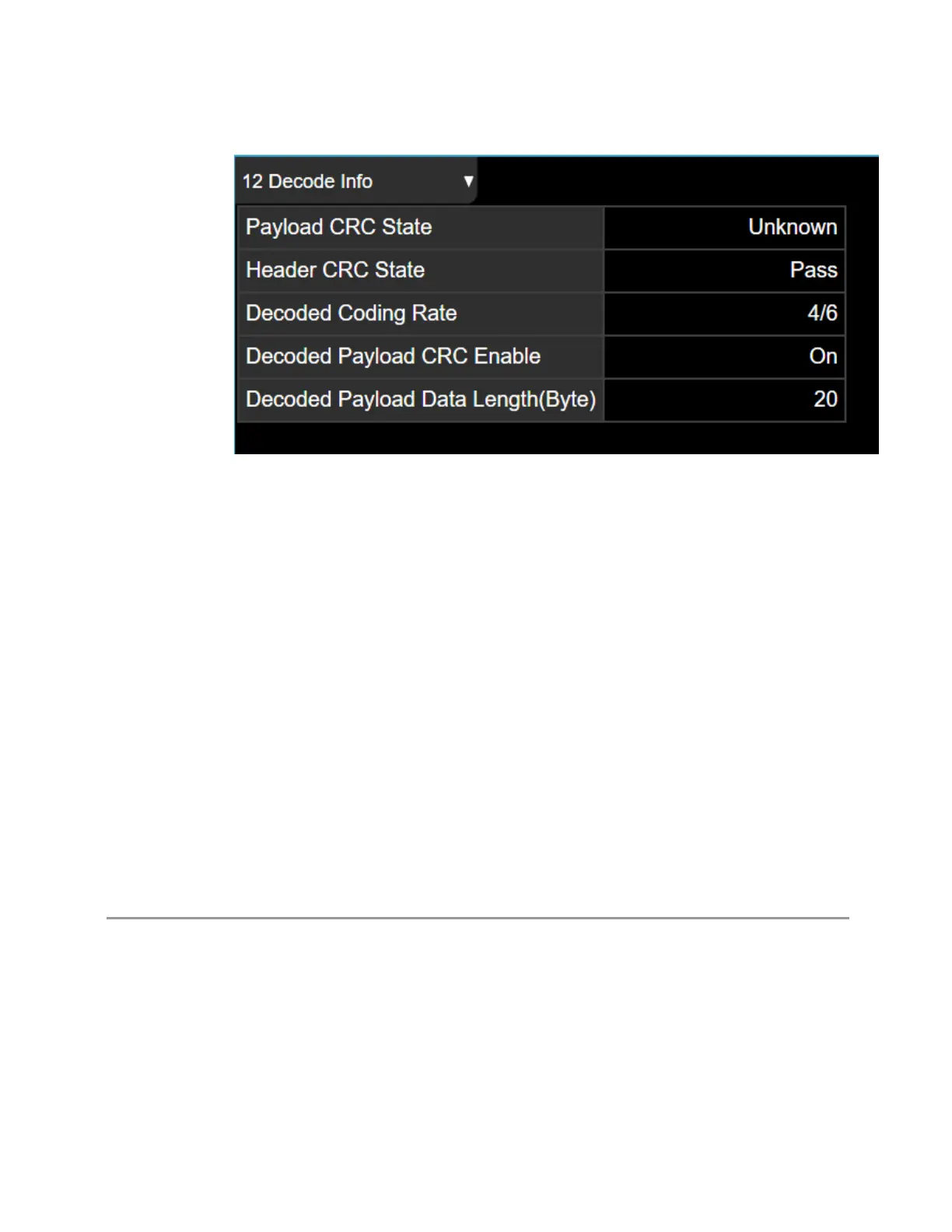

For the metrics window, this control does not exist.
Remote
Command
:DISPlay:LORA:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <amptd>
:DISPlay:LORA:WINDow[1]:TRACe:Y[:SCALe]:RLEVel?
The windows are numbered as follows:
RF Spectrum: 1
Demod Waveform: 2
AF Spectrum: 3
RF Envelope: 4
Short Range Comms & IoT Mode User's &Programmer's Reference 325
