3.8 SEM Measurement

View/Blank

Lets you set the state of the two trace variables: Update and Display. The choices

available in this dropdown menu are:

Active Update and Display both ON

View Update OFF; Display ON

Blank Update OFF; Display OFF

Background Update ON, Display OFF

Allows a trace to be blanked and continue to update “in the background”, which

was not possible in the past

In the Swept SA measurement, a trace with DisplayOFF is indicated by a

strikethrough of the type letter in the trace annotation panel in the Measurement

Bar. A trace with UpdateOFF is indicated by dimming the type letter in the trace

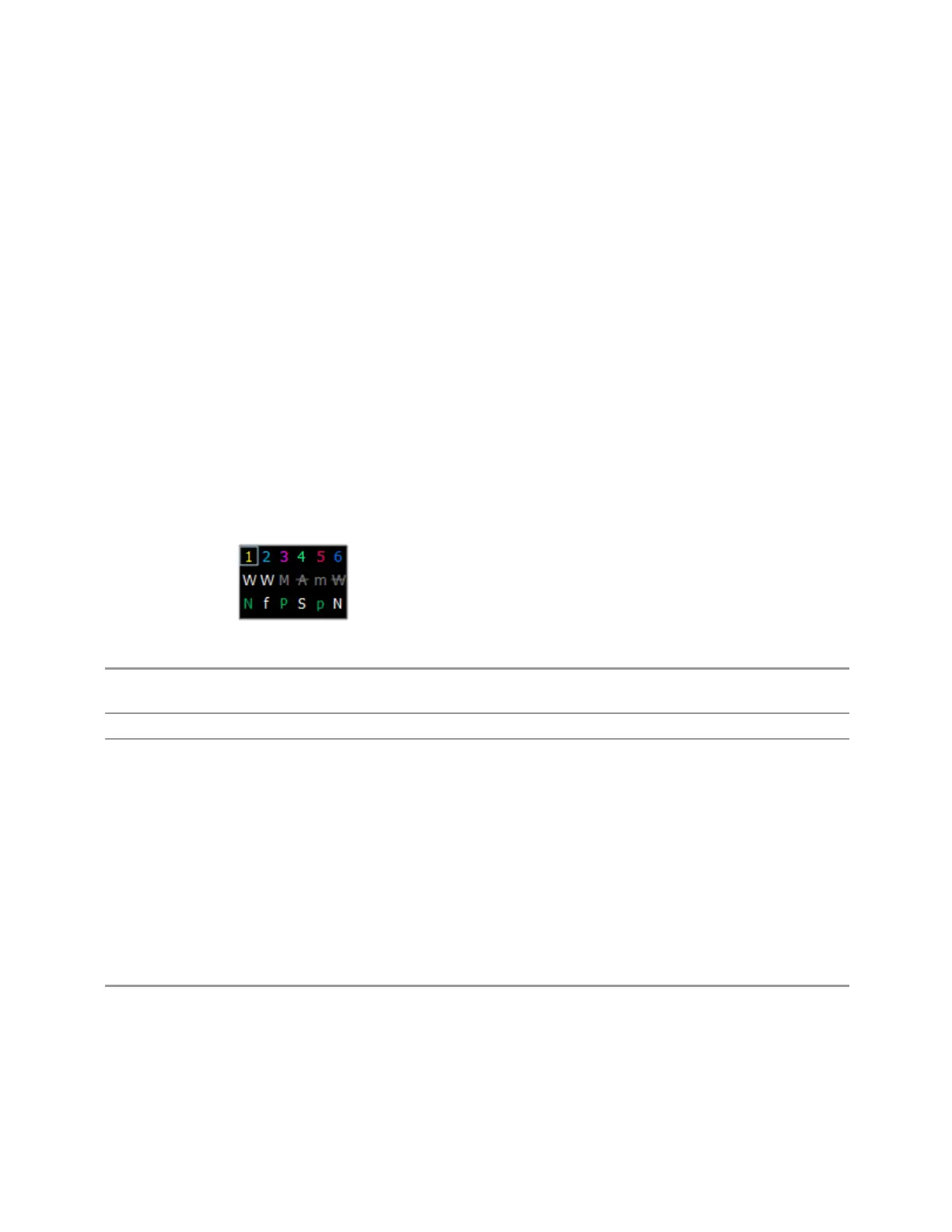

annotation panel in the Measurement Bar. In the example below, Traces 3, 4, 5 and

6 have UpdateOFF, and Traces 4 and 6 have DisplayOFF.

See: "More Information" on page 1204

Notes For the commands to control the two variables, Update and Display, see "Trace Update State On/Off"

on page 1202 and "Trace Display State On/Off" on page 1203 below

Dependencies When Signal ID is on, this key is grayed-out

Couplings Selecting a Trace Type for a trace (pressing the key or sending the equivalent command) puts the

trace in Active (Update ON and Display ON), even if that trace type was already selected

Selecting a detector for a trace (pressing the key or sending [:SENS]:DET:TRAC) puts the trace in

Active (UpdateON and DisplayON), even if that detector was already selected

Selecting a "Math Function" on page 1498 other than OFF for a trace (pressing the key or sending the

equivalent command) puts the trace in Active (UpdateON and DisplayON), even if that Math Mode was

already selected

Loading a trace from a file puts that trace in View regardless of the state it was in when it was saved;

as does being the target of a Copy or a participant in an Exchange

Trace Update State On/Off

Remote

Command

For Swept SA Measurement (in SA Mode):

:TRACe[1]|2|…|6:UPDate[:STATe] ON | OFF | 1 | 0

:TRACe[1]|2|…|6:UPDate[:STATe]?

For all other measurements:
