9 Programming the Instrument

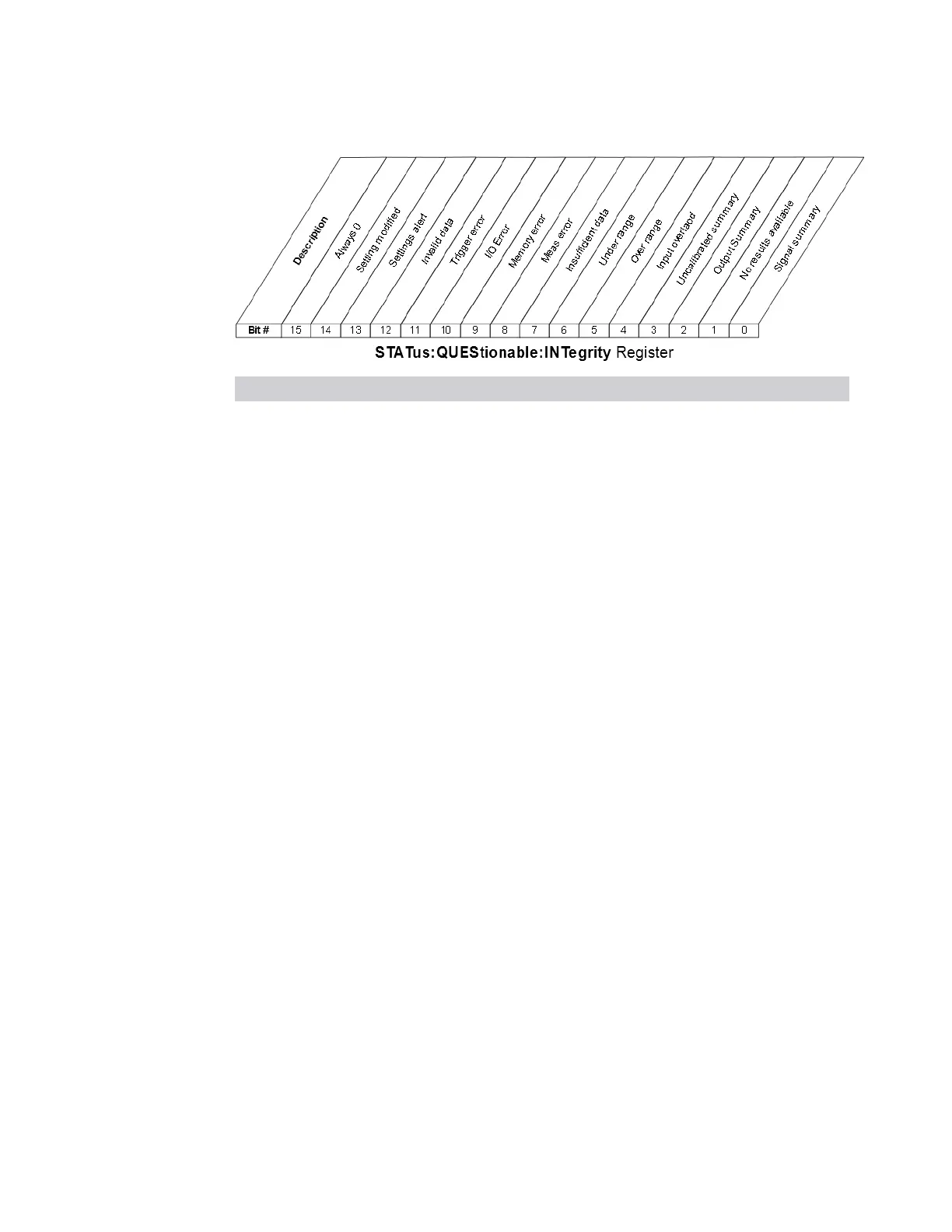

9.4 Status Register System & STATus Subsystem

Bit Condition Operation

0 Signal Summary The summary bit for the "Questionable Integrity Signal Register" on

page 2501

1 No Result The current measurement is incompatible with a setting or

combination of settings, such as the selected Input, Radio Standard,

etc.

2 Output Summary The summary bit for the "Questionable Integrity Output Register" on

page 2504

3 Uncalibrated

Summary

The summary bit for the "Questionable Integrity Uncalibrated

4 Input Overload A signal overload condition exists

5 Over Range The signal at the input for this measurementis too high. You should

increase the attenuation or decreasethe signal level

6 Under Range The signal at the input for this measurement is too low. You should

decrease the attenuation or increasethe signal level

7 Insufficient Data Signal or settings conditions did not allow enough data to be taken

during an acquisition for a valid measurement

8 Meas Error (not currently in use)

9 Memory Error There is not enough memory to perform the desired operation

10 I/O Error I/O settings are preventing communication with an instrument or

peripheral

11 Trigger Error Signal or settings conditions did not allow enough data to be taken

during an acquisition for a valid measurement

12 Invalid data The Invalid Data indicator (* in upper right of display) is on, indicating

that onscreen data may be stale and not match the current settings

13 Settings Alert Settings are not right for a valid measurement, but the instrument is

nonetheless allowing a measurement to be taken

14 Setting Modified Settings are not right for a valid measurement, and the instrument is

using different settings than the ones you entered in order to take a

measurement

Filter Registers
