3 Short-Range Comms & IoT Mode
3.3 LoRa (CSS) Demodulation Measurement
will be performed on the truncated part based on the point number set by the
demod waveform time under Sweep -> Sweep/Control.
Four traces are provided by this window. See the following table.
Trace Name Color Note
Demod
trace
Yellow Represents the instantaneous demodulated signal.
Max-hold
demod trace
Cyan This trace is only displayed when averaging is on.
Each of the points represents the max-hold value of the
demodulated signal at the corresponding point. The trace is
deleted after a restart.
Min-hold
demod trace
Magenta This trace is only displayed when averaging is on.
Each of the points represents the min-hold value of the
demodulated signal at the corresponding point. The trace is
deleted after a restart.
Average
demod trace
Green This trace is only displayed when averaging is on.
Each of the points represents the averaged value of the
demodulated signal at the corresponding point. The trace is
deleted after a restart.
The sweep time is displayed at the bottom of the window. The reference value and
the value of scale/div are displayedon the grid.

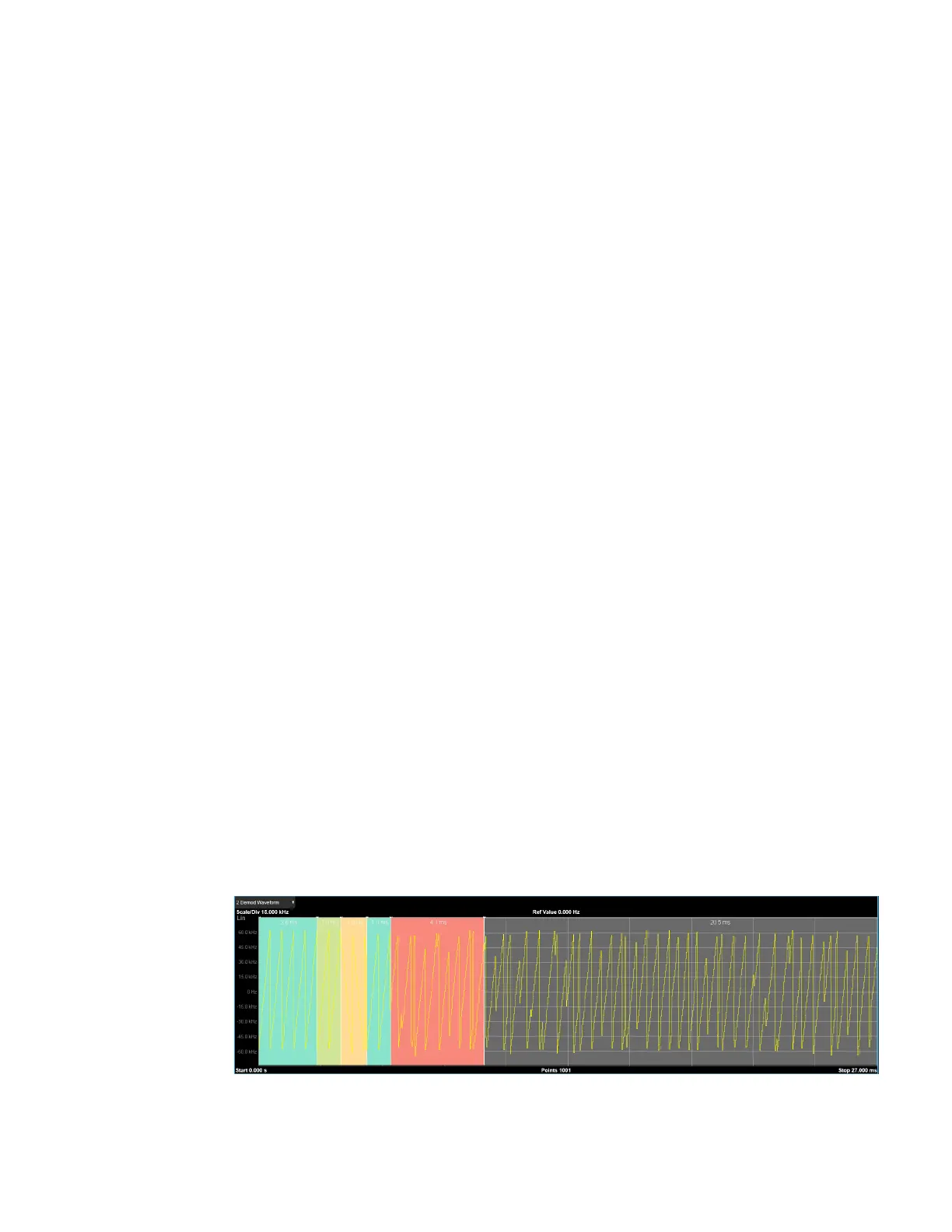

The trace will be highlighted with colored bars to schematically illustrate the type of
chirps when the synchronization succeeds.
Legend:
Cyan: programed preamble symbols/ fine sync symbols.
Green: custom sync symbols.
Gold: inversed preamble symbols.
Red: header symbols.
Light Gray: payload symbols.
Short Range Comms & IoT Mode User's &Programmer's Reference 317
