R01UH0823EJ0100 Rev.1.00 Page 1024 of 1823

Jul 31, 2019

RX23W Group 33. Serial Communications Interface (SCIg, SCIh)

Figure 33.9 shows an example of data transmission when the SCI is set to asynchronous mode according to the flow

described in

Figure 33.8 after a reset. When the pin function is set to the TXD pin, it is still high-impedance because the

SCR.TE bit is 0. When the transmit data is written after setting the TE bit to 1, a data transmission starts. After the TE bit

is set to 1, one frame of high is output from TXD pin (internal wait time) and then the data transmission starts.

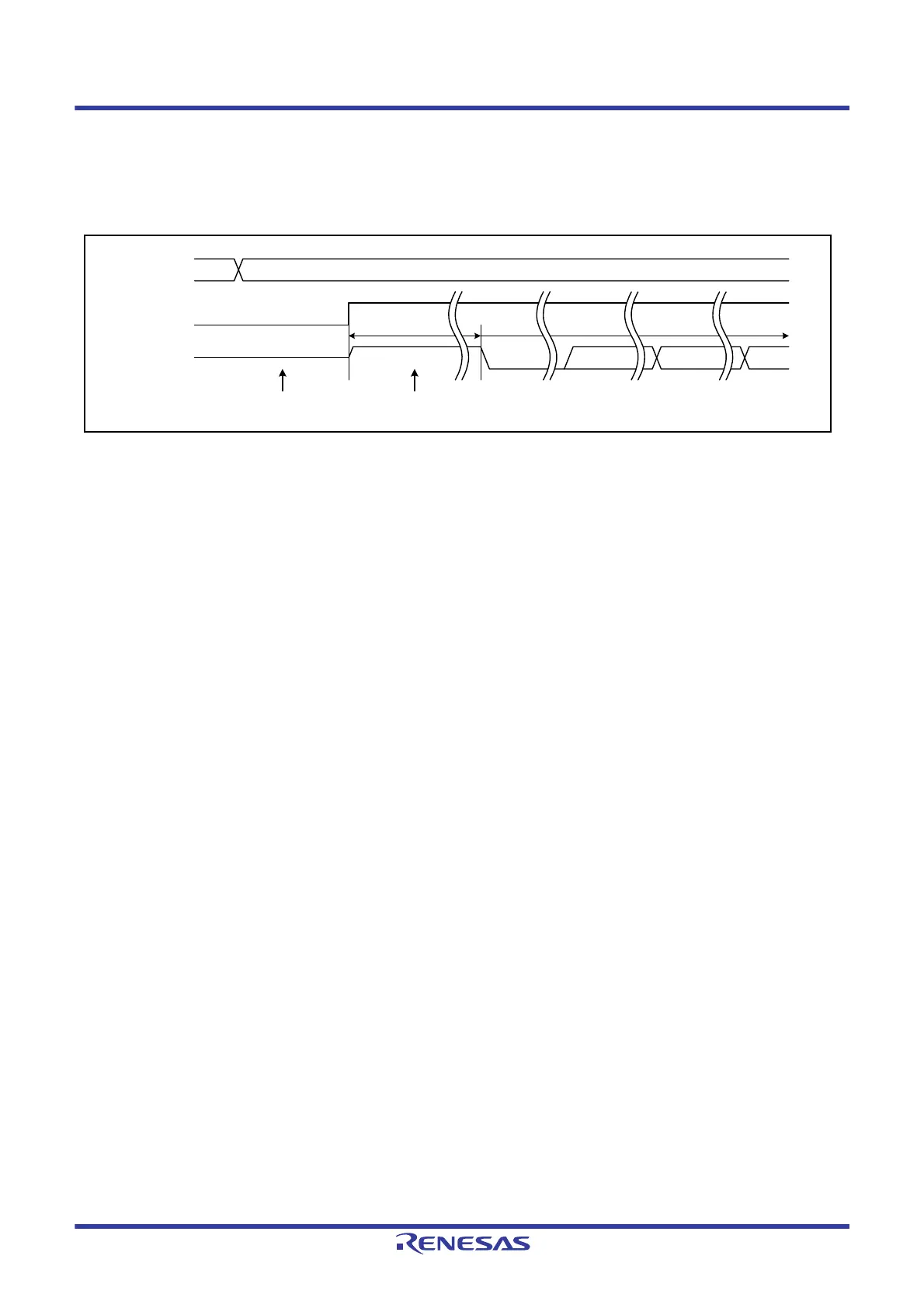

Figure 33.9 Example of Data Transmission Timing in Asynchronous Mode

Asynchronous modeMode

SCR.TE bit

TXD pin

Hi-Z

D0 D2D10

Wait time Data transmission

Transmit data is writtenPin function is set
