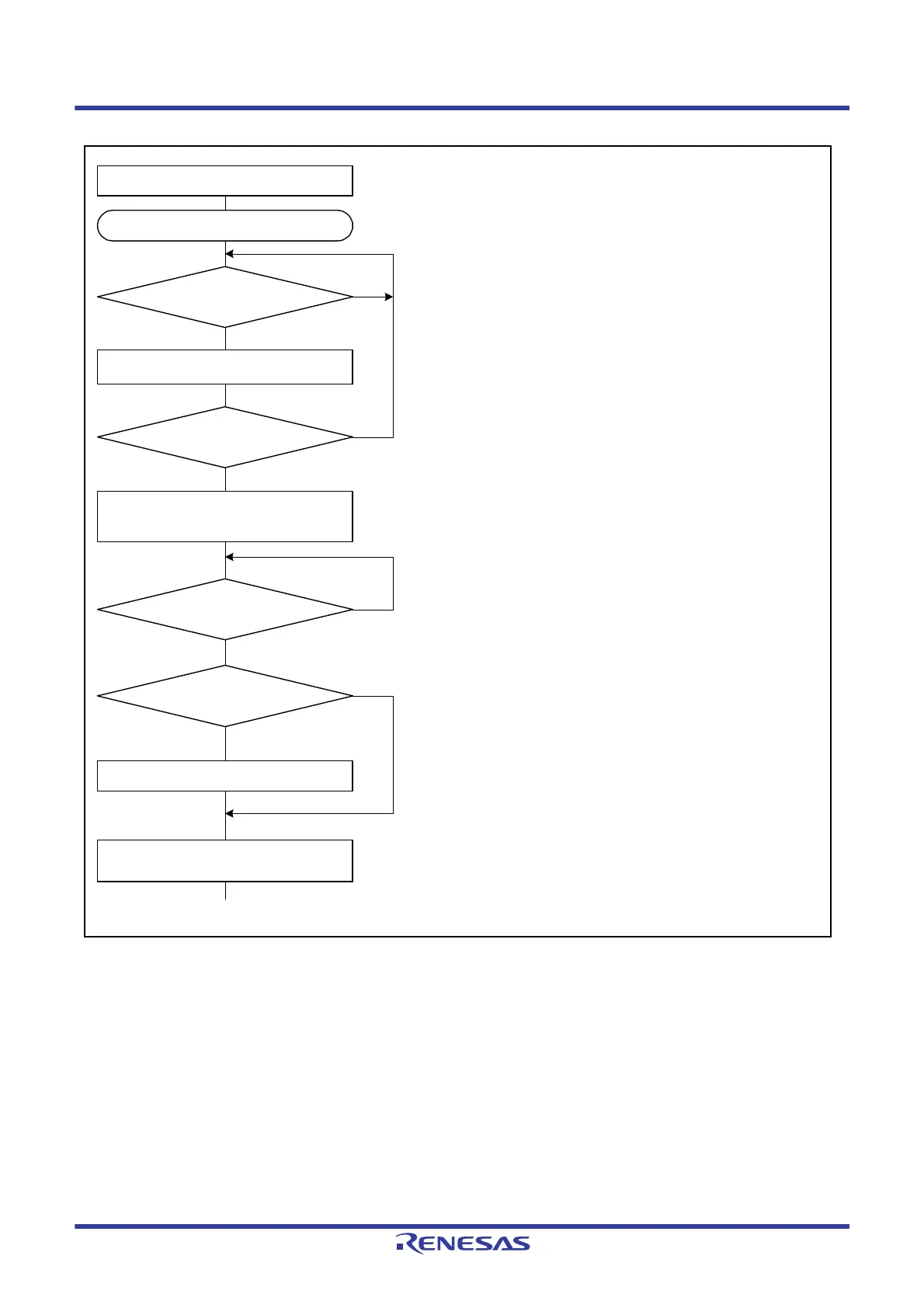

Initialization
Start data transmission
[ 1 ]
[ 2 ]
No
End
Yes
Write transmit data to TDR
No
Yes
No
Yes
No
Yes
Set the I/O port functions
Set bits SCR.TIE, TE, and TEIE to 0
TXI interrupt
All transmit data written?
TEI interrupt
Break output
[ 4 ]
[ 3 ]
Set the SCR.TIE bit to 0 and set the
SCR.TEIE bit to 1
Note: The TDR register becomes the TDRH and TDRL registers
when 9-bit data length is selected. Write data in the order from
TDRH to TDRL.
[ 1 ] SCI initialization:
Set data transmission.
After the TE bit in SCR is set to 1, high is output for a frame,
and transmission is enabled.
[ 2 ] Transmit data write to TDR by a TXI interrupt request:
When transmit data is transferred from TDR to TSR, a transmit
data empty interrupt (TXI) request is generated.
Write transmit data to TDR once in the TXI interrupt handling
routine.
[ 3 ] Serial transmission continuation procedure:
To continue serial transmission, write transmit data to TDR
once using a TXI interrupt request.
Transmit data can also be written to TDR by activating the
DMAC or DTC.
When TEI interrupt requests are in use, set the SCR.TIE bit to 0
and the SCR.TEIE bit to 1 after the last of the data to be
transmitted are written to the TDR
[ 4 ] Break output at the end of serial transmission:
To output a break in serial transmission, set the I/O port
function corresponding to the TXDn pin (corresponding to
output of the low level), and after switching the TXDn pin to the
general I/O port function, set the TE bit in the SCR to 0.
