R01UH0823EJ0100 Rev.1.00 Page 1776 of 1823

Jul 31, 2019

RX23W Group 51. Electrical Characteristics

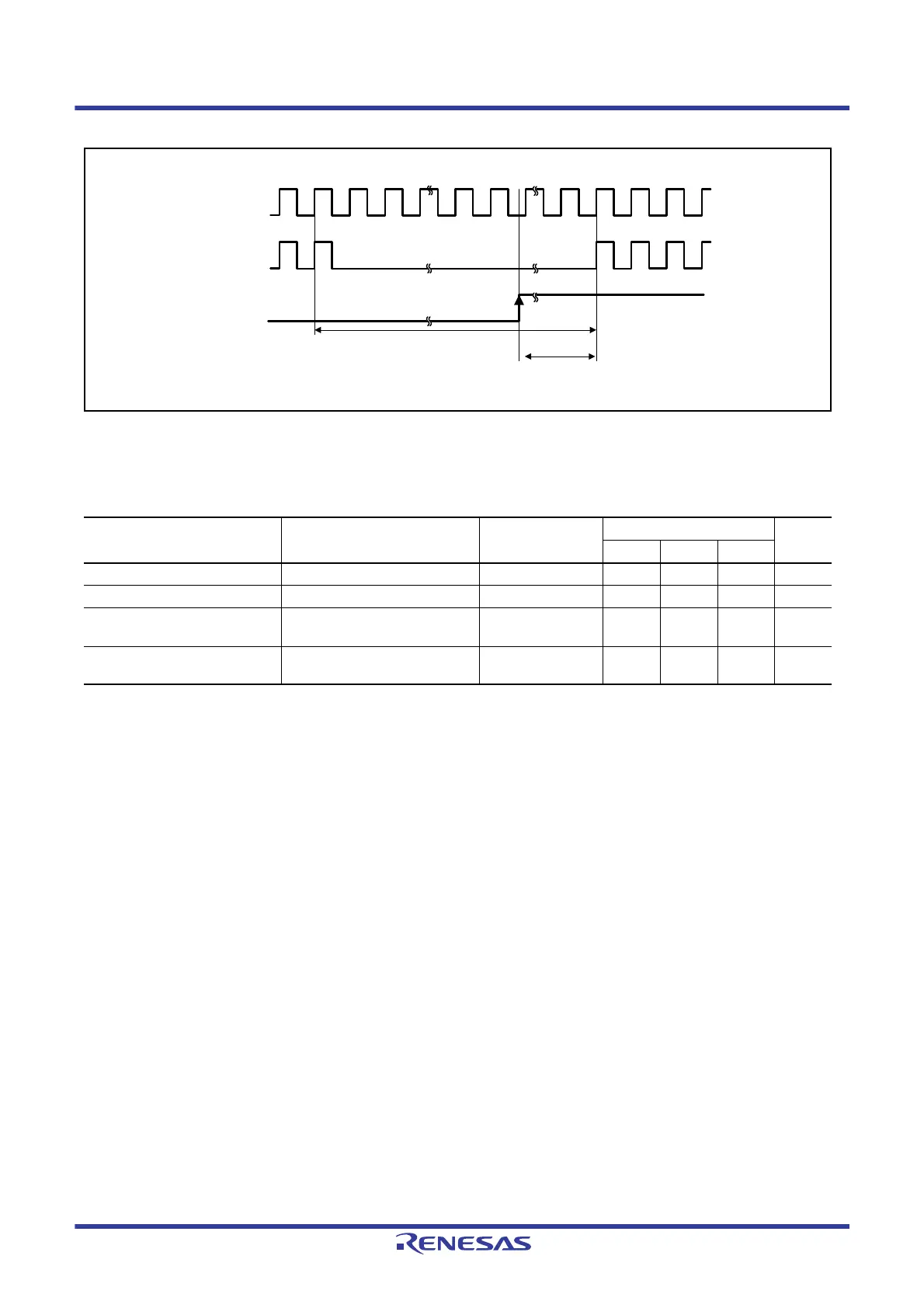

Figure 51.31 Deep Sleep Mode Recovery Timing

Note: Values when the frequencies of PCLKA, PCLKB, PCLKD, and FCLK, are not divided.

Table 51.30 Operating Mode Transition Time

Conditions: 1.8 V ≤ VCC = VCC_USB = AVCC0 = VCC_RF = AVCC_RF ≤ 3.6 V, VSS = AVSS0 = VSS_USB = VSS_RF = 0 V,

= –40 to +85°C

Mode before Transition Mode after Transition ICLK Frequency

Transition Time

Unit

Min. Typ. Max.

High-speed operating mode Middle-speed operating modes 8 MHz — 10 — μs

Middle-speed operating modes High-speed operating mode 8 MHz — 37.5 —μs

Low-speed operating mode Middle-speed operating mode,

high-speed operating mode

32.768 kHz — 215 — μs

Middle-speed operating mode,

high-speed operating mode

Low-speed operating mode 32.768 kHz — 185 — μs

Oscillator

ICLK

IRQ

Deep sleep mode

DSLP
