RX23W Group 19. Data Transfer Controller (DTCa)

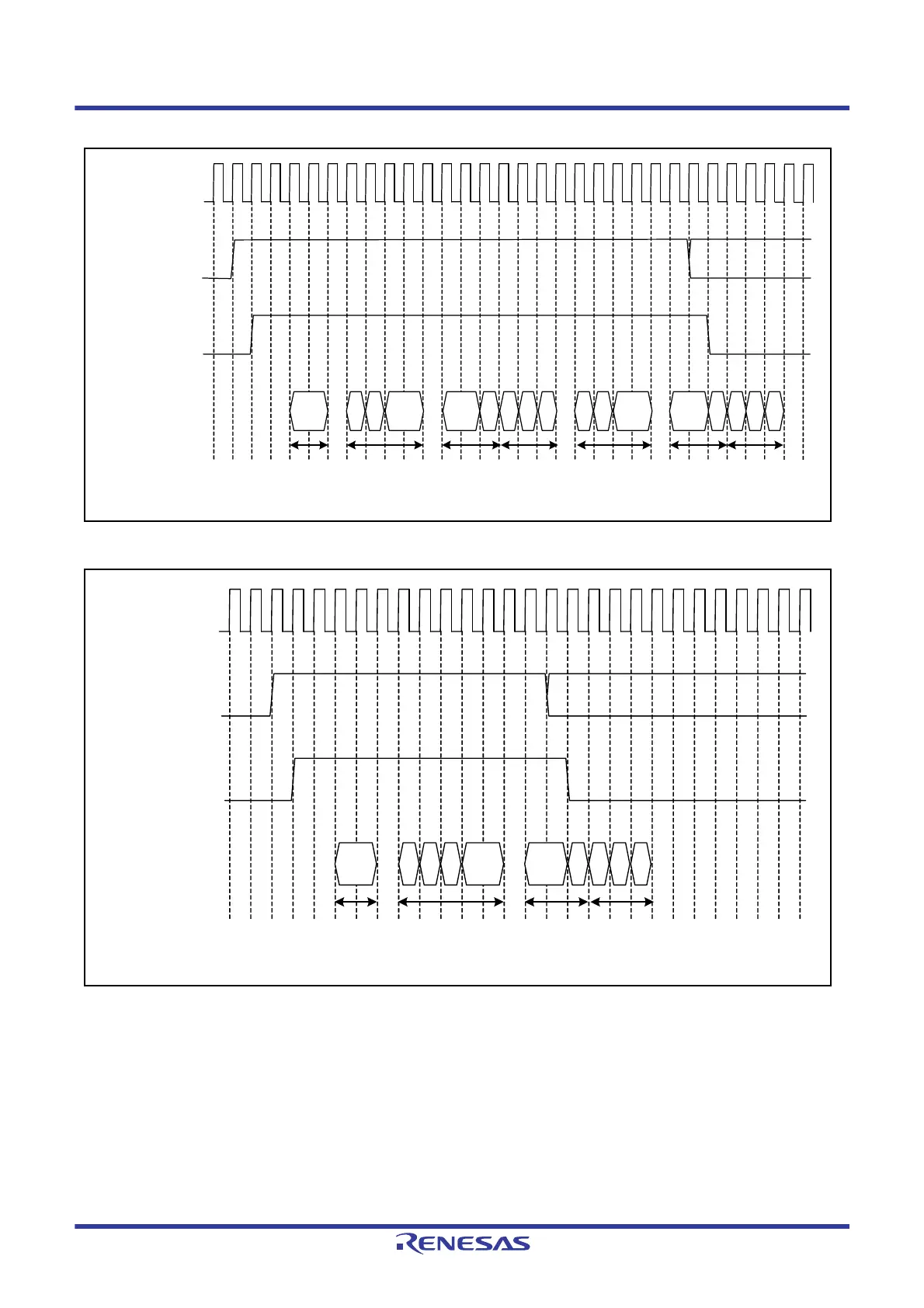

Figure 19.11 Example (3) of DTC Operation Timing (Short-Address Mode, Chain Transfer)

Figure 19.12 Example (4) of DTC Operation Timing

(Full-Address Mode, Normal Transfer Mode, Repeat Transfer Mode)

System clock

DTC access

Vector read

Transfer

information read

Data

transfer

Transfer

information

write

Transfer

information

read

Data

transfer

Transfer

information

write

R W R W

ICU.IRn

DTC transfer request

n = Vector number

System clock

DTC access

Vector read

Transfer

information read

Data

transfer

Transfer

information write

R W

ICU.IRn

DTC transfer request

n = Vector number
