R01UH0823EJ0100 Rev.1.00 Page 434 of 1823

Jul 31, 2019

RX23W Group 21. I/O Ports

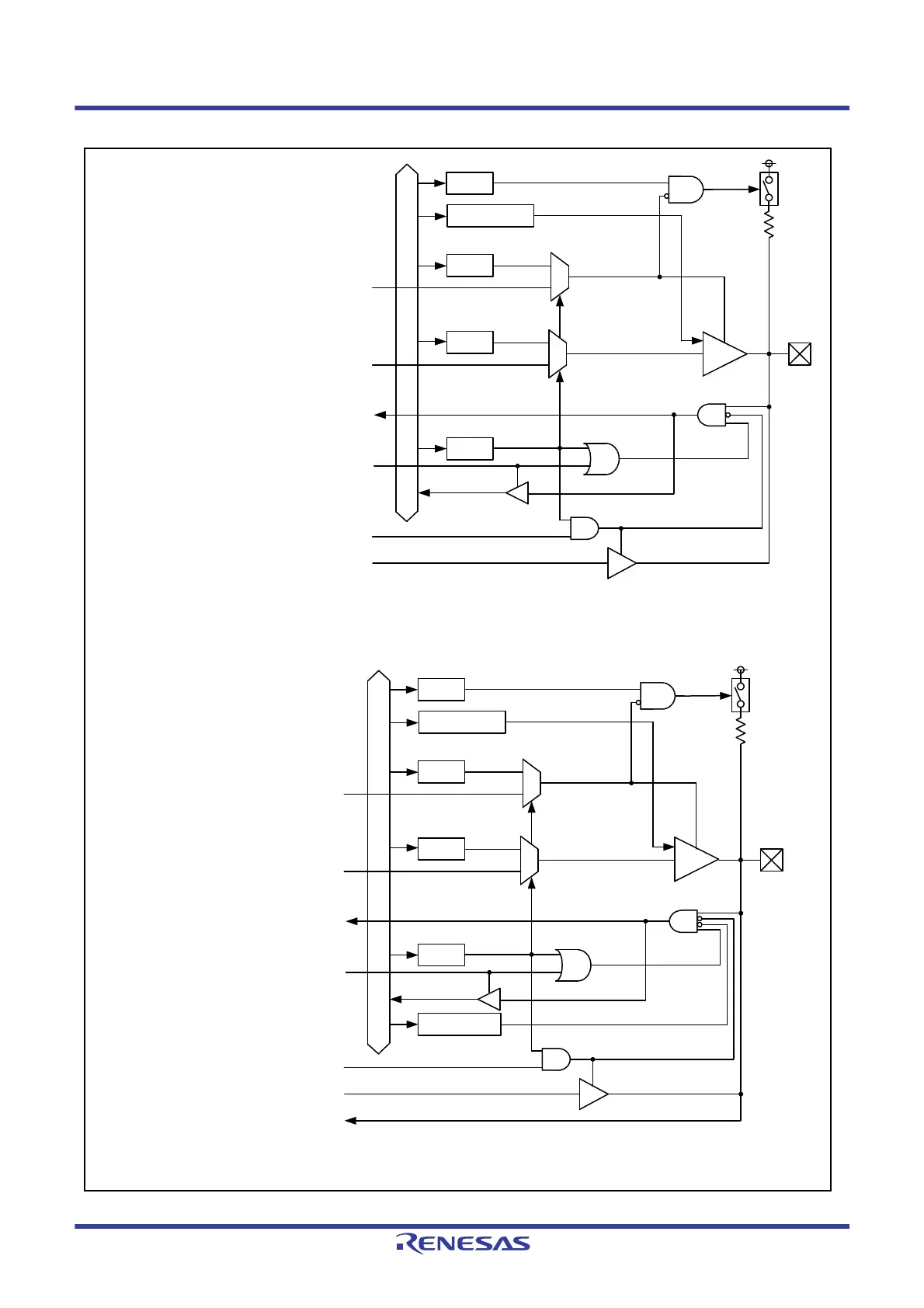

Figure 21.3 I/O Port Configuration (3)

Port 2: P21, P22, P25

Port C: PC0, PC2, PC3, PC5, PC6

Peripheral module output signal

Reading the port

PMR

PDR

PODR

Peripheral module output signal

Input signal of peripheral module/interrupt

PCR

1: ON

0: OFF

ODR0, ODR1

CTSU channel enable control register

Sensor drive pulse

Internal bus

Port 2: P26, P27

Peripheral module output signal

Reading the port

PMR

PDR

PODR

Peripheral module output signal

Input signal of peripheral module/interrupt

PCR

1: ON

0: OFF

ODR0, ODR1

CTSU channel enable control register

Sensor drive pulse

Note 1. Control signal for N-channel open-drain output.

Analog input

ASEL bit

Internal bus
