RX23W Group 21. I/O Ports

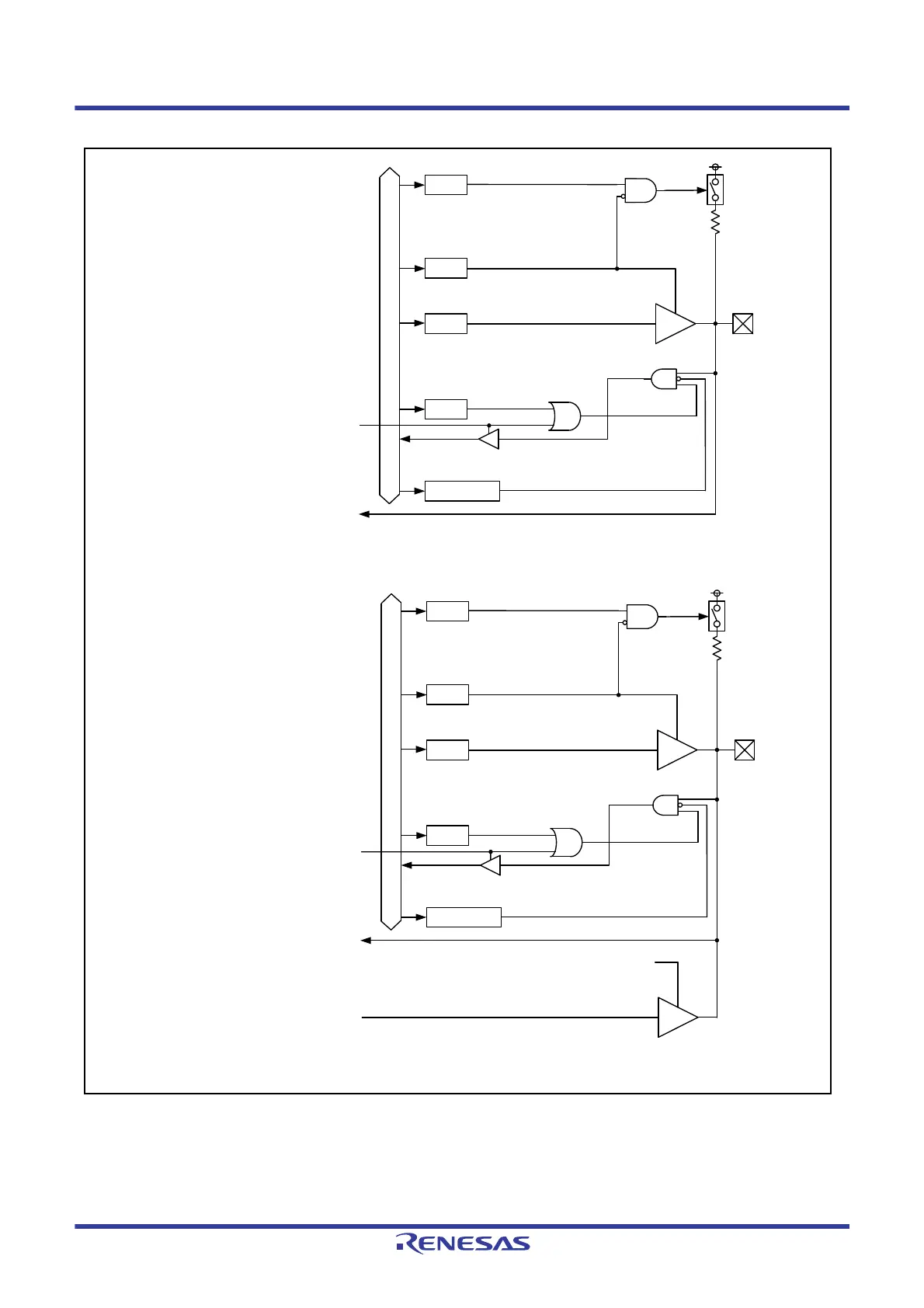

Figure 21.6 I/O Port Configuration (6)

Port 4: P40 to P46

Reading the port

PMR

PDR

PODR

Analog input

ASEL bit

1: ON

0: OFF

PCR

Internal bus

Note 1. Specify from the Bluetooth middleware.

Port 4: P47

Reading the port

PMR

PDR

PODR

Analog input

ASEL bit

1: ON

0: OFF

PCR

Internal bus

CLKOUT_RF
