R01UH0823EJ0100 Rev.1.00 Page 436 of 1823

Jul 31, 2019

RX23W Group 21. I/O Ports

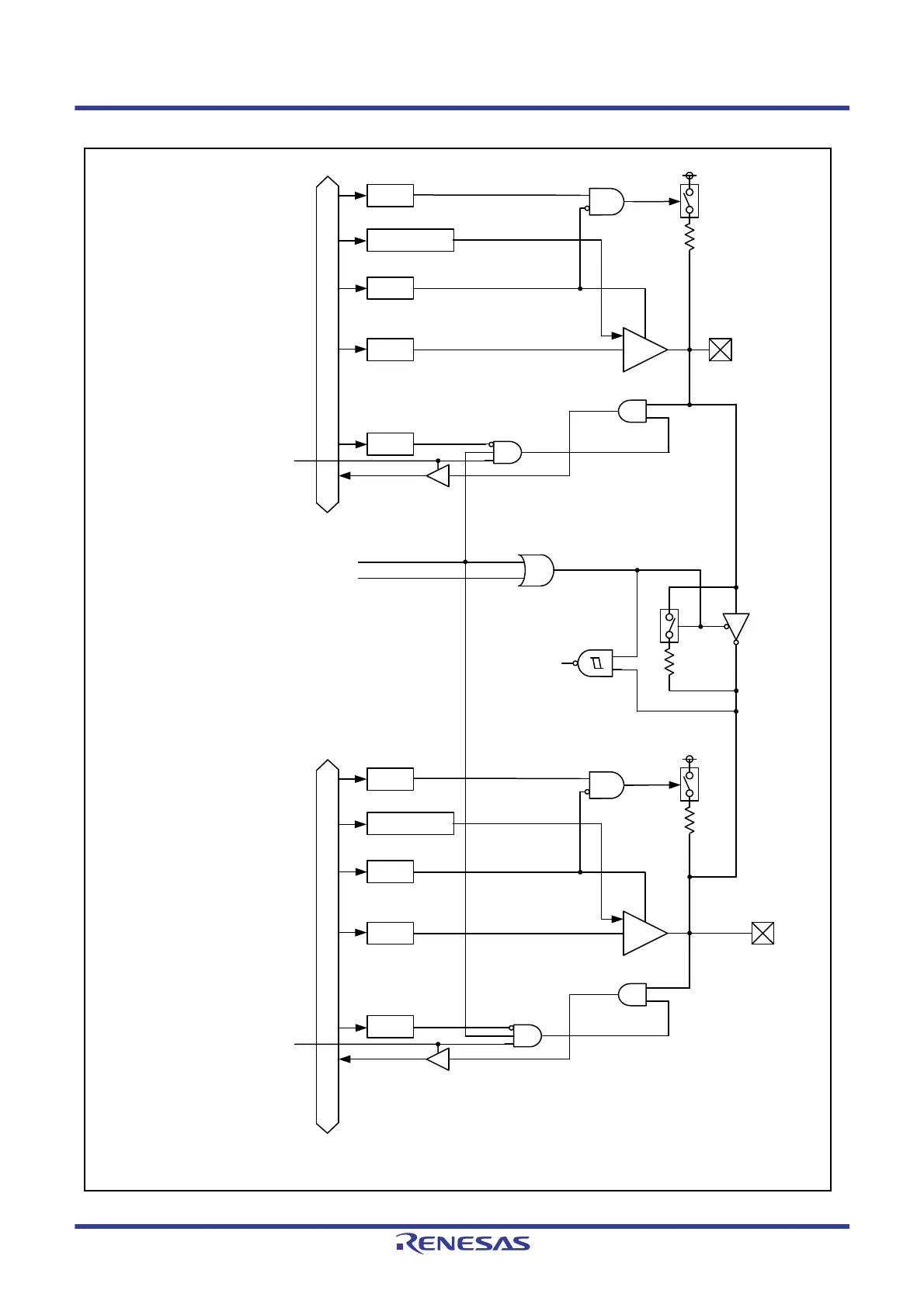

Figure 21.5 I/O Port Configuration (5)

Port 3: P36/EXTAL

Reading the port

PDR

PODR

1: ON

0: OFF

PCR

ODR0, ODR1

Port 3: P37/XTAL

Reading the port

PMR

PDR

PODR

1: ON

0: OFF

PCR

ODR0, ODR1

Note 1. Control signal for N-channel open-drain output.

Internal bus Internal bus

0: ON

1: OFF

Main clock

MOSCCR.MOSTP

MOFCR.MOSEL

PMR
