R01UH0823EJ0100 Rev.1.00 Page 524 of 1823

Jul 31, 2019

RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)

(b) Example of Input Capture Operation

Figure 23.11 shows an example of input capture operation.

In this example, both rising and falling edges have been selected as the MTIOCnA pin input capture input edge, the

falling edge has been selected as the MTIOCnB pin input capture input edge, and counter clearing by the TGRB input

capture has been designated for the TCNT counter.

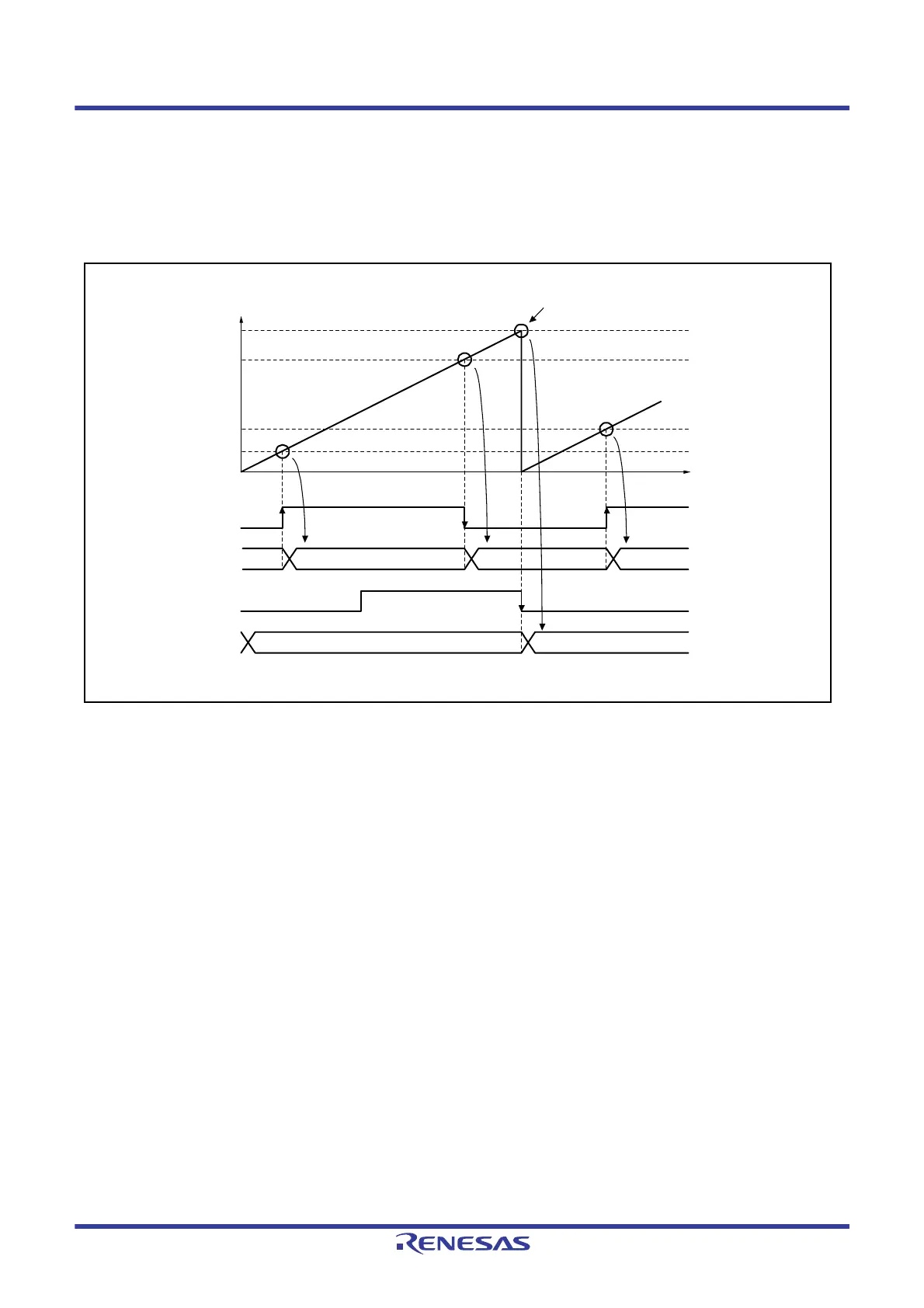

Figure 23.11 Example of Input Capture Operation

TCNT value

0180h

0000h

MTIOCnA

TGRA

Time

0010h

0005h

0160h

0005h

0160h 0010h

TGRB

0180h

MTIOCnB

Counter cleared by MTIOCB input

(falling edge)

(n = 0 to 4)
