RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)

(b) Phase Counting Mode 2

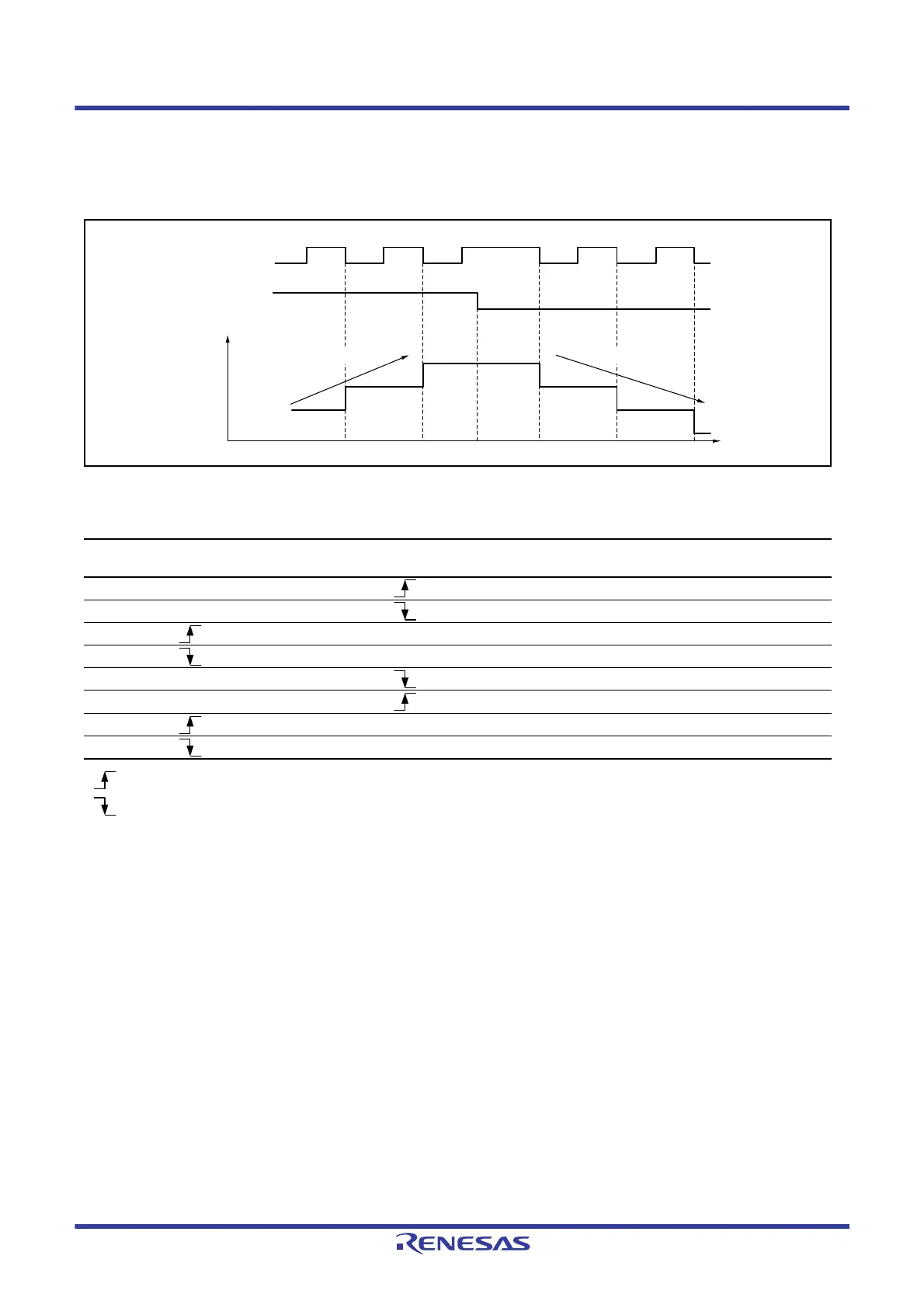

Figure 23.31 shows an example of operation in phase counting mode 2, and Table 23.46 lists the TCNT up-counting

and down-counting conditions.

Figure 23.31 Example of Operation in Phase Counting Mode 2

: Rising edge

: Falling edge

Table 23.46 Up-Counting and Down-Counting Conditions in Phase Counting Mode 2

MTCLKA (MTU1)

MTCLKC (MTU2)

MTCLKB (MTU1)

MTCLKD (MTU2) Operation

High None (Don’t care)

Low None (Don’t care)

High Up-counting

High None (Don’t care)

Low None (Don’t care)

High None (Don’t care)

Low Down-counting

Time

TCNT value

MTCLKA (MTU1)

MTCLKC (MTU2)

MTCLKB (MTU1)

MTCLKD (MTU2)

Down-countingUp-counting
