RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)

(d) Phase Counting Mode 4

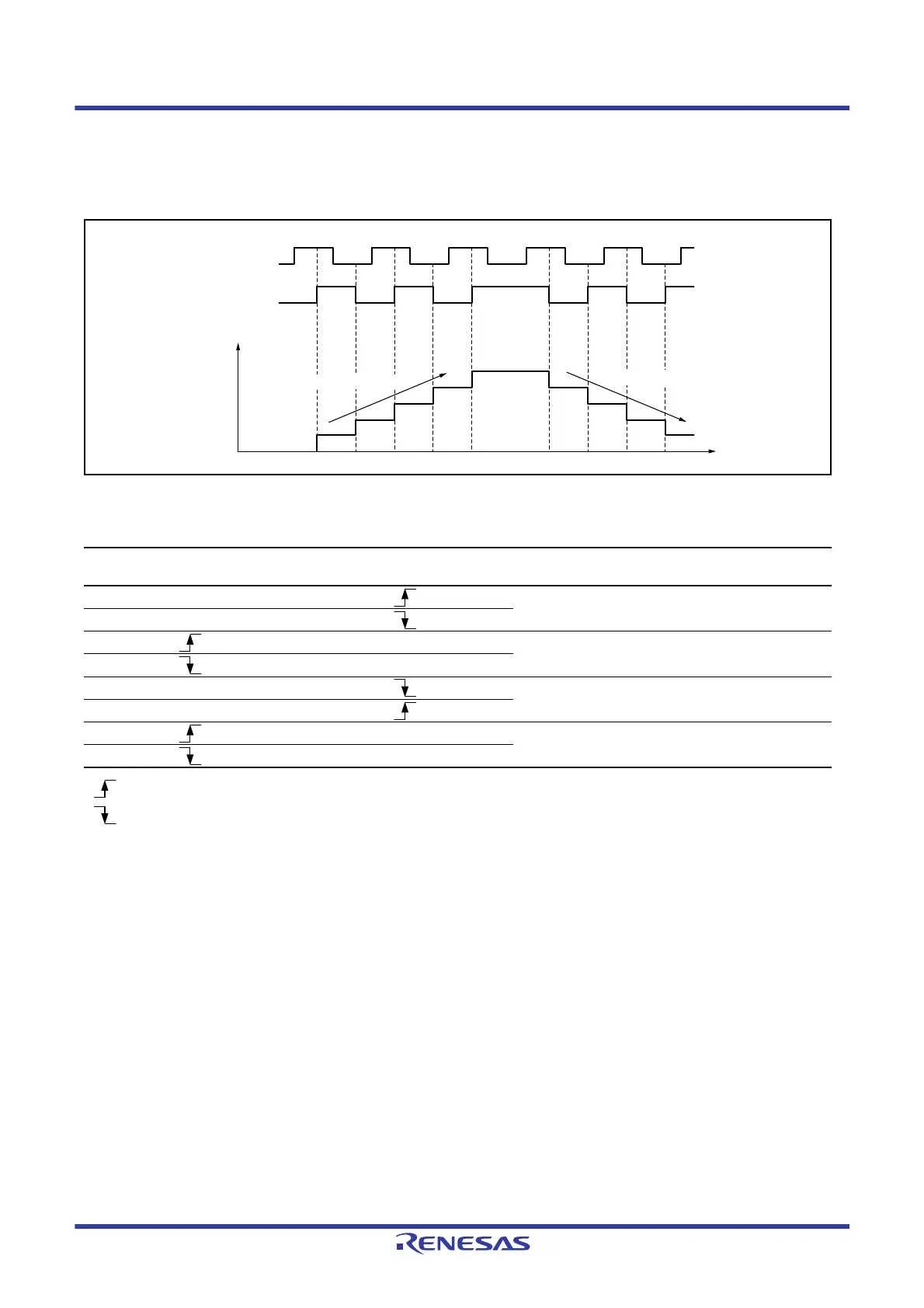

Figure 23.33 shows an example of operation in phase counting mode 4, and Table 23.48 lists the TCNT up-counting

and down-counting conditions.

Figure 23.33 Example of Operation in Phase Counting Mode 4

: Rising edge

: Falling edge

Table 23.48 Up-Counting and Down-Counting Conditions in Phase Counting Mode 4

MTCLKA (MTU1)

MTCLKC (MTU2)

MTCLKB (MTU1)

MTCLKD (MTU2) Operation

High Up-counting

Low

Low None (Don't care)

High

High Down-counting

Low

High None (Don't care)

Low

Up-counting

Down-counting

TCNT value

MTCLKA (MTU1)

MTCLKC (MTU2)

MTCLKB (MTU1)

MTCLKD (MTU2)

Time
