RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)

(m) Counter Clearing by Another Channel

In complementary PWM mode, counters MTU3.TCNT, MTU4.TCNT, and TCNTS can be cleared by another channel

source when a mode for synchronization with another channel is specified by the TSYR register and synchronous

clearing is selected with the MTU3.TCR.CCLR[2:0] bits.

Figure 23.55 illustrates an example of this operation.

Use of this function enables a counter to be cleared and restarted through an external signal.

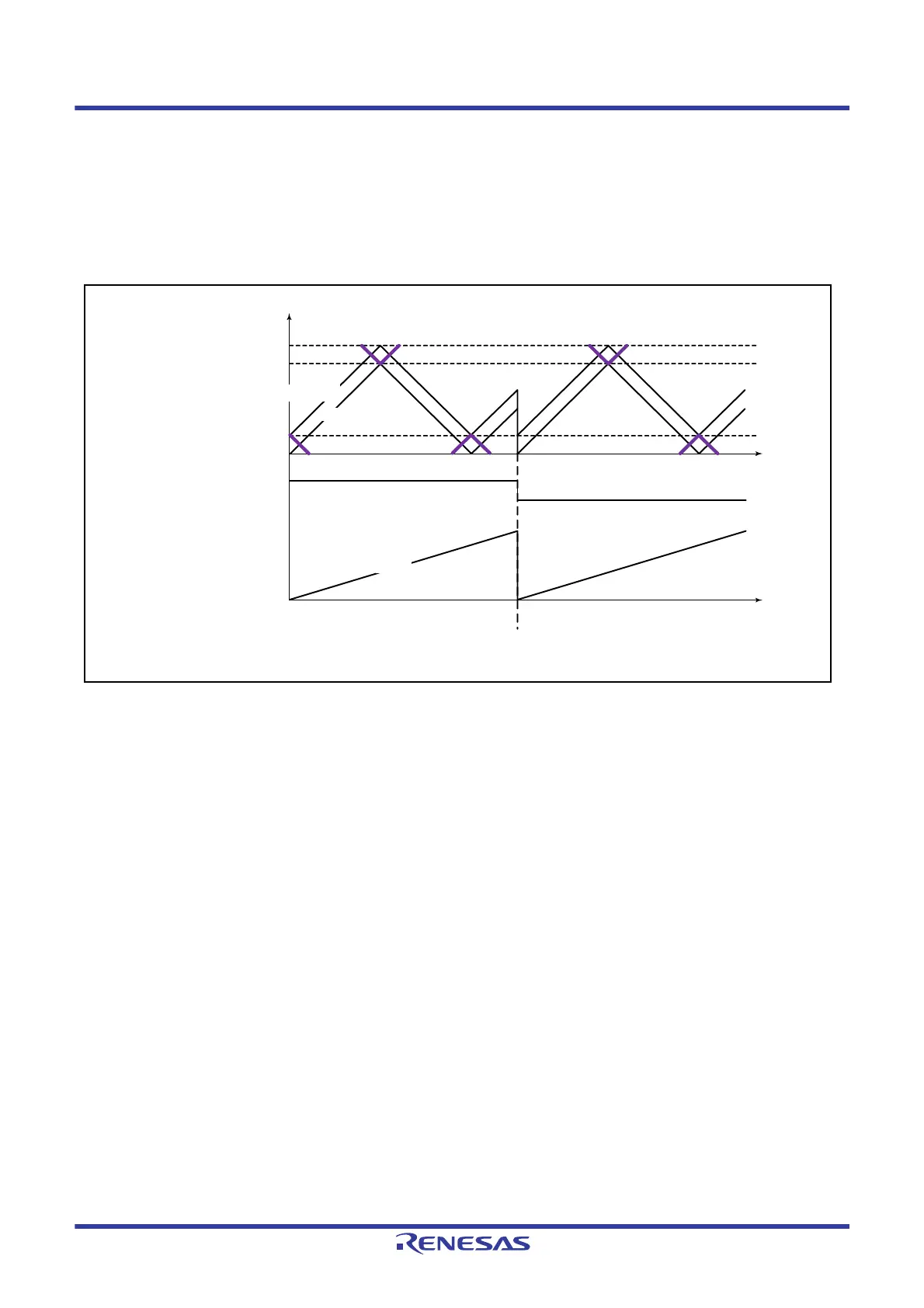

Figure 23.55 Counter Clearing Synchronized with Another Channel

MTU1.TCNT

MTU3.TCNT

MTU4.TCNT

TCNTS

Synchronous counter clearing by MTU1 input capture A

MTU3.TGRA

TCDR

TDDR

0000h

MTU1 input capture A
