R01UH0823EJ0100 Rev.1.00 Page 569 of 1823

Jul 31, 2019

RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)

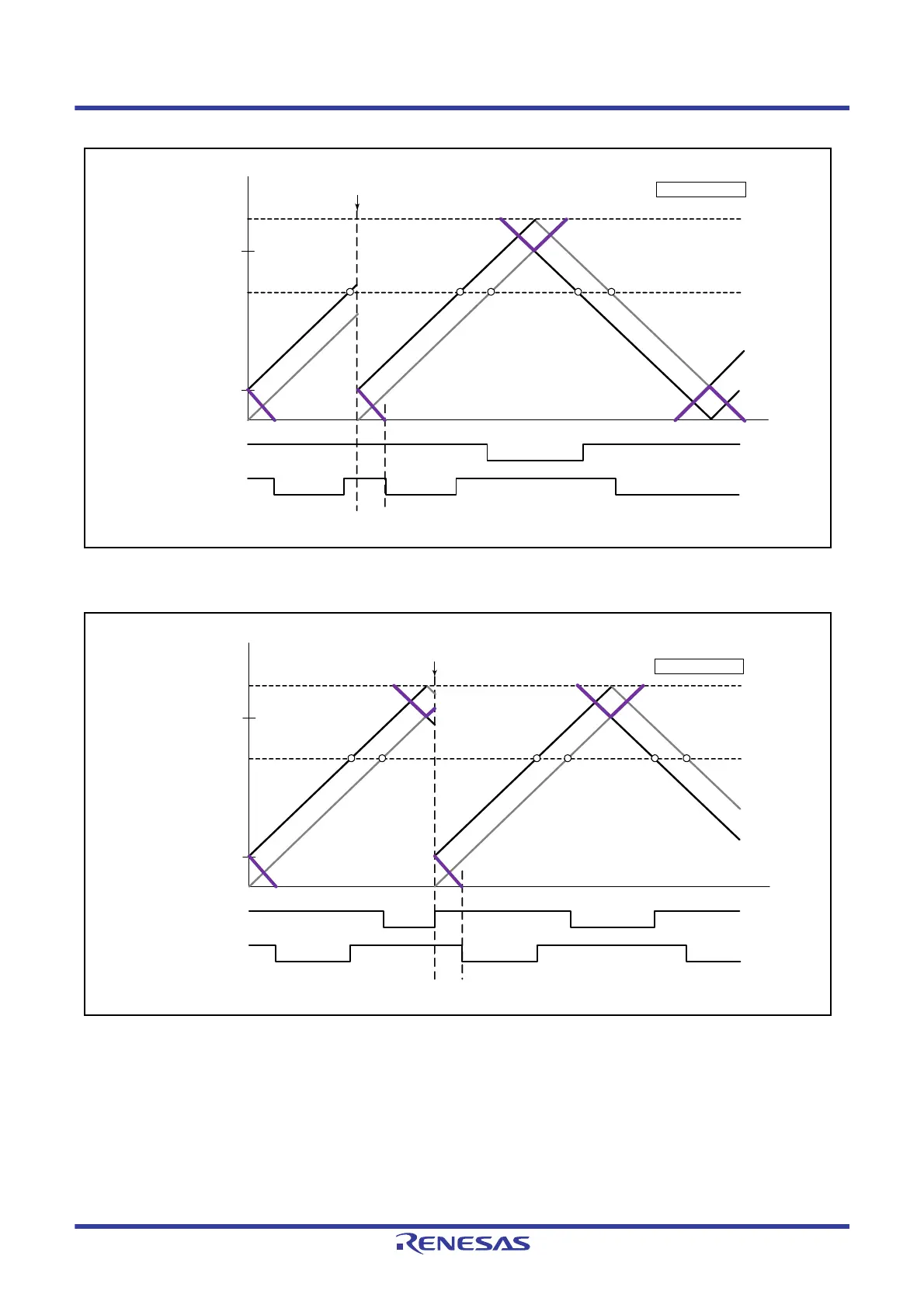

Figure 23.58 Example of Synchronous Clearing in Dead Time during Up-Counting

(Timing (3) in Figure 23.56; TWCR.WRE Bit is 1)

Figure 23.59 Example of Synchronous Clearing in Interval Tb at Crest

(Timing (6) in Figure 23.56; TWCR.WRE Bit is 1)

Output waveform is active-low.

Synchronous clearing

MTU3.TCNT

MTU4.TCNT

WRE bit = 1

MTU3.TGRA

MTU3.TGRB

TCDR

TDDR

0000h

Positive-phase

output

Negative-phase

output

Output waveform is active-low.

MTU3.TCNT

MTU4.TCNT

Synchronous clearing

WRE bit = 1

MTU3.TGRA

MTU3.TGRB

TCDR

TDDR

0000h

Positive-phase

output

Negative-phase

output
