R01UH0823EJ0100 Rev.1.00 Page 570 of 1823

Jul 31, 2019

RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)

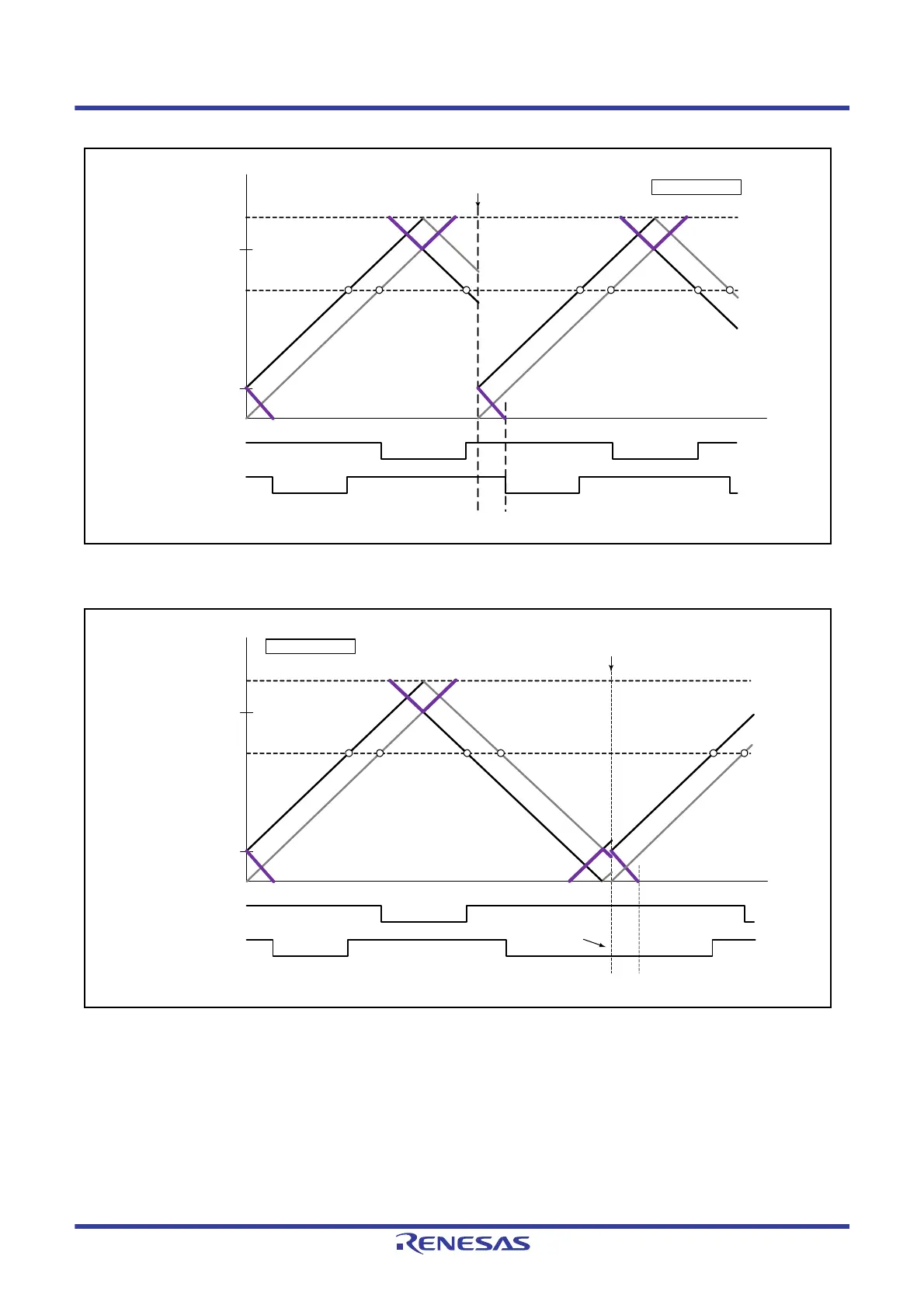

Figure 23.60 Example of Synchronous Clearing in Dead Time during Down-Counting

(Timing (8) in Figure 23.56; TWCR.WRE Bit is 1)

Figure 23.61 Example of Synchronous Clearing in Interval Tb at Trough

(Timing (11) in Figure 23.56; TWCR.WRE Bit is 1)

WRE bit = 1

Output waveform is active-low.

Synchronous clearing

MTU3.TCNT

MTU4.TCNT

MTU3.TGRA

MTU3.TGRB

TCDR

TDDR

0000h

Positive-phase

output

Negative-phase

output

Output waveform is active-low.

Synchronous clearing

Initial value output is suppressed.

MTU3.TCNT

MTU4.TCNT

WRE bit = 1

MTU3.TGRA

MTU3.TGRB

TCDR

TDDR

0000h

Positive phase

output

Negative phase

output
