RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)

(o) Counter Clearing by MTU3.TGRA Compare Match

In complementary PWM mode, counters MTU3.TCNT, MTU4.TCNT, and TCNTS can be cleared by MTU3.TGRA

compare match when the TWCR.CCE bit is set.

Figure 23.62 shows an operation example.

Note: Use this function only in complementary PWM mode 1 (transfer at crest).

Note: Do not specify synchronous clearing by another channel (do not set the TSYR.SYNCn bits (n = 0 to 4) to 1).

Note: Do not set the PWM duty cycle value to 0000h.

Note: Do not set the TOCR1.PSYE bit to 1.

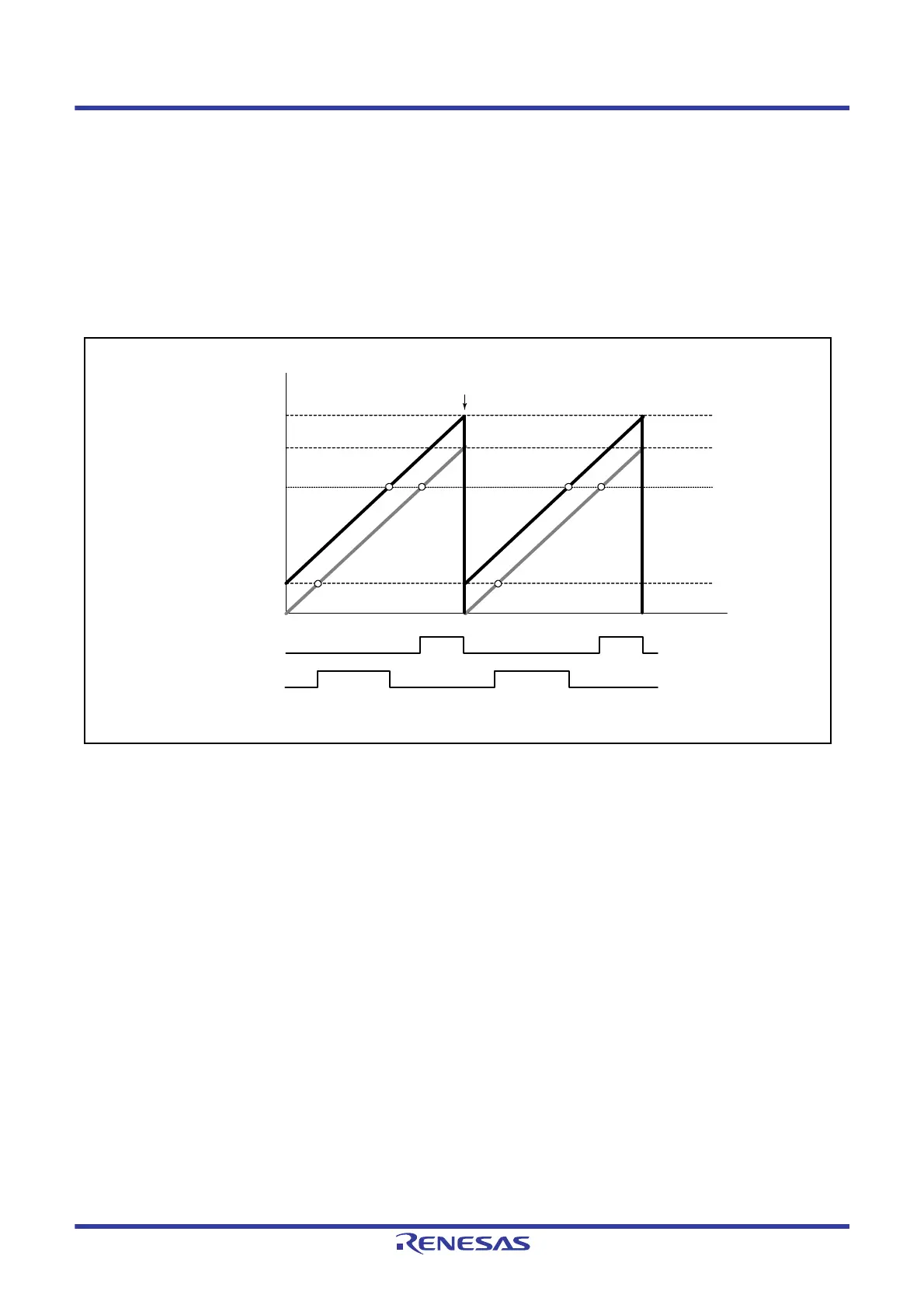

Figure 23.62 Example of Counter Clearing Operation by MTU3.TGRA Compare Match

Output waveform is active-high.

Counter cleared by

MTU3.TGRA compare match

MTU3.TGRA

MTU3.TGRB

TCDR

TDDR

0000h

Positive-phase

output

Negative-phase

output
