R01UH0823EJ0100 Rev.1.00 Page 576 of 1823

Jul 31, 2019

RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)

(b) Example of Interrupt Skipping Operation

Figure 23.69 shows an example of MTU3.TGIA interrupt skipping in which the interrupt skipping count is set to three

by the TITCR.T3ACOR[2:0] bits and the TITCR.T3AEN bit is set to 1.

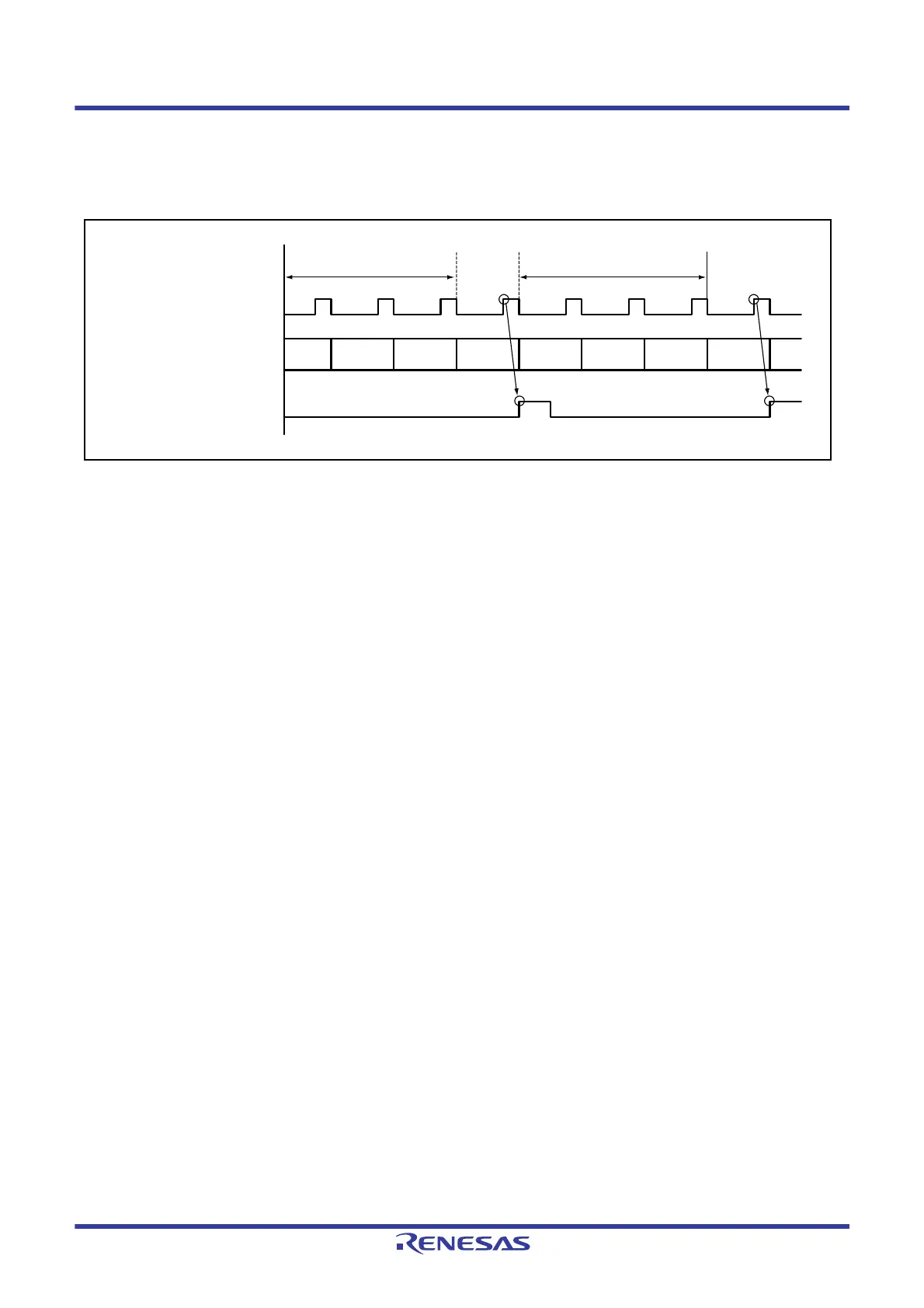

Figure 23.69 Example of Interrupt Skipping Operation

00h 01h 02h 03h 00h 01h 02h 03h

Interrupt skipping periodInterrupt skipping period

MTU3.TGRA compare match

Skipping counter

TGIA3 interrupt signal
