RX23W Group 25. 16-Bit Timer Pulse Unit (TPUa)

(b) When TPUm.TGRy is an input capture register

Figure 25.16 shows an operation example in which TPUm.TGRA has been set as an input capture register, and buffer

operation has been set for the TGRA register and TPUm.TGRC.

Counter clearing by TGRA input capture has been set for TPUm.TCNT, and both rising and falling edges have been

selected as the TIOCAn pin input capture input edge.

As buffer operation has been set, when the TCNT value is stored in TGRA upon occurrence of input capture A, the value

previously stored in TGRA is simultaneously transferred to TGRC.

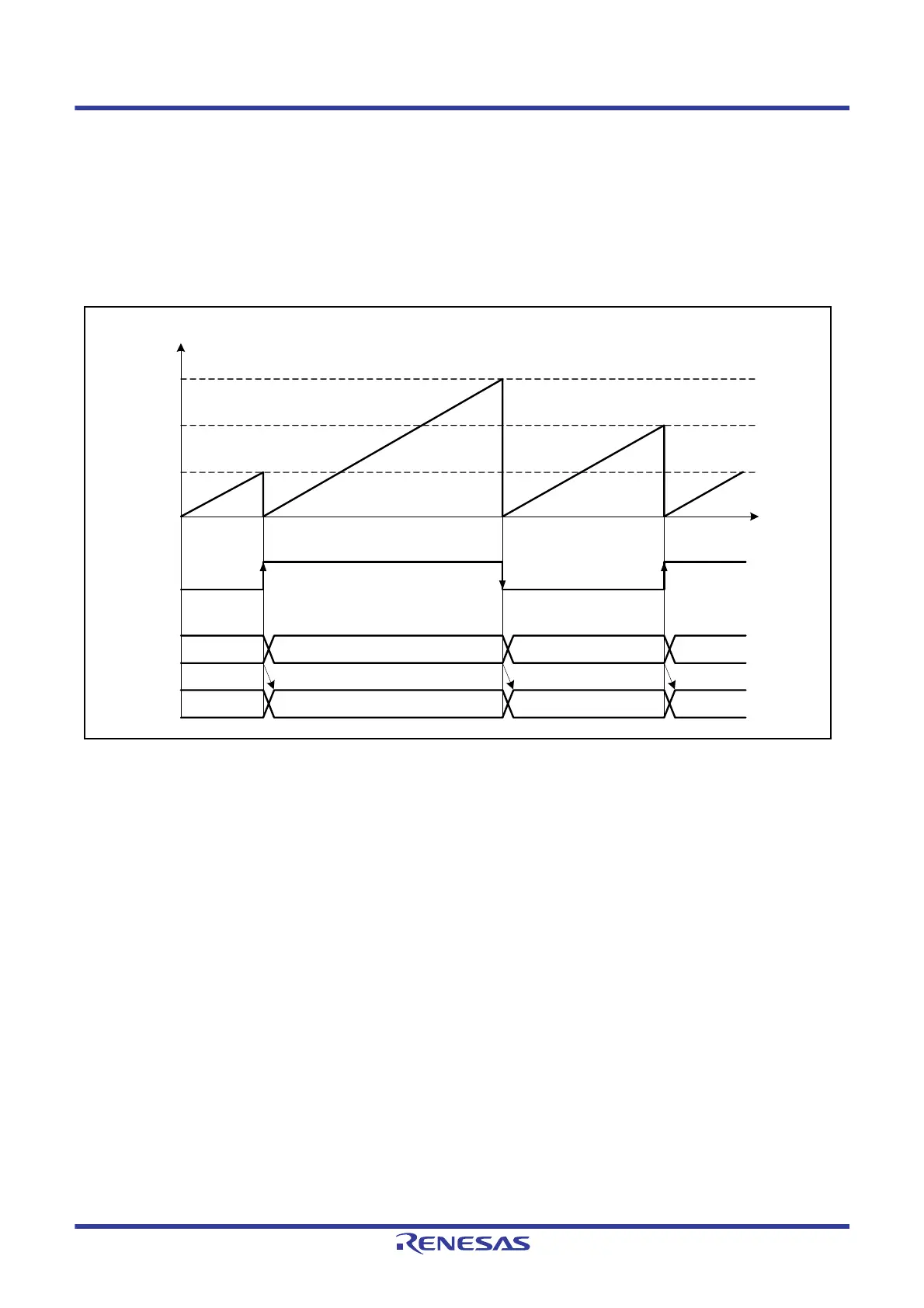

Figure 25.16 Example of Buffer Operation (2) (n = 3)

Time

0532h

0F07h0532h

0F07h

09FBh

0000h

TGRA

TCNT value

TIOCAn

TGRC

0532h

09FBh

0F07h
