RX23W Group 25. 16-Bit Timer Pulse Unit (TPUa)

(d) Phase counting mode 4

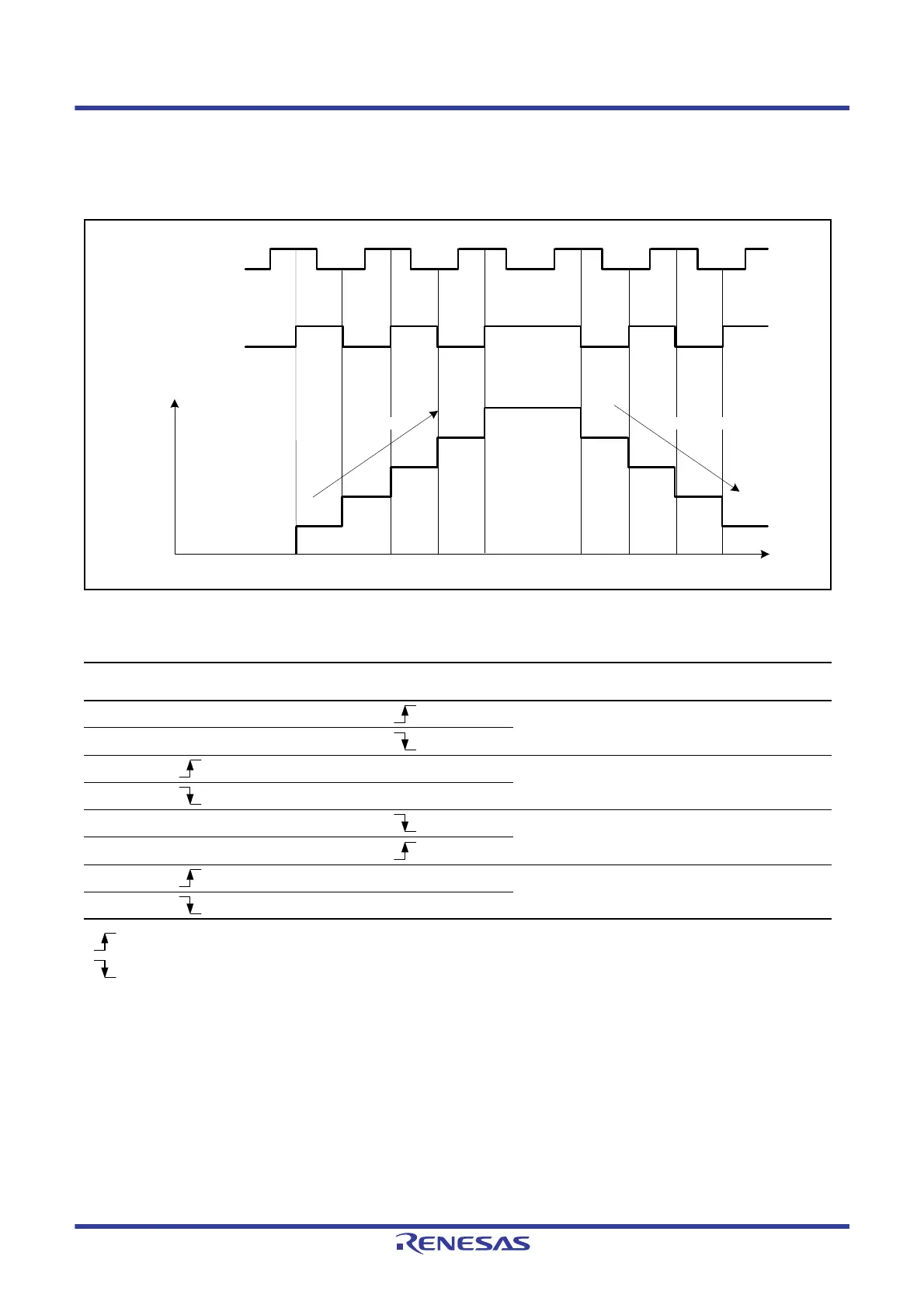

Figure 25.28 shows an example of phase counting mode 4 operation, and Table 25.27 lists the TPUm.TCNT up-/

down-count conditions.

Figure 25.28 Example of Phase Counting Mode 4 Operation

: Rising edge

: Falling edge

Table 25.27 Up-/Down-Count Conditions in Phase Counting Mode 4

TCLKA (TPU1, TPU5)

TCLKC (TPU2, TPU4)

TCLKB (TPU1, TPU5)

TCLKD (TPU2, TPU4) Operation

High Up-count

Low

Low Don’t care

High

High Down-count

Low

High Don’t care

Low

TCLKA (TPU1, TPU5)

TCLKC (TPU2, TPU4)

TCLKB (TPU1, TPU5)

TCLKD (TPU2, TPU4)

TCNT value

Time

Down-countUp-count
