R01UH0823EJ0100 Rev.1.00 Page 752 of 1823

Jul 31, 2019

RX23W Group 26. 8-Bit Timer (TMR)

Note 1. Includes switching from low to stop, and from stop to low.

Note 2. Includes switching from stop to high.

Note 3. Generated because the change of the signal levels is considered as an edge; TCNT counter is incremented.

Note 4. Includes switching from high to stop.

3 Switching from high to low*

4 Switching from high to high

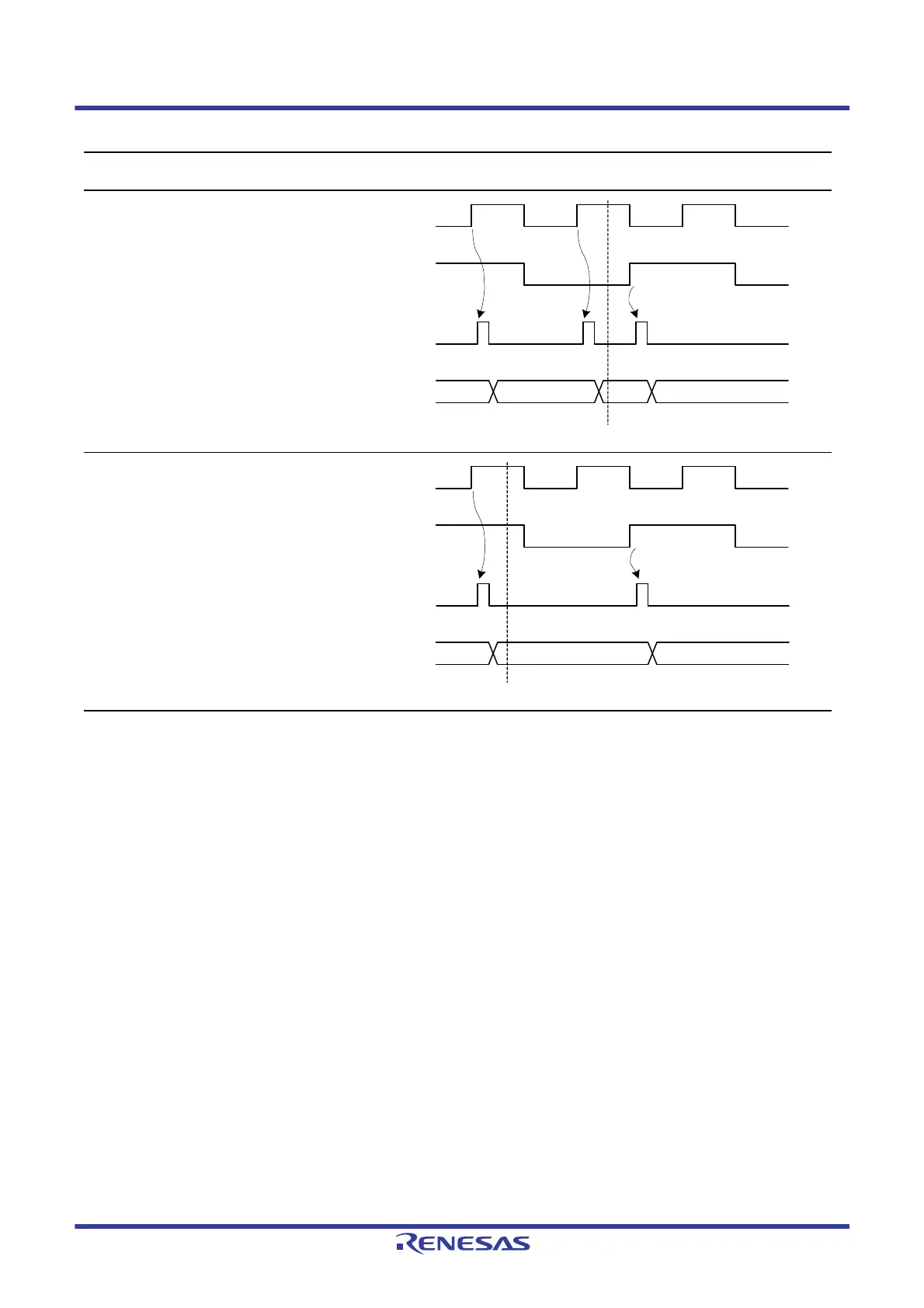

Table 26.8 Switching of Internal Clocks and TCNT Operation (2/2)

No.

Timing to Change the

TCCR.CKS[2:0] Bits TCNT Counter Operation

Clock before

switching

Clock after

switching

TCNT count

clock

TCNT

TCCR.CKS[2:0] bits changed

N + 1N N + 2 N + 3

Clock before

switching

Clock after

switching

TCNT count

clock

TCNT

TCCR.CKS[2:0] bits changed

N + 1N N + 2
