R01UH0823EJ0100 Rev.1.00 Page 849 of 1823

Jul 31, 2019

RX23W Group 31. Independent Watchdog Timer (IWDTa)

Figure 31.6 shows the IWDT refresh-operation waveforms when PCLK > IWDTCLK and clock divide ratio =

IWDTCLK.

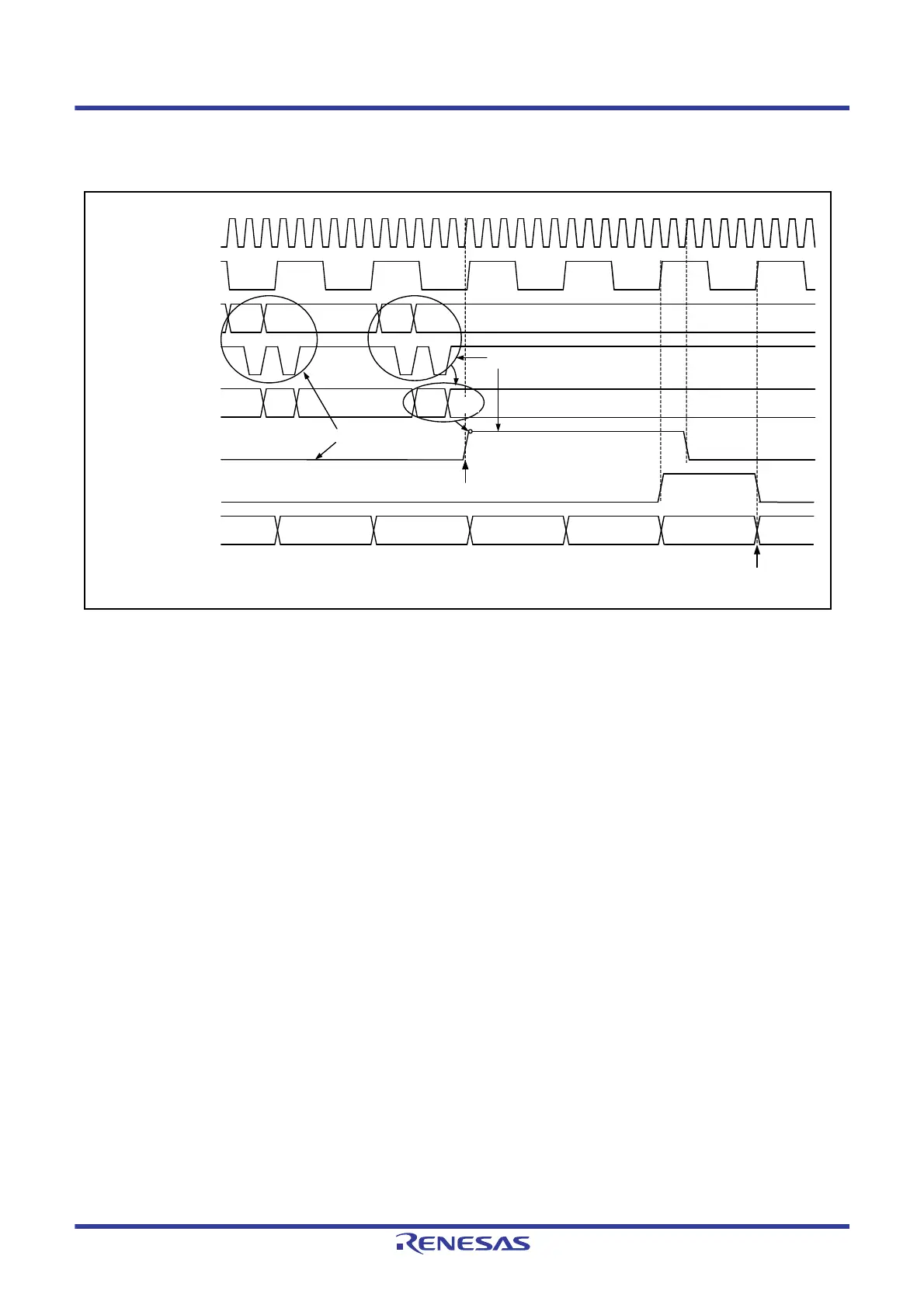

Figure 31.6 IWDT Refresh Operation Waveforms (IWDTCR.CKS[3:0] = 0000b, IWDTCR.TOPS[1:0] = 11b)

Invalid

Valid

Refreshing

Peripheral module

clock (PCLK)

IWDT-dedicated

clock (IWDTCLK)

Data written to

IWDTRR register

IWDTRR register write

signal (internal signal)

IWDTRR register

Refresh

synchronization signal

Refresh signal

(after synchronization

with IWDTCLK)

Counter value

n+2 n+1 n n-1 n-2 n-3

FFhFFh 00h 00h

Refresh request

00h 54h 00h FFh

FFh

07FFh
