2 User Interface
2.4 Menu Panel
If you move to a different menu panel or sub-panel and then come back to a
previous panel, the previous panel is always reset to be scrolled all the way back to
the top.
Accessing Menus Without Using Front-Panel Keys
You can access the menu panels without using the front panel keys, as you would

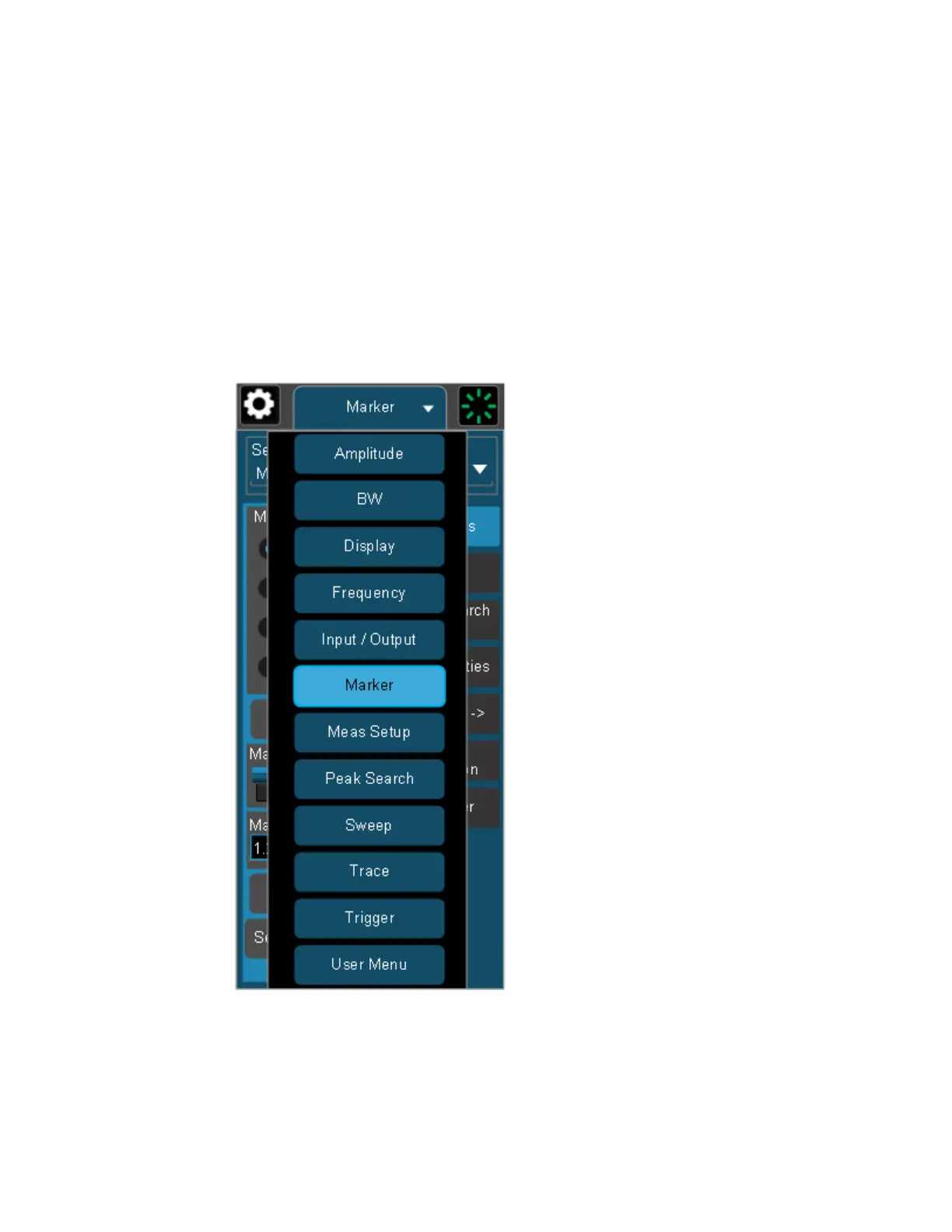

need to do if you were operating the instrument using Remote Desktop. Touch or
click on the menu title, as shown below. A dropdown containing the twelve
measurement hardkeys appears. Selecting a hardkey from the dropdown displays
the corresponding menu, and the dropdown disappears.
Entering Numeric Values
Many controls on the menu panel allow you to enter numeric values. These are
called “active functions.” An active function control displays a number and a suffix,
Short Range Comms & IoT Mode User's &Programmer's Reference 123
