Keysight x-series Instruction Manual

3 Short-Range Comms & IoT Mode
3.12 Monitor Spectrum Measurement
LoRa CSS 15.625 kHz| LoRa CSS 20.8333 kHz| LoRa CSS 31.25 kHz| LoRa CSS 41.667 kHz| LoRa CSS
62.5 kHz| LoRa CSS 125 kHz| LoRa CSS 203.125 kHz| LoRa CSS 250 kHz| LoRa CSS 406.25 kHz| LoRa
CSS 500 kHz| LoRa CSS 812.5 kHz| LoRa CSS 1625 kHz | HRP UWB 499.2 MHz
Before XA25, there were three power measurements included in this mode: CHP,
ACP, and SEM. As of XA25, five new power measurements: CCDF, IQ Waveform,
OBW, Monitor Spectrum and Spurious Emissions have been supported by this
application, with the following exceptions:
–
For Spurious Emissions, there isn’t any customized setting for any radio
standard;
–
SEM is only supported by ZigBee;
–
LoRa’s preset isn’t supported by SEM and ACP;

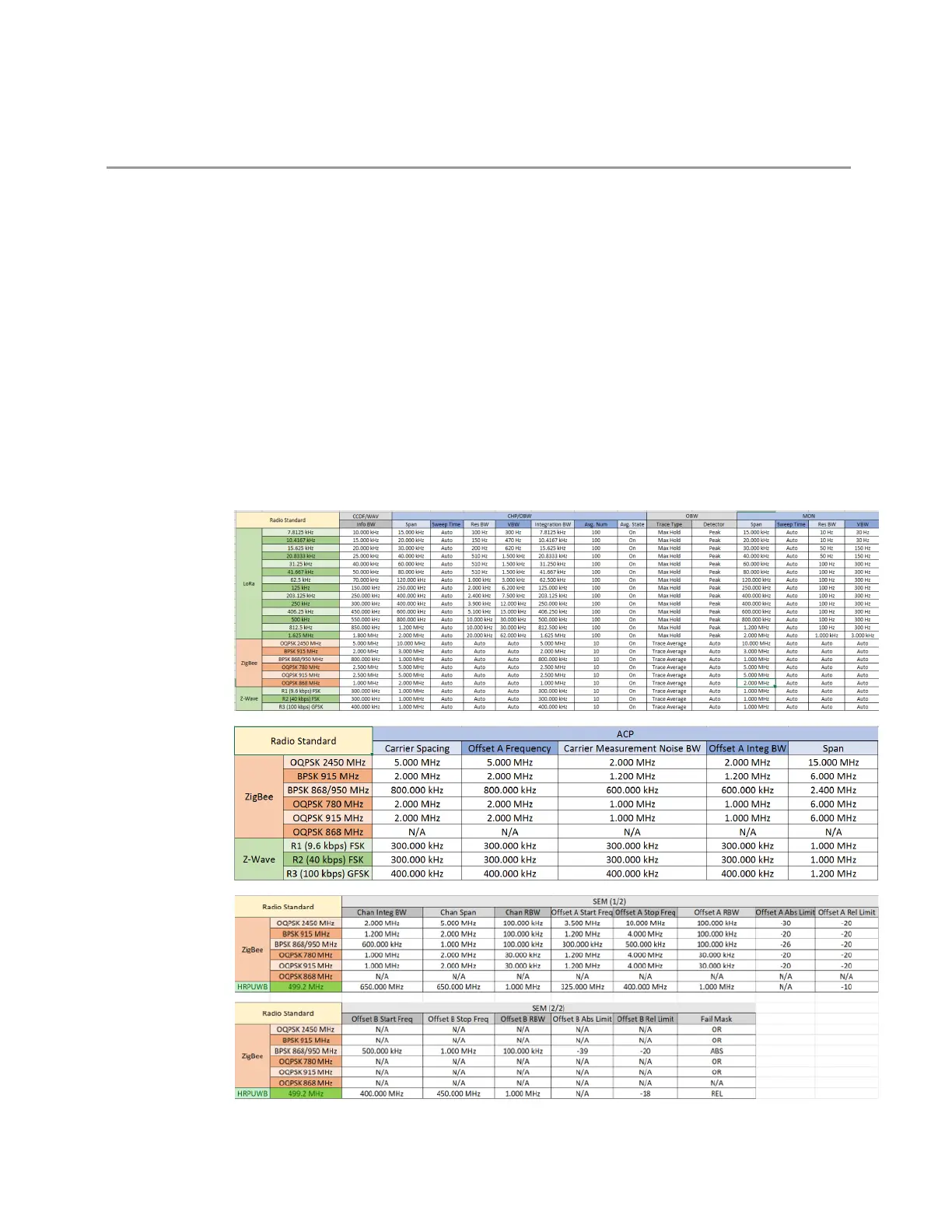

The major changes of the settings of the power measurements which are impacted
by preset to standard are listed in the table below.
Short Range Comms & IoT Mode User's &Programmer's Reference 1713

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
