3 Short-Range Comms & IoT Mode
3.2 Modulation Analysis Measurement
In any of these cases, if the required options are not present and the SCPI command is sent, error -
241, "Hardware missing; Option not installed" is generated
Low Noise Path Enable and Full Bypass Enable are grayed-out if the current measurement does not
support them
Low Noise Path Enable and Full Bypass Enable are not supported in Avionics and MMR Modes (non-
modulation measurements). In any of these cases (that is, the feature is not supported in either
measurement or Mode), if the SCPI command is sent, the following error is generated: -221, “Setting
Conflict; Feature not supported for this measurement”
Preset
Mode Value
IQ Analyzer
Pulse
RTSA
Avionics
MPB option present and licensed: MPB
MPB option not present and licensed: STD
All other Modes
STD
–
State Saved Save in instrument state
Range Standard Path | Low Noise Path Enable | µW Presel Bypass | Full Bypass Enable
Annotation In the Meas Bar, if the Standard path is chosen:
µW Path: Standard
If Low Noise Path is enabled but the LNP switch is not thrown:
µW Path: LNP,Off
If the Low Noise Path is enabled and the LNP switch is thrown:
µW Path: LNP,On
If the preselector is bypassed:
µW Path: Bypass
If Full Bypass Enable is selected but the LNP switch is not thrown:
µW Path: FByp,Off
If Full Bypass Enable is selected and the LNP switch is thrown:
µW Path: FByp,On
µW Path Control Auto

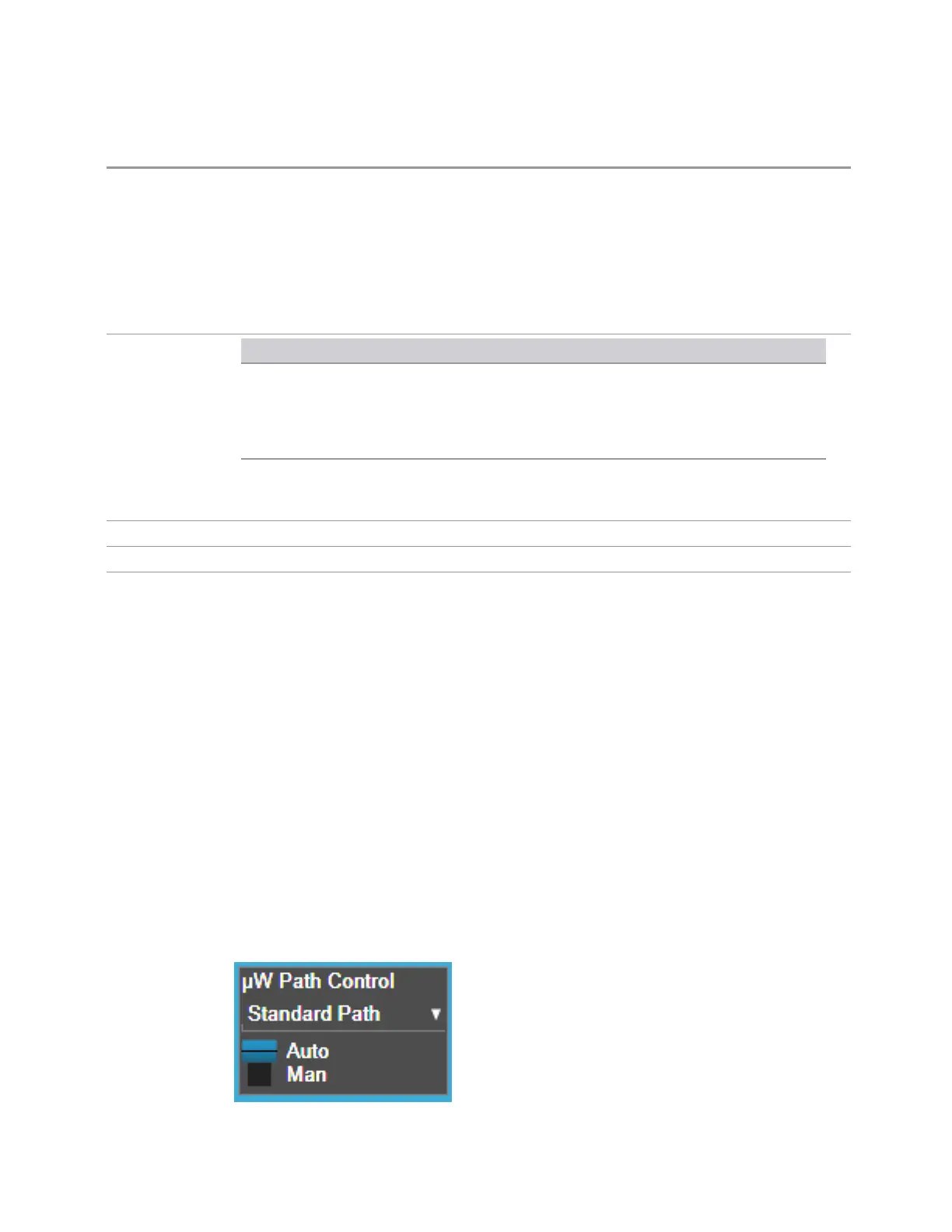

In VMA, WLAN, 5G NR, CQM Modes, an Auto/Man switch is added to µW Path
Control:
Short Range Comms & IoT Mode User's &Programmer's Reference 233
