3.7 ACP Measurement

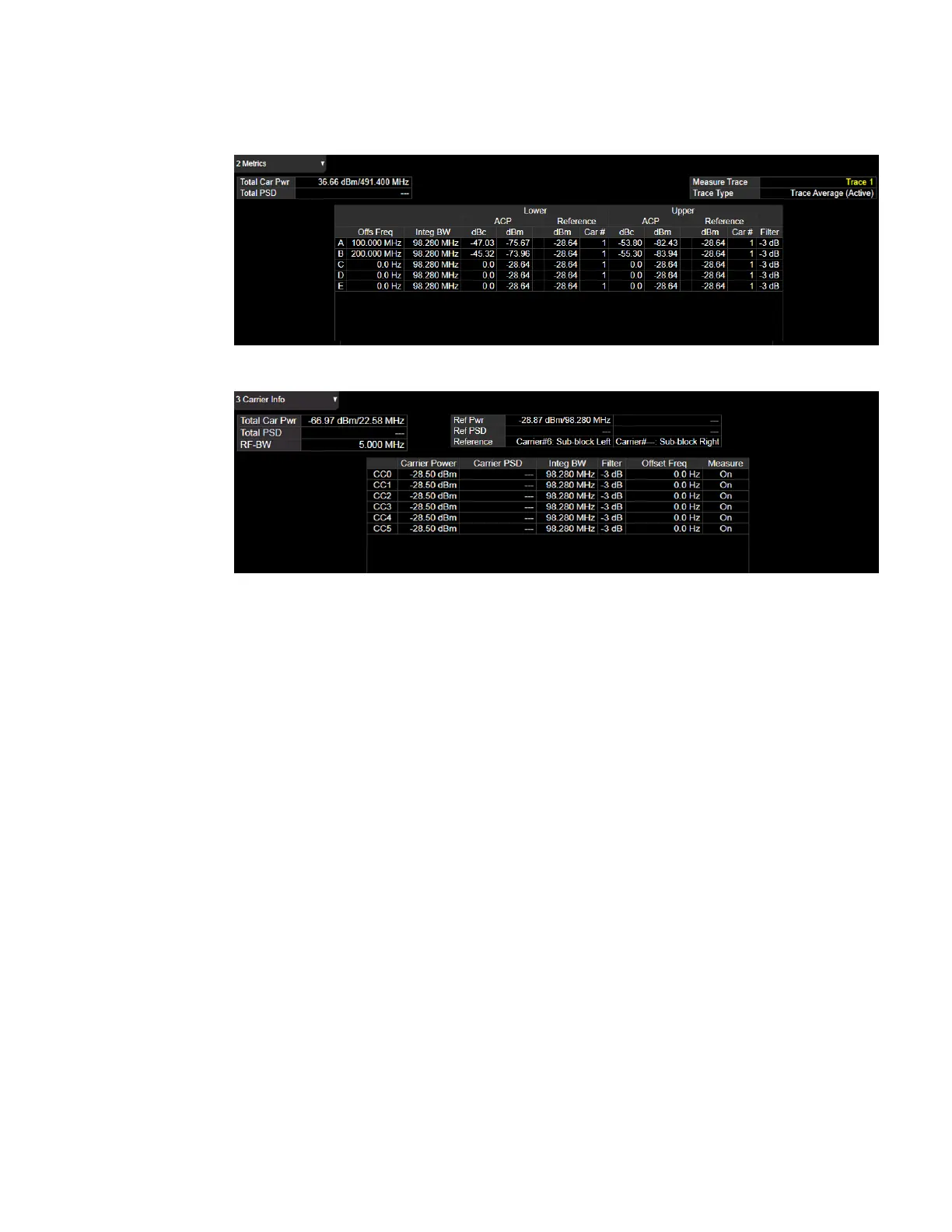

Metrics Window in Carrier Info view:

The text window displays the following results:

Total Carrier Power

This is the total power of all the carriers with carrier power present set to yes. The

power is calculated by integrating across the bandwidth declared by the Carrier

Integ BW parameter for each carrier and then totaling the sums. The total

integration bandwidth is shown as part of the result. This will be the total of the

Carrier Integ Bw of the carriers used in calculating the total carrier power. If the RRC

Filter is on, then the integration bandwidth used is (1 + alpha)/T where T = 1/(Carrier

Integ BW) multiplied by the number of carriers with carrier power present set to yes.

Ref Power

This is the power of the reference. The power is calculated by integrating across the

bandwidth defined by the Reference Type. The integration bandwidth is shown as a

part of the result. For some Power Reference Type, this is the value of the Carrier

Integ BW for that carrier unless the RRC Filter is on, then the integration bandwidth

used is the displayed value, which is (1 + alpha)/T where T = 1/(Carrier Integ BW).

Reference

In multi-carrier applications, this row displays what is used as a reference power.

Carrier Power

This is the power in all the currently defined carriers. If the carrier has carrier power

present, the power will be absolute. If the carrier is defined as not having power
