RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)
(1) Example of Cascaded Operation Setting Procedure

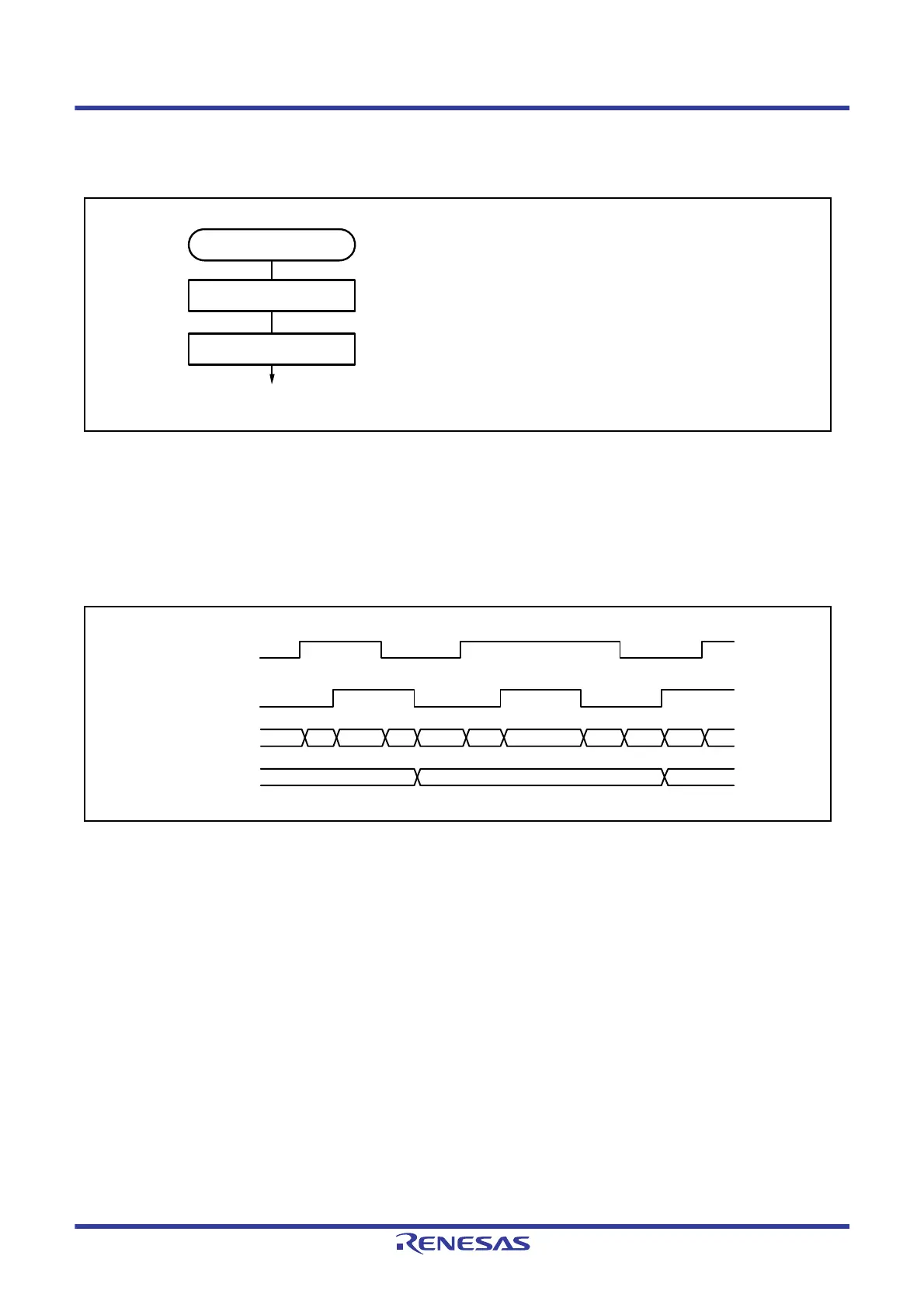

Figure 23.20 shows an example of the cascaded operation setting procedure.
Figure 23.20 Cascaded Operation Setting Procedure
(2) Cascaded Operation Example (a)
Figure 23.21 shows the operation when the MTU1.TCNT counter is set for counting at MTU2.TCNT overflow/
underflow and MTU2 is set for phase counting mode 1 while counters MTU1.TCNT and MTU2.TCNT are cascaded.
The MTU1.TCNT counter is incremented by MTU2.TCNT overflow and decremented by MTU2.TCNT underflow.
Figure 23.21 Cascaded Operation Example (a)
[1]
[2]
[1] Set the MTU1.TCR.TPSC[2:0] bits to 111b to
select MTU2.TCNT overflow/underflow counting.
[2] Set the TSTR.CSTn bit for the upper and lower
channels to 1 to start the count operation.
Cascaded operation
Set cascading
Start count
Cascaded operation
0001h0000h 0000h
FFFDh FFFEh FFFFh 0000h 0001h 0002h 0001h 0000h FFFFh
MTCLKC
MTU2.TCNT
MTU1.TCNT
MTCLKD
