RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)

(2) Output Compare Output Timing

A compare match signal is generated in the final state in which the TCNT counter and the TGR register match (the point

at which the count value matched is updated by the TCNT counter). When a compare match signal is generated, the value

set in the TIOR register is output to the output compare output pin (MTIOC pin). After a match between the TCNT

counter and the TGR register, the compare match signal is not generated until the TCNT count clock is generated.

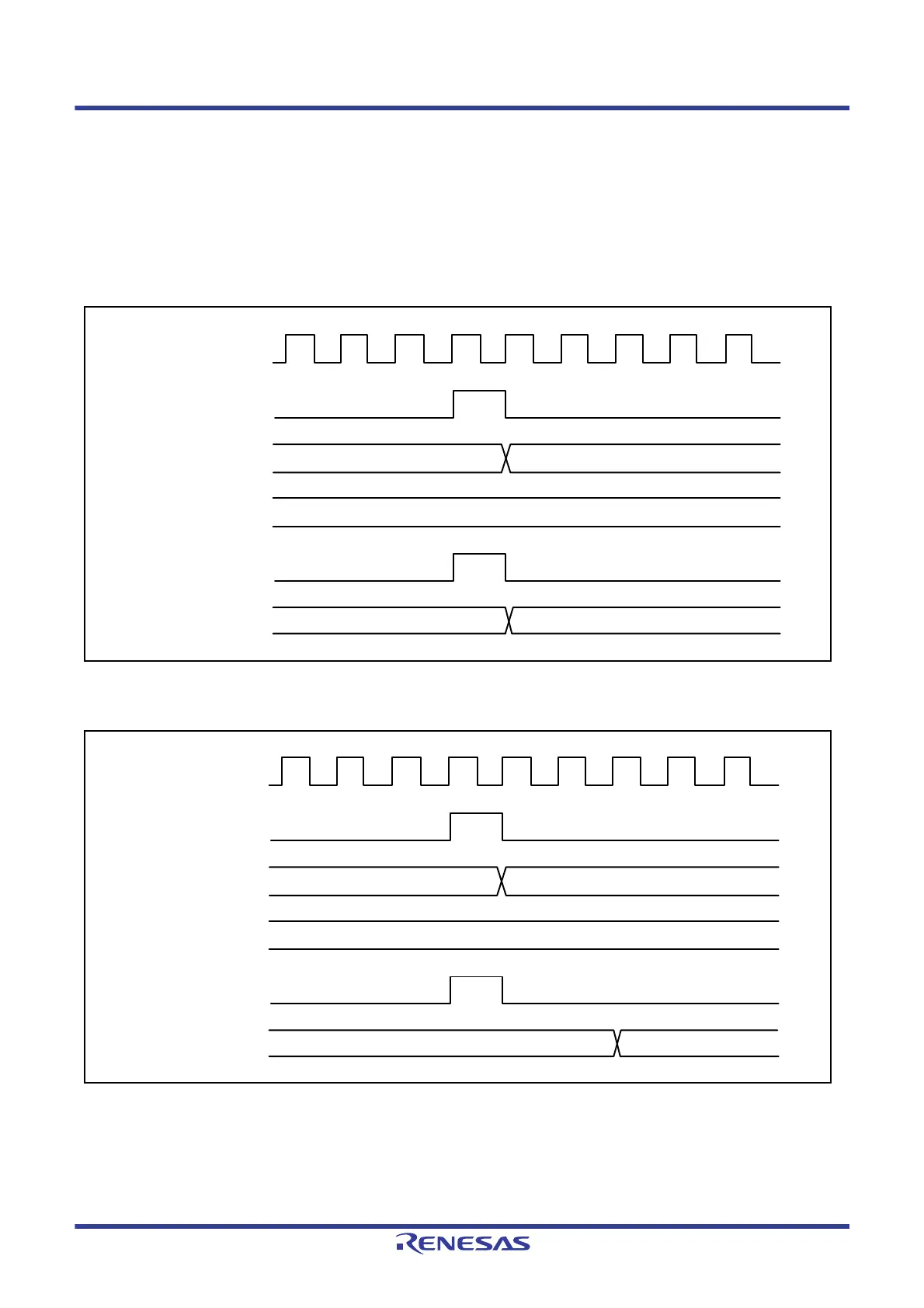

Figure 23.81 shows the output compare output timing (normal mode or PWM mode) and Figure 23.82 shows the

output compare output timing (complementary PWM mode or reset-synchronized PWM mode).

Figure 23.81 Output Compare Output Timing (Normal Mode or PWM Mode)

Figure 23.82 Output Compare Output Timing (Complementary PWM Mode or Reset-Synchronized PWM Mode)

N + 1

TGR

TCNT

TCNT count clock

Compare match signal

MTIOC pin

PCLK
