R01UH0823EJ0100 Rev.1.00 Page 591 of 1823
Jul 31, 2019
RX23W Group 23. Multi-Function Timer Pulse Unit 2 (MTU2a)
(4) Timing for Counter Clearing by Compare Match/Input Capture

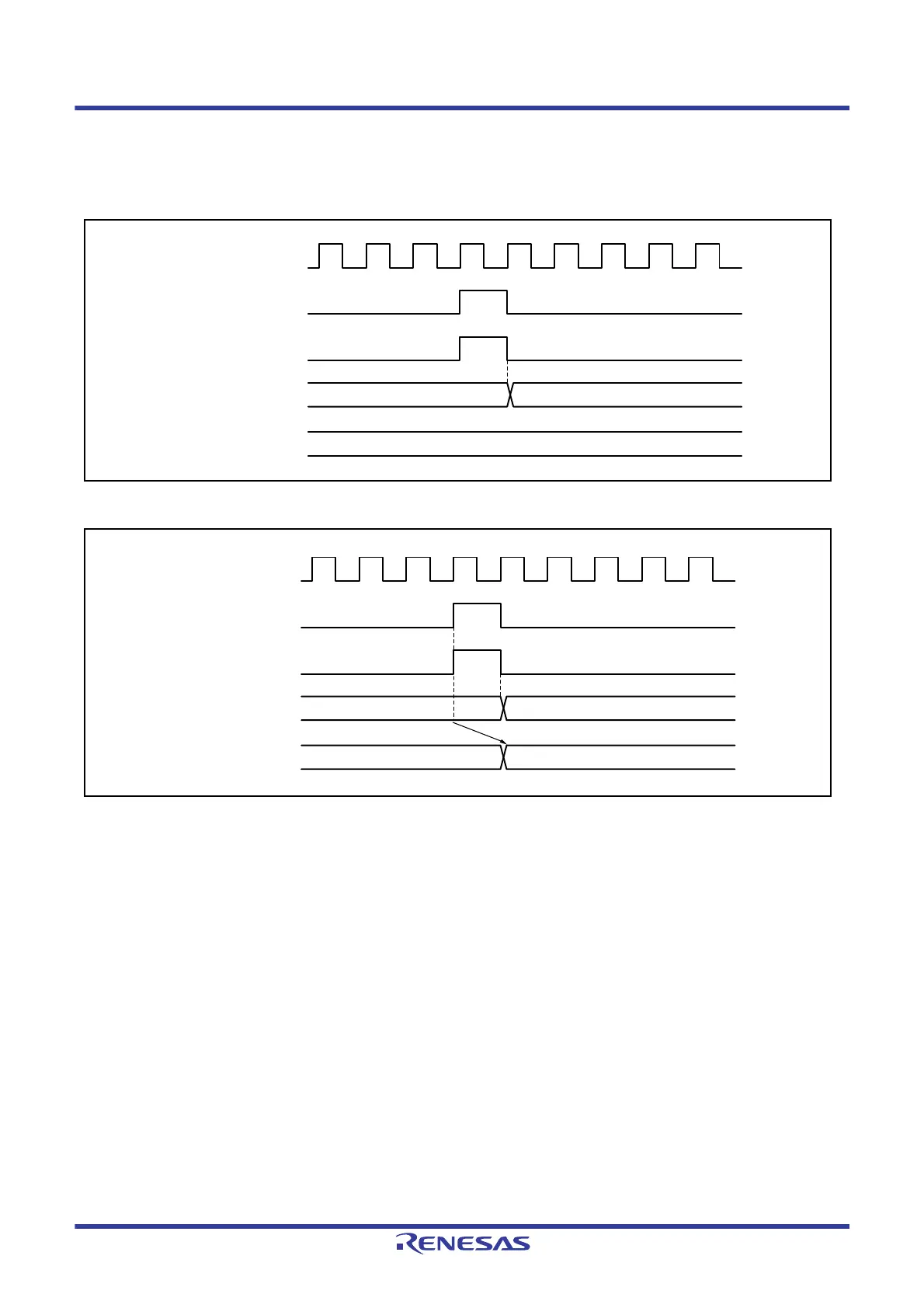

Figure 23.84 show the timing when counter clearing on compare match is specified, and Figure 23.85 shows the
timing when counter clearing on input capture is specified.
Figure 23.84 Counter Clear Timing (Compare Match) (MTU0 to MTU4)
Figure 23.85 Counter Clear Timing (Input Capture) (MTU0 to MTU4)
PCLK
TCNT
Counter clear signal
Compare match signal
TGR
N
N 0000h
TCNT
Counter clear signal
Input capture signal
TGR
PCLK
N 0000h
N
