R01UH0823EJ0100 Rev.1.00 Page 918 of 1823

Jul 31, 2019

RX23W Group 32. USB 2.0 Host/Function Module (USBc)

Figure 32.6 and Figure 32.7 show an example of functional connection of the USB connector in bus powered state.

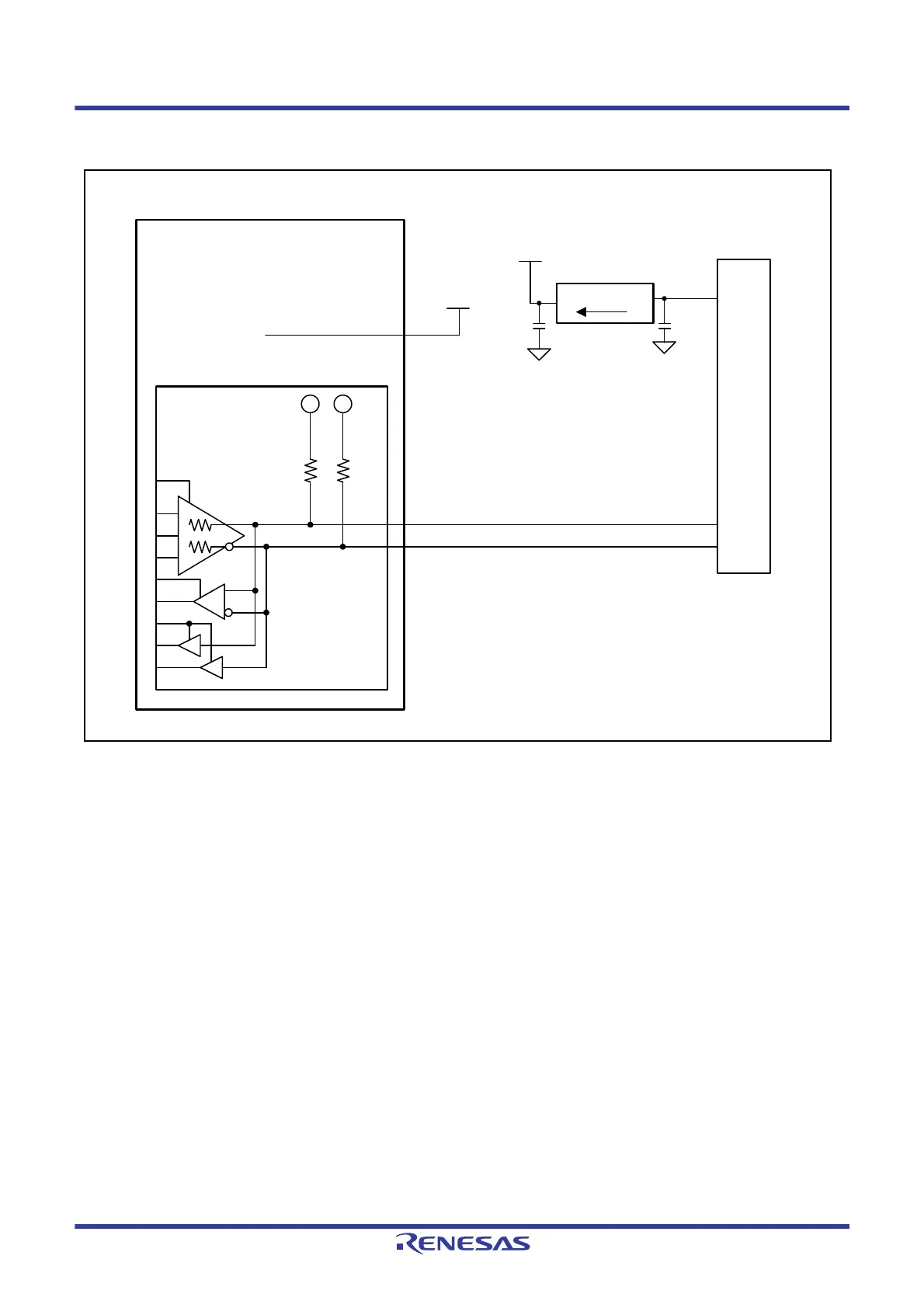

Figure 32.6 Functional Connection Sample of USB Connector in Bus Powered State (1)

External connection

MCU

USB0_VBUS

USB0_DP

USB0_DM

USB

B connector

D+

D–

VBUS

USB

transceiver

Regulator

Each system power

supply (3.3 V)

DRV

System power

supply (3.3 V)

DRV

: Output impedance

: Pull-up resistor

P16 or PB5

Note 1. Design the board so that the total VBUS capacitance

ranges from 1.0 to 10 µF.
