Watchdog Timer
10.4.2 System Watchdog Recovery Sequence

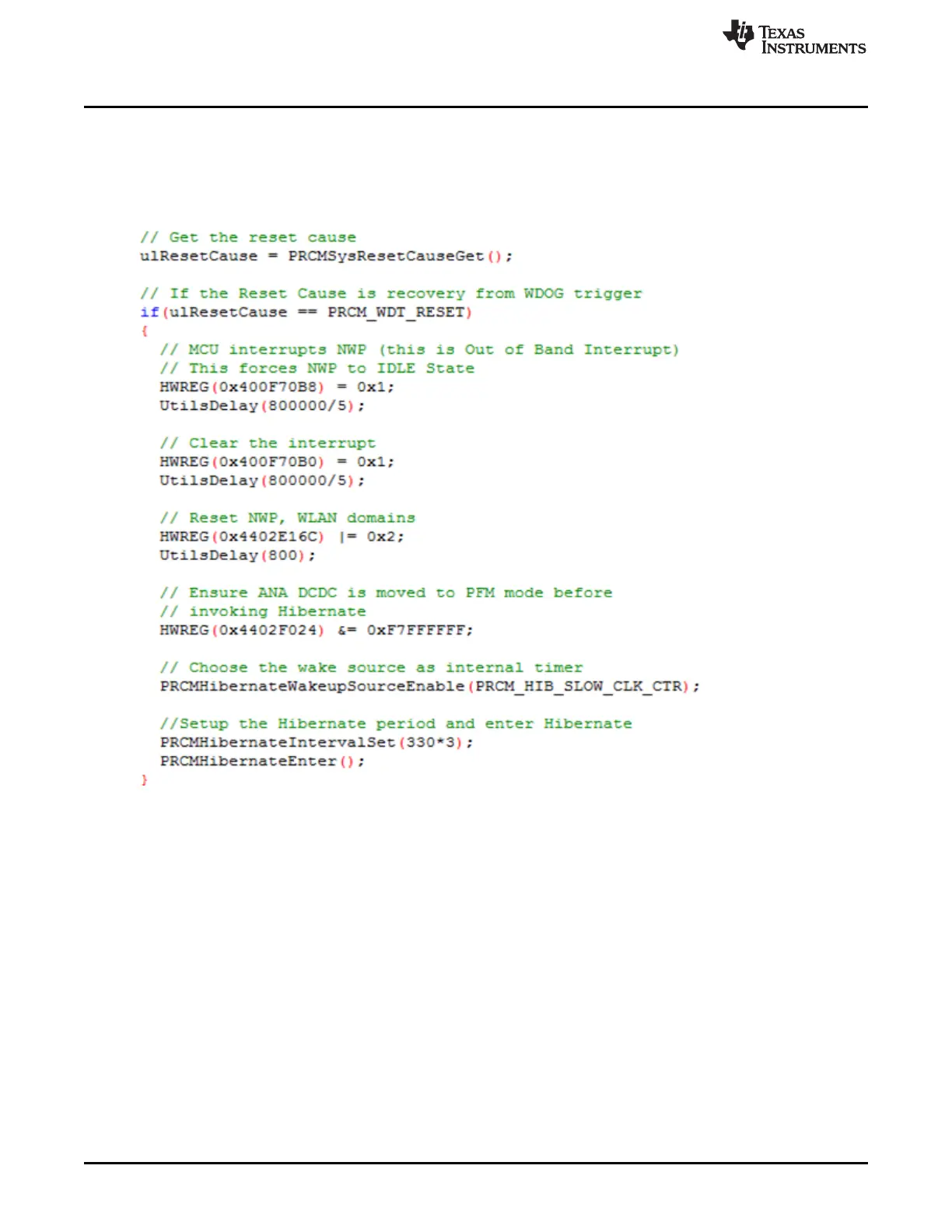

The sequence shown in Figure 10-10 should be integrated in the user application for a reliable recovery
from the WDOG trigger:
Figure 10-10. System Watchdog Recovery Sequence
