Parallel Camera Interface Module

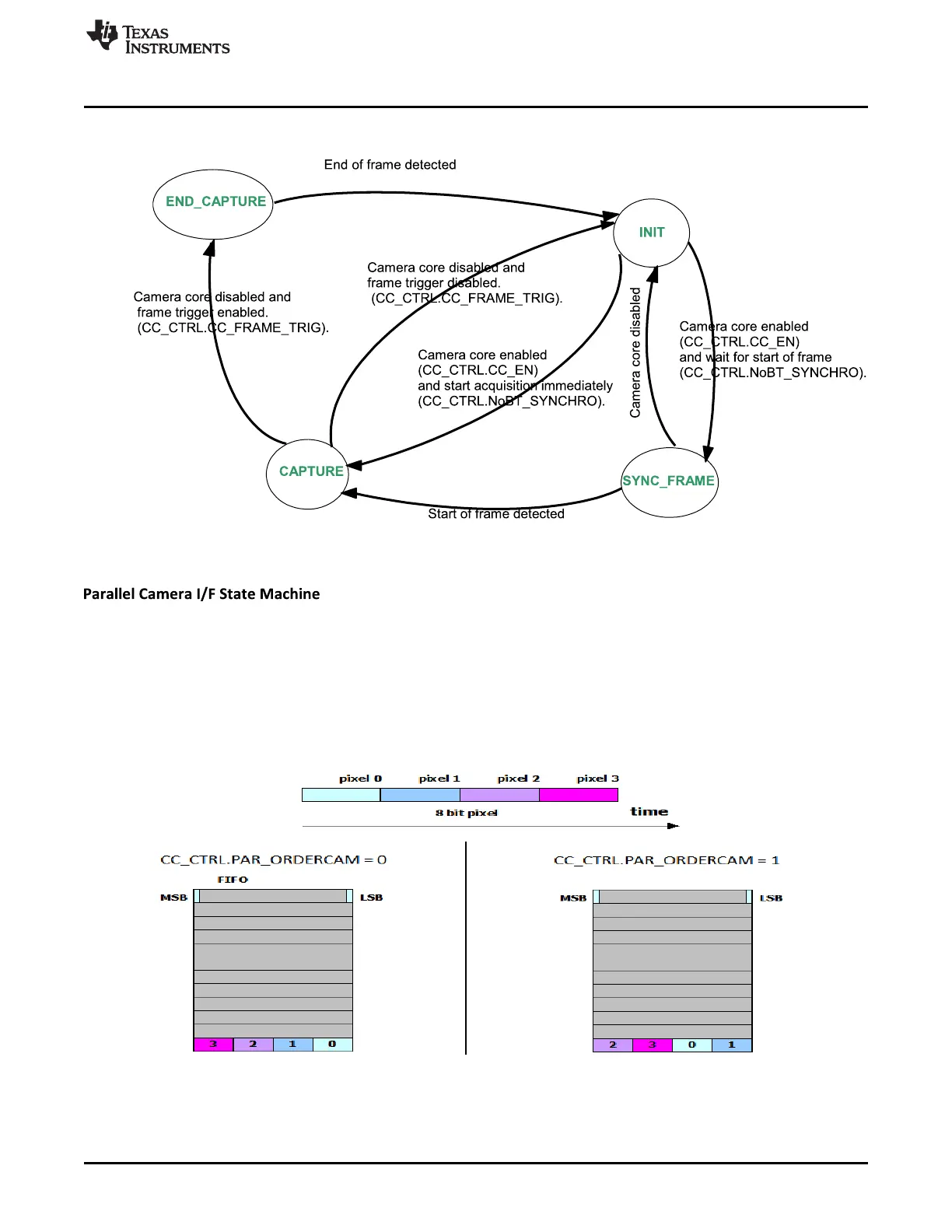

Figure 14-6. Parallel Camera Interface State Machine
Image data is stored differently in the FIFO, depending on the setting of the PAR_ORDERCAM bit, as
shown in Figure 14-7.
Figure 14-7. FIFO Image Data Format
