Parallel Camera Interface Module
14.1 Overview
The CC32xx camera core module can interface an external image sensor. It supports an 8-bit parallel
image sensor interface (Non-BT Does BT = Bluetooth ?) interface with vertical and horizontal
synchronization signals. BT mode is not supported. The recommended maximum pixel clock is 1 MHz.
The module stores the image data in a FIFO and can generate DMA requests.

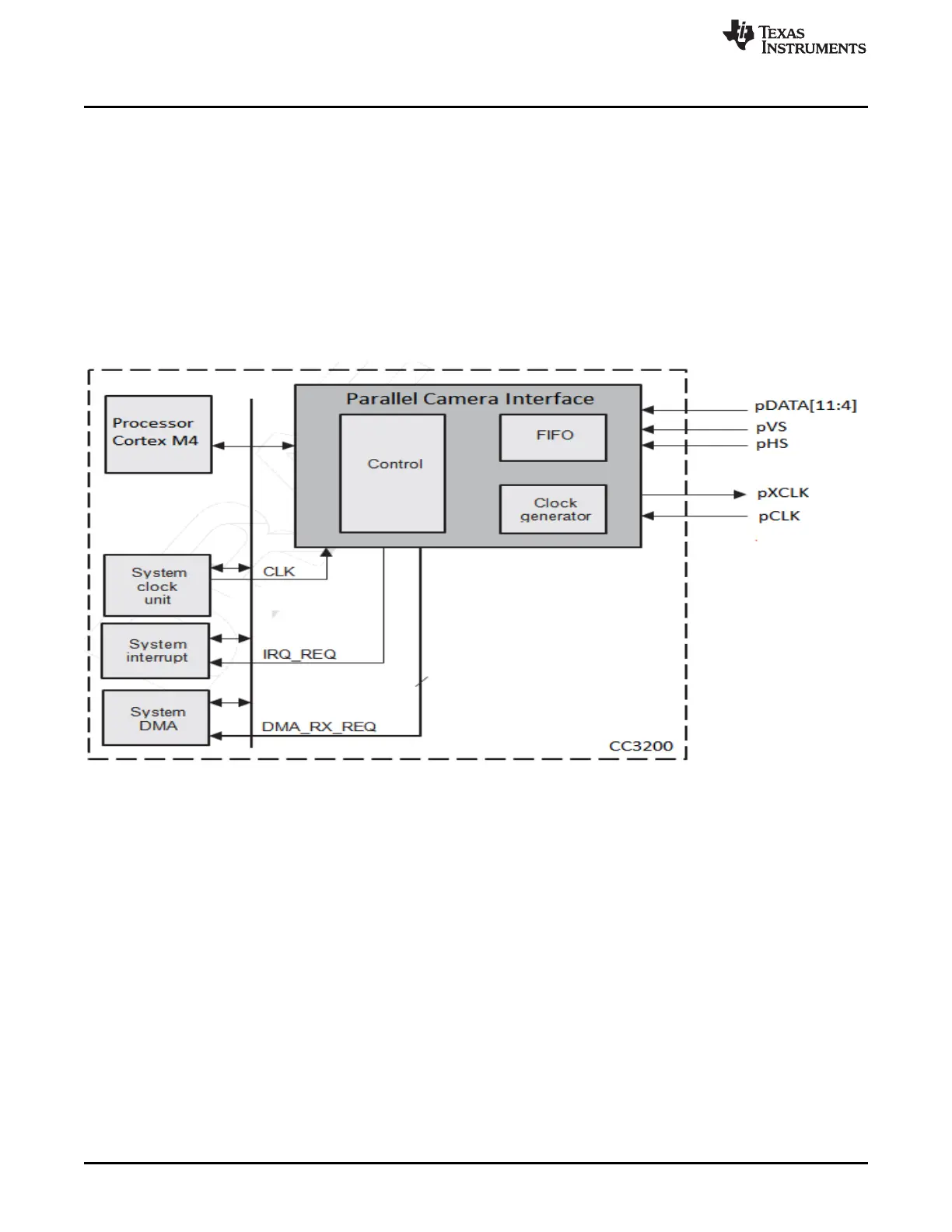

Figure 14-1 shows how the camera core is connected to the rest of the system in the CC32xx device.
Figure 14-1. Camera Module Interfaces
14.2 Image Sensor Interface
Table 14-1 lists the image sensor interface signals.
