3 Short-Range Comms & IoT Mode
3.7 ACP Measurement
–
See "Dual-Attenuator Configurations" on page 793
–
See "Single-Attenuator Configuration" on page 794
Most attenuation settings are the same for all measurements – they do not change
as you change measurements. Settings like these are called “Meas Global” and are
unaffected by Meas Preset.
Only available when the hardware set includes an input attenuator, which is
typically only the case for Keysight’s benchtop instruments. For example, this tab
does not appear in VXT models M9420A/10A/11A/15A/16A,
M9410E/11E/15E/16E, nor in UXM. In UXM, all Attenuation and Range settings are
disabled, as the expected input power level is handled by the Call Processing App
that drives the DUT power control.
Dependencies In measurements that support the I/Q inputs, unavailable when I/Q is the selected input. Replaced by
the Range tab in that case

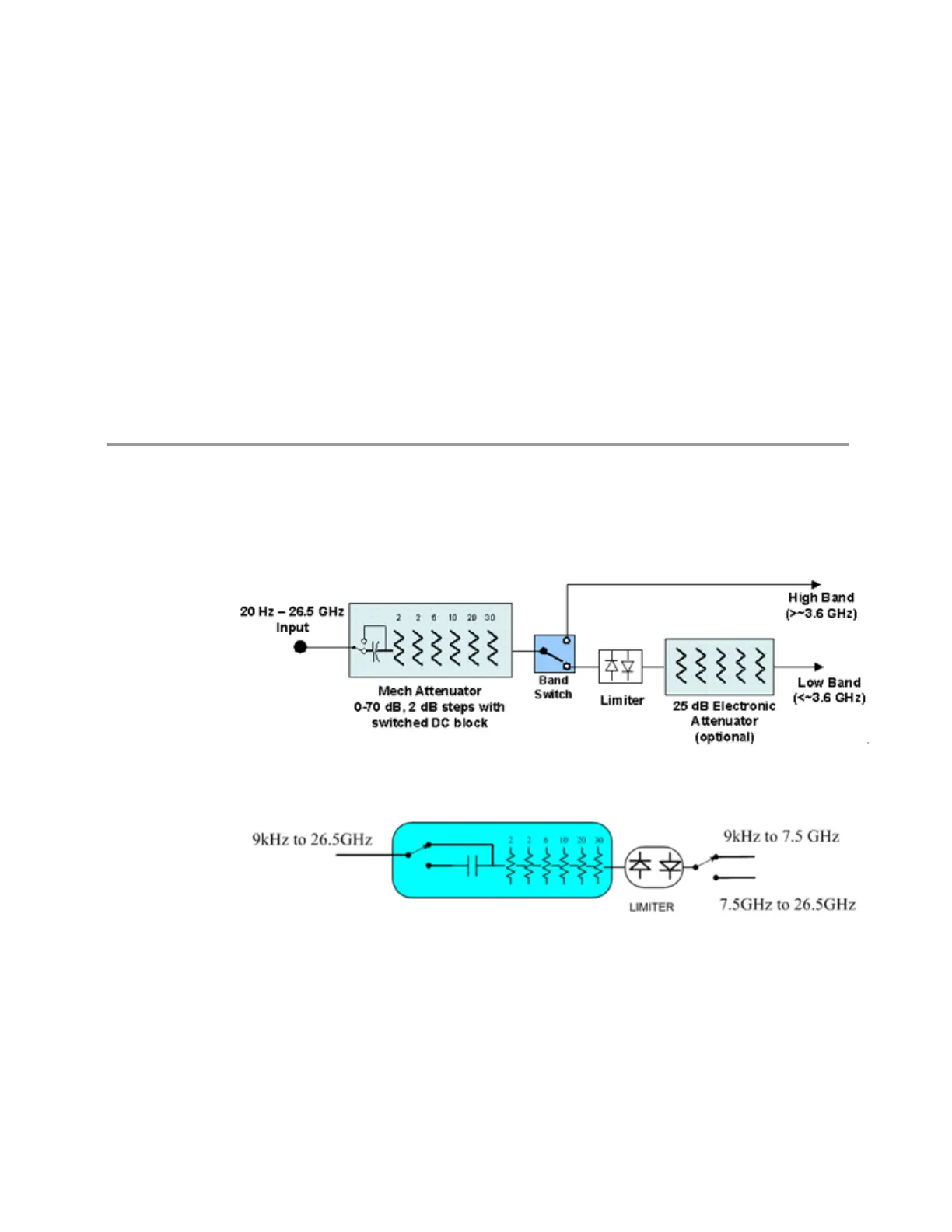

Dual-Attenuator Configurations
Configuration 1: Mechanical attenuator + optional electronic attenuator
Configuration 2: Mechanical attenuator, no optional electronic attenuator
Note that Configuration2 is not strictly speaking a dual-section attenuator, since
there is no electronic section available. However, it behaves exactly like
Configuration 1 without the Electronic Attenuator Option EA3, therefore for the sake
of this document it is grouped into the “Dual-Attenuator” configuration.
Short Range Comms & IoT Mode User's &Programmer's Reference 793

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
