RX23W Group 51. Electrical Characteristics

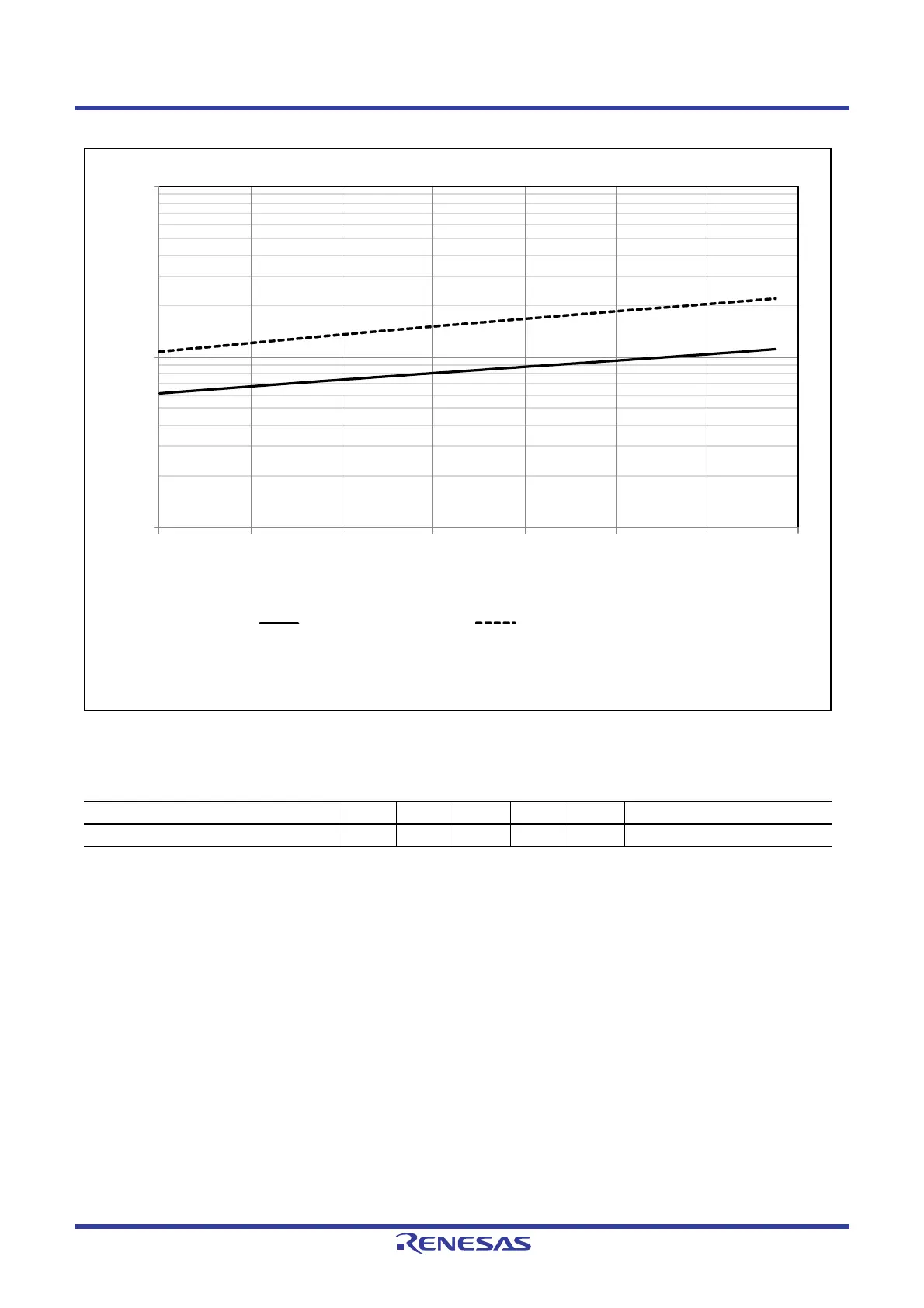

Figure 51.6 Temperature Dependency of RTC Operation with VCC Off (Reference Data)

Note 1. Total power dissipated by the entire chip (including output currents)

Table 51.10 DC Characteristics (8)

Conditions: 1.8 V ≤ VCC = VCC_USB = AVCC0 = VCC_RF = AVCC_RF ≤ 3.6 V, VSS = AVSS0 = VSS_USB = VSS_RF = 0 V

Item Symbol Min. Typ. Max. Unit Test Conditions

Permissible total power consumption*

Pd — — 350 mW D-version product

Note 1. Indicates the average of the typical samples through actual measurement during product evaluation.

–40–200 20406080100

ICC (µA)

Ta (°C)

Normal drive capacity*1

Low drive capacity*1

Normal drive capacity*1
