R01UH0823EJ0100 Rev.1.00 Page 915 of 1823

Jul 31, 2019

RX23W Group 32. USB 2.0 Host/Function Module (USBc)

Figure 32.3 shows an example of functional connection of the USB connector in the self-powered state.

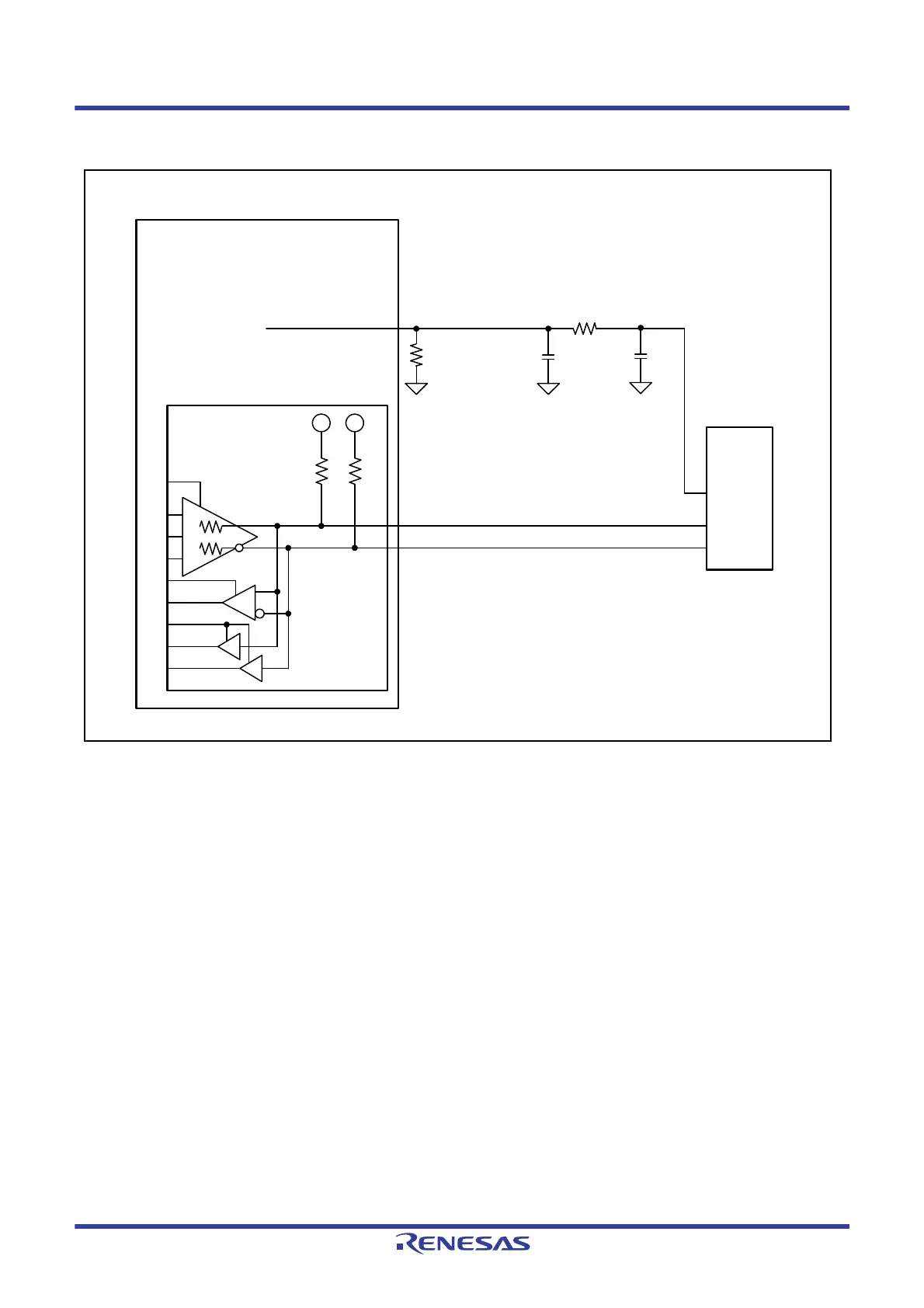

Figure 32.3 Functional Connection of USB Connector in Self-Powered State

External connection

MCU

USB0_VBUS

USB0_DP

USB0_DM

USB

B connector

D+

D–

VBUS

USB

transceiver

100 

0.1 µF

DRV

1 M

P16 or PB5

DRV

: Output impedance

: Pull-up resistor

Note 1. Design the board so that the total VBUS capacitance

ranges from 1.0 to 10 µF.
