7 Root (:) Commands
:MTEenable (Mask Test Event Enable Register)
(see page 1610)
Command Syntax
:MTEenable <mask>
<mask> ::= 16-bit integer
The :MTEenable command sets a mask in the Mask Test Event Enable register. Set
any of the following bits to "1" to enable bit 9 in the Operation Status Condition
Register and potentially cause an SRQ (Service Request) interrupt to be
generated.
Query Syntax
:MTEenable?
The :MTEenable? query returns the current value contained in the Mask Test Event
Enable register as an integer number.
Return Format
<value><NL>

To MTE bit in
Operation Status
Condition Register
OR
:MTEenable
:MTEenable?

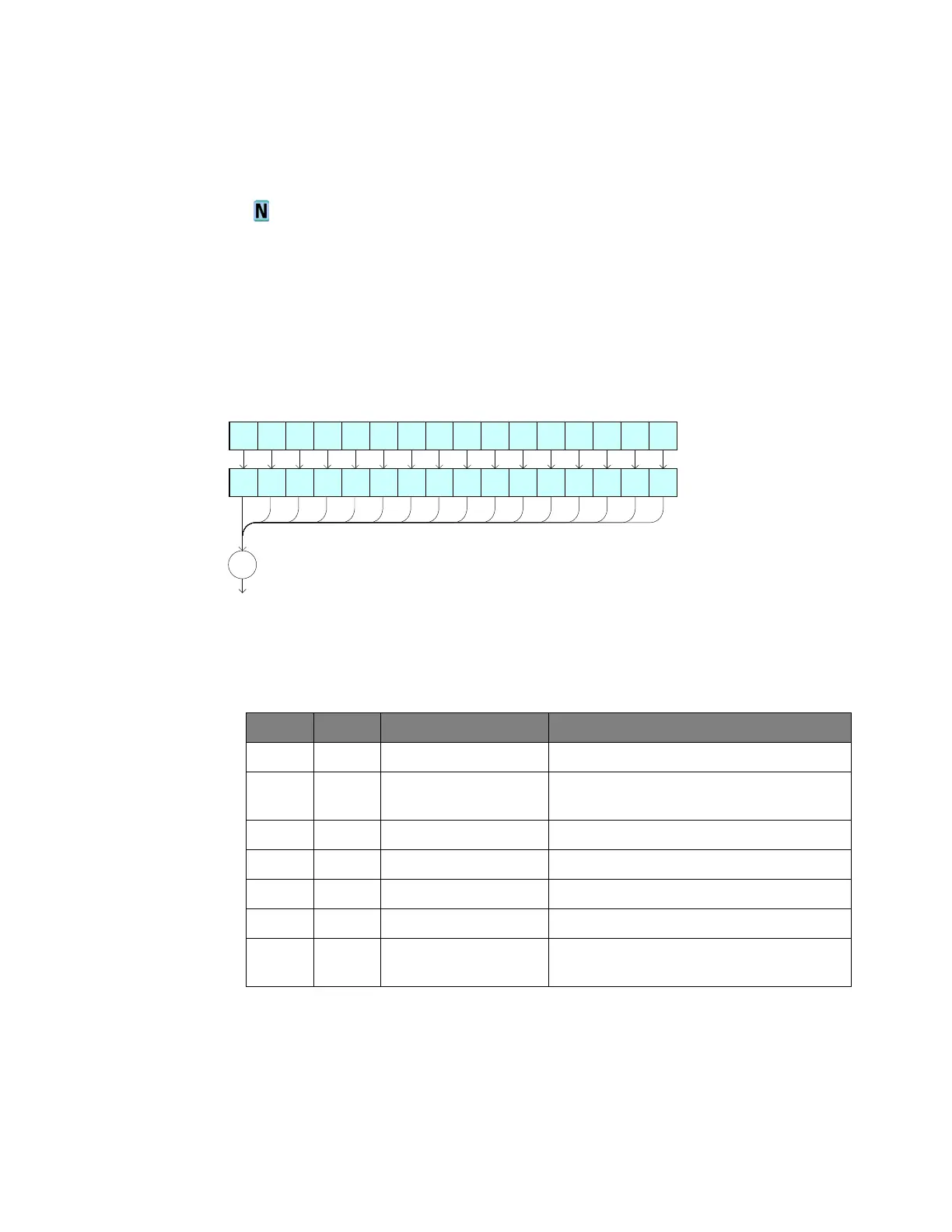

Mask Test Event Enable (Mask) Register
1023456798101112131415
:MTERegister[:EVENt]?
Mask Test Event Event Register
Fail
Com-
plete
Auto
Mask
Started
Pass
Table 87 Mask Test Event Enable Register (MTEenable)
Bit Name Description When Set (1 = High = True), Enables:
15-11 --- --- (Not used.)
10 Auto
Mask
Auto Mask Created Auto mask creation completed.
9 Pass Mask Test Pass Mass test passed.
8 Started Mask Testing Started Mask testing started.
7-2 --- --- (Not used.)
1 Fail Mask Test Fail Mask test failed.
0 Complet
e
Mask Test Complete Mask test is complete.
