25 :MEASure Power Commands
:MEASure:REACtive
(see page 1610)
Command Syntax
:MEASure:REACtive [<source1>][,<source2>]
<source1>, <source2> ::= {CHANnel<n>}
<n> ::= 1 to (# analog channels) in NR1 format
The :MEASure:REACtive command installs a reactive power measurement on
screen.
The <source1> parameter is the channel probing voltage and the <source2>
parameter is the channel probing current. These sources can also be specified by
the :MEASure:SOURce command.

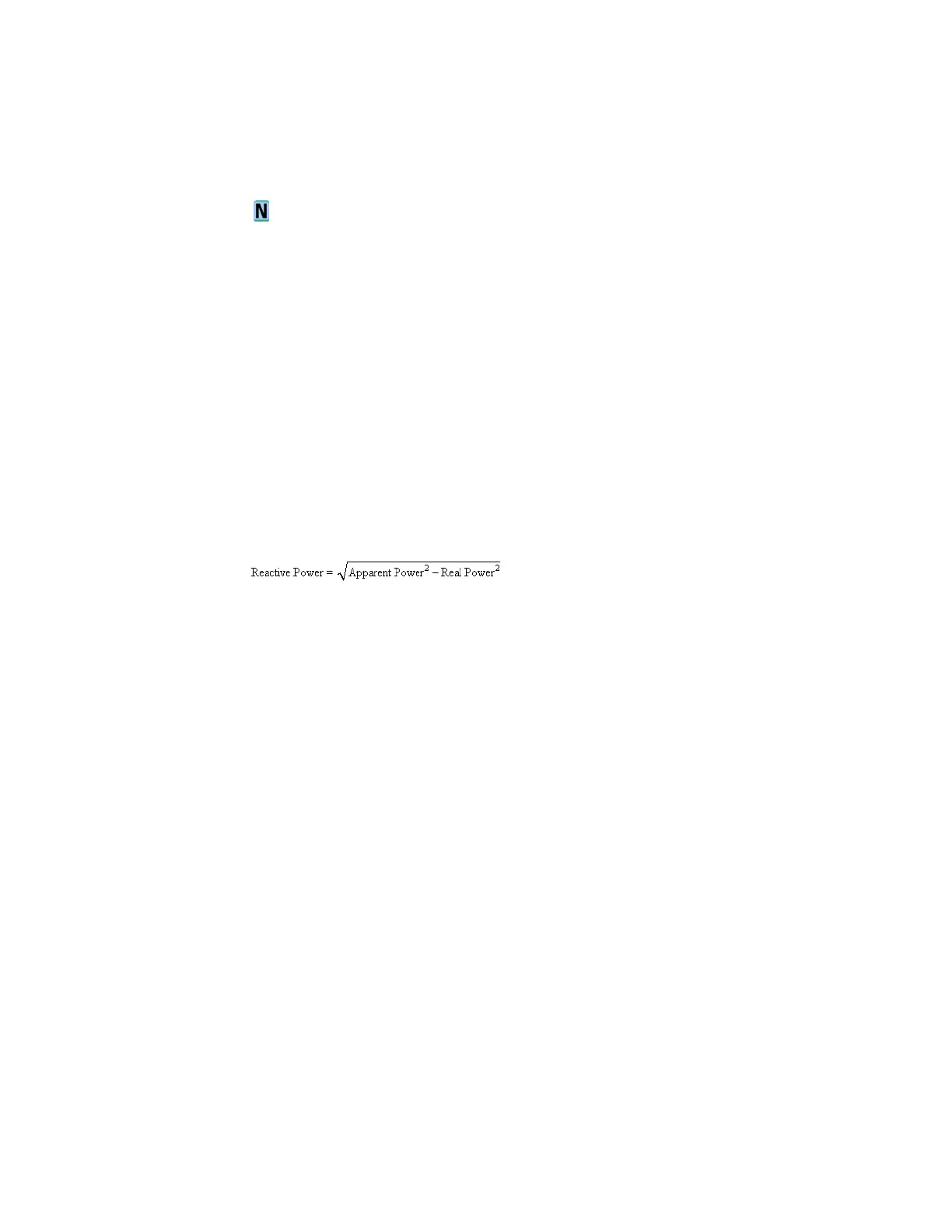

Reactive power is a measure of power quality. It is the difference between
apparent power and real power due to reactance. Using the power triangle (the
right triangle where apparent_power
2
= real_power
2
+ reactive_power
2
):
Reactive power is measured in VAR (Volts-Amps-Reactive).
Query Syntax
:MEASure:REACtive? [<source1>][,<source2>]
The :MEASure:REACtive query returns the measured reactive power.
Return Format
<return_value><NL>
<return_value> ::= the reactive power value in NR3 format
See Also • ":MEASure:SOURce" on page 615
• ":POWer:QUALity:APPLy" on page 774
