Scan Edge WidthFH/FZ5 Processing Item Function Reference Manual
259
2
Inspecting and Measuring

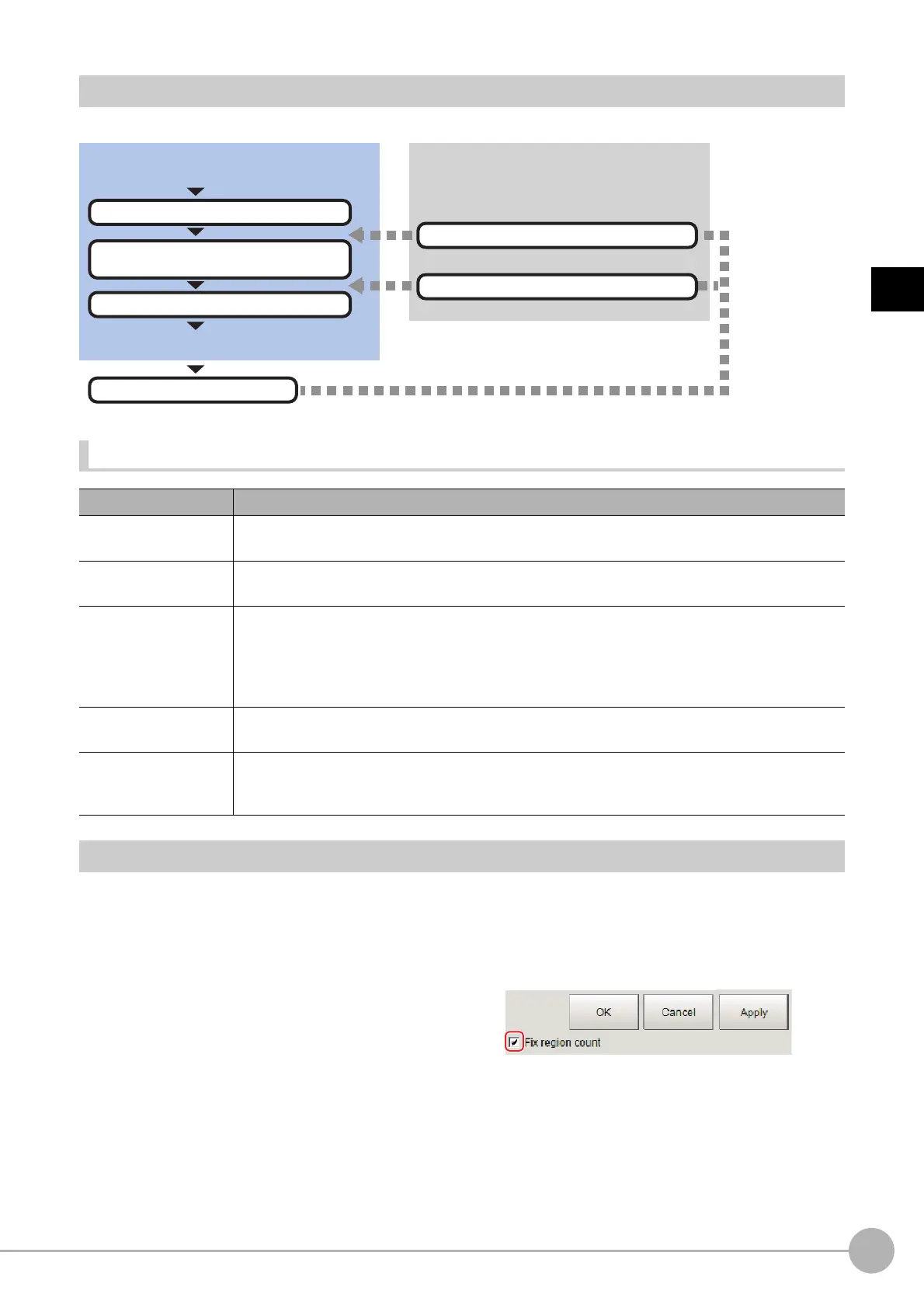

Settings Flow (Scan Edge Width)
Set the scan edge width with the following steps.
Item List for Scan Edge Width
Region Setting (Scan Edge Width)
This item is used to set up the measurement area.
Specify the measurement region of [Scan Edge
Width] by using a wide line.
1 In the Item Tab area, click [Region setting].
2 Use the Drawing tools to specify the measurement region.
To align with the measurement area and
change the number of measurement points,
uncheck this.
3 Click [OK] in the Figure setting area.
• [OK]: Changes the settings and returns to the previous menu.
• [Cancel]: Changes are discarded. R
eturns to the previous menu.
• [Apply]: Updates the settings without leaving edit window.
Item name Description
Region setting
This item is used to set up the measurement area.
Reference: Region Setting (Scan Edge Width) (p.259)
Edge color
(for color cameras only)
This item selects the color informat
ion for the edges to be detected.
Reference: Edge Color Specification - For Color Cameras Only (Scan Edge Width) (p.260)
Measurement
This item changes the measurement parameter as n
ecessary when the measurement result is
unstable.
The displayed items depend on whether your camera
is
a color or monochrome camera. Normally,
the factory default value will be used.
Reference: Measurement Parameters (Scan Edge Width) (p.261)
Judgement
This item specifies the judgement co
ndition for measurement results.
Reference: Judgement Conditions (Scan Edge Width) (p.264)
Output parameter
This item can be changed if necessary. Normally, the factory default value may be used.
Select the measurement result coordinates and set how to handle the coordinates.
Reference: Output Parameters (Scan Edge Width) (p.264)
Necessary Steps Optional Steps
Result verification/adjustment
▲
Region Setting (Scan Edge Width)
▲
Edge Color Specification – For Color
Cameras Only (Scan Edge Width)
▲
Judgement Conditions (Scan Edge Width)
Start
Settings completed
Test measurement
▲
Output Parameters (Scan Edge Width)
▲
Measurement Parameters (Scan Edge Width)
