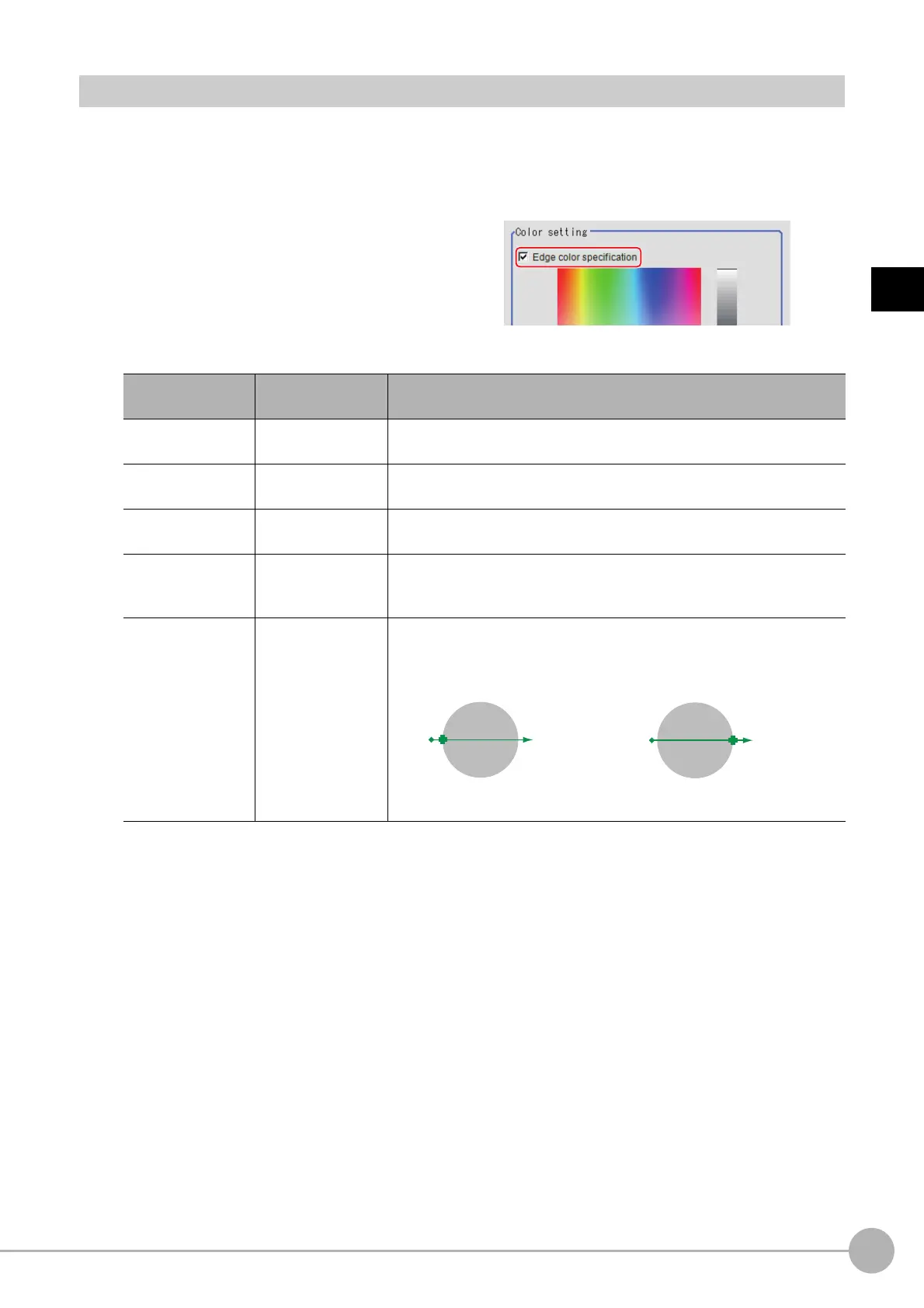

Circular Scan Edge WidthFH/FZ5 Processing Item Function Reference Manual
285
2
Inspecting and Measuring
Edge Color Specification - For Color Cameras Only (Circular Scan Edge Width)
This item selects the color of the edges to be detected.
If the target color changes, this setting is not necessary.
If the color is not specified, positions in the
measurement region where the color changes drastically are detected as an edge.
1 In the Item Tab area, click [Edge color].
2 Place a check at "Edge color
specification" in the "Color setting" area.
3 This item selects the color to be detected as edges.
Setting method
Set value
[Factory default]
Description
Image Display area -
Specify a region on the image that includes the target color. The average
color of the specified region is registered.
Color chart -
Click the reference color on the color chart to specify it. The RGB values
fo
r the specified color are displayed at the bottom.
R, G, B
0 to 255
[255]
The color to be detected is se
t with the RGB val
ues.
Difference R, G, B
0 to 127
[5]
This sets the allowable color difference for detecting the edge, using the
specifie
d color as the reference. The larger the difference values, the
larger the color range that is used to detect the edge.
Detection mode
• [Color IN]
•Color OUT
Specified color IN: The position where a color other than the speci
f
ied
color changes to the specified color is detected as the edge.
Specified color OUT: The position where the
specified
color changes to a
color other than the specified color is detected as the edge.
Start
point
End
point
Start
point
End
point
For “Color IN” edge
measurement mode
For “Color OUT” edge
measurement mode
