Measurement Image Switching
84
FH/FZ5 Processing Item Function Reference Manual

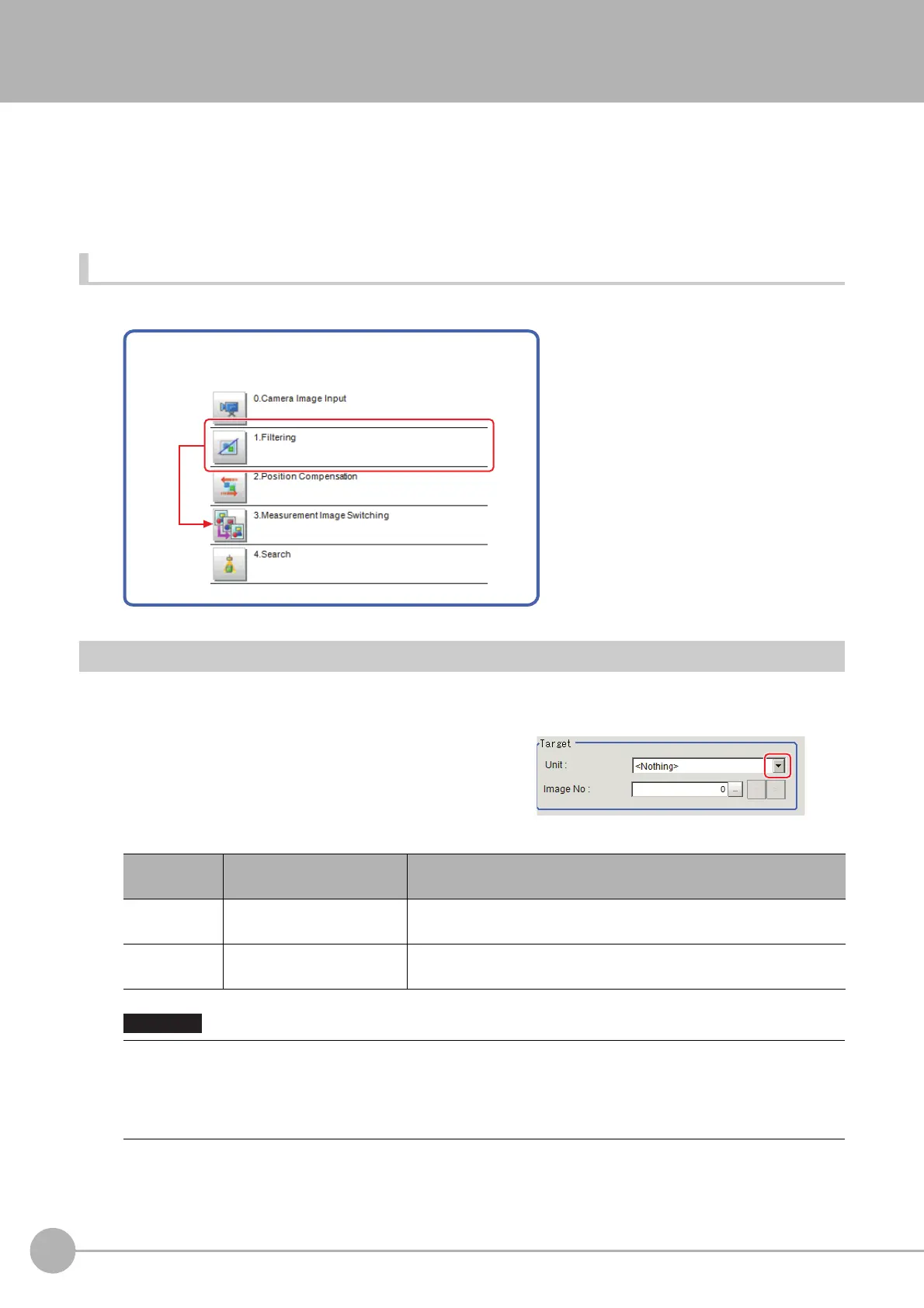

Measurement Image Switching
This sets the output image for the camera image input processing items and specified image conversion related
processing items as the input image for the processing items set in the flow from this processing item onward.
This is primarily used to return converted images back t
o
their originals and to increase the images that can be
selected as conversion targets for image conversion related processing items by placing before the image
conversion related processing items.
Used in the Following Case
• To return a converted image to its original
Parameter Settings (Measurement Image Switching)
Specify the processing unit that outputs the images to configure.
Select one that is located in upper position than this processing unit in the flow.
1 Select the target unit in the "Target"
area.
Item
Set value
[Factory default]
Description
Unit
0 to 9999 processing unit
[<Nothing>]
Unit that outputs images subject to reset. Select one
that is located in
upper position than this processing unit in the flow.
Image No.
0 to 9999
[0]
No. of the image that the target unit holds.
• If <Nothing> is left selected, the measuremen
t image
switching measurement result is NG. Be sure to select one
other than <Nothing>.
• Selectable Camera Image Input or Compensate Image
pro
cessing items and their image No. are as follows.
Reference: "Macro Reference - List of Image Number
s" in the "Vision System FH/FZ5 Series Macro Customize
Functions Programming Manual (Z367)"
Example) Performing a search after returning to the image from
before position compensation was performed
Important
To Next Page
