Control Flow ParallelFH/FZ5 Processing Item Function Reference Manual
855
5
Branch

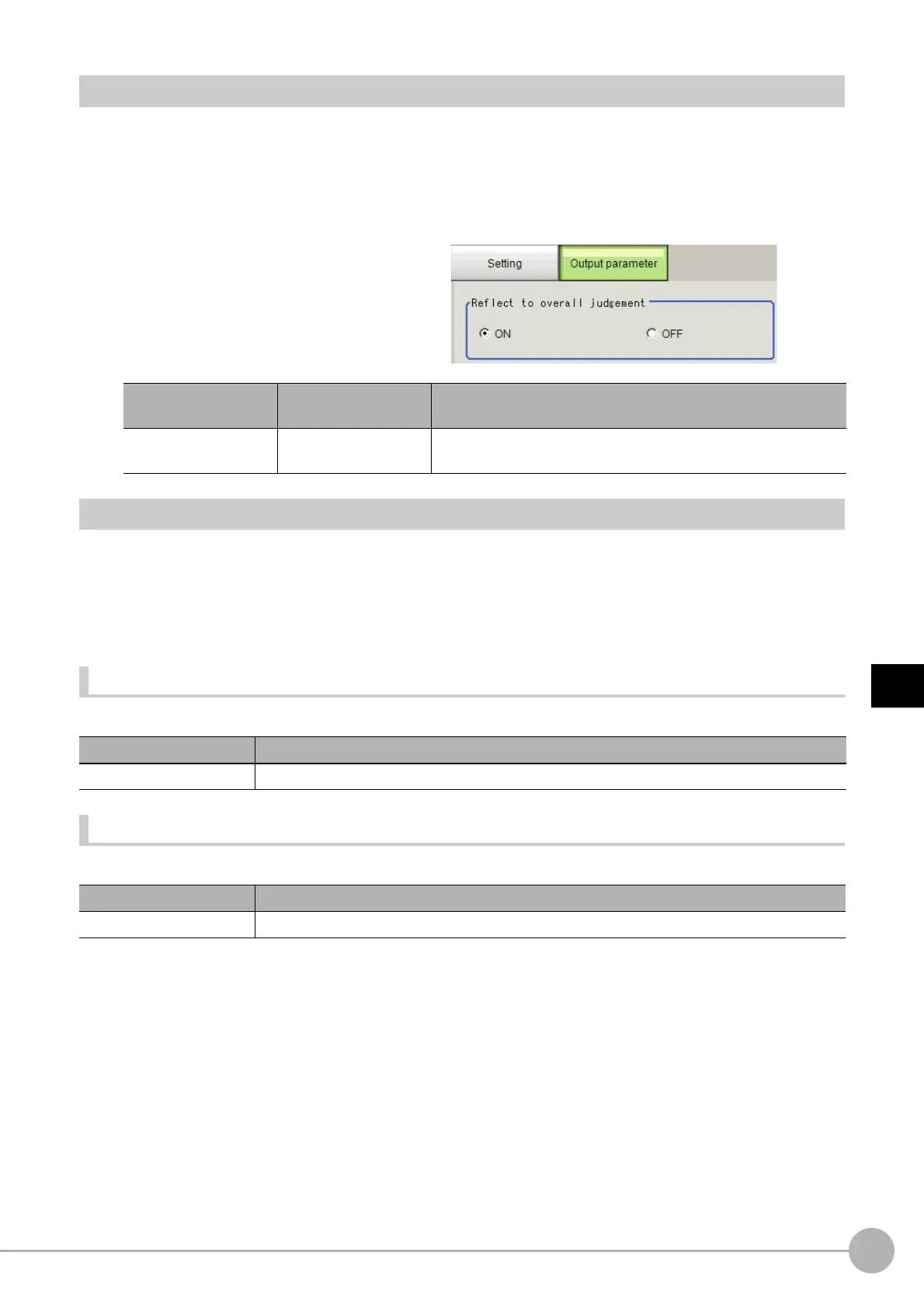

Output Parameters (Control Flow Parallel)
You can set this item to change the output parameters.
The output parameters are the conditions and parameters
for outputting measurement results to other
processing units or external devices. Normally, the factory default values can be used.
1 Click [Output parameter] in the Item Tab area.
2 Specify a value for each item.
Key Points for Test Measurement and Adjustment (Control Flow Parallel)
You can adjust the parameters while you perform test measurements and check the measurement results to
increase the measurement precision and speed.
Select the adjustment method by considering the following point.
For the display of measurement results and the results that are output, check Reference: Measurement
Results for Which Output Is Possible
(Con
trol Flow Parallel) (p.856).
Items Displayed in the Detail Result Area
The following measurement results are displayed in the “Detail result” area as text.
Items Displayed in the Image Display Area
You can specify a sub-image number to display the next image in the image display area.
Setting item
Setting value
[Factory default]
Description
Reflect to the overall
judgement
• [ON]
•OFF
Set whether the judgement result from this processing unit is
applied to the overall scene judgement.
Displayed item Description
Judge Displays the judgement result for the processing unit.
Sub image number Description
0 The measurement image appears.
