Shape Search III
170
FH/FZ5 Processing Item Function Reference Manual
Model (Shape Search III)
Register the specific parts of the image to measure as the Model.
Before registering as a Model, verify the
position to inspect on the workpiece. Position information entered at
Model registration time is included in the Model information. If the position to detect at measurement time differs
from the registered position, it will not be accurately detected.
Model Registration
There are two methods for Model Registration. One is to use the input image. The other is to use an image from
a previously provided graphic pattern. In most cases it is recommended to use the input image.
Register the Model image (Input image)
When registering a model image using the Input image.
Verify the position of the workpie
ce before measuring.

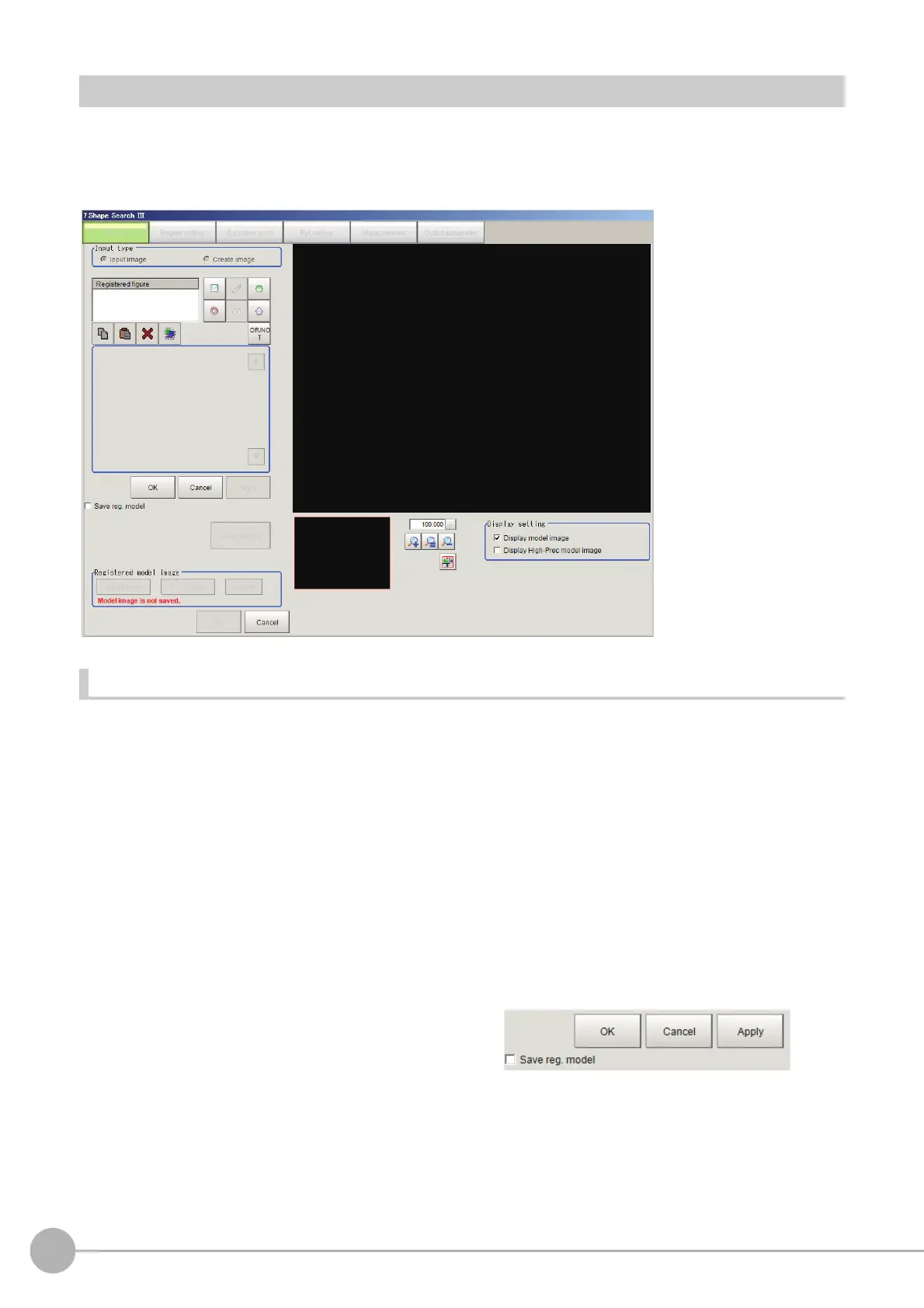

1 Click [Model] tab.
2 Choose [Input image] in the Input type area.
3 Click [Edit].
4 Select the area of the image to register as the Model using the Drawing tool.
5 Check the “Save reg. model” box for later verification of the image used as a Model.
6 Click [OK] in the Figure setting area.
• [OK]: Changes the settings and returns to the
previous menu.
• [Cancel]: Changes are discarded. Returns to the
pre
v
ious menu.
• [Apply]: Updates the settings
w
ithout leaving edit window.
To Next Page
