Camera Calibration
816

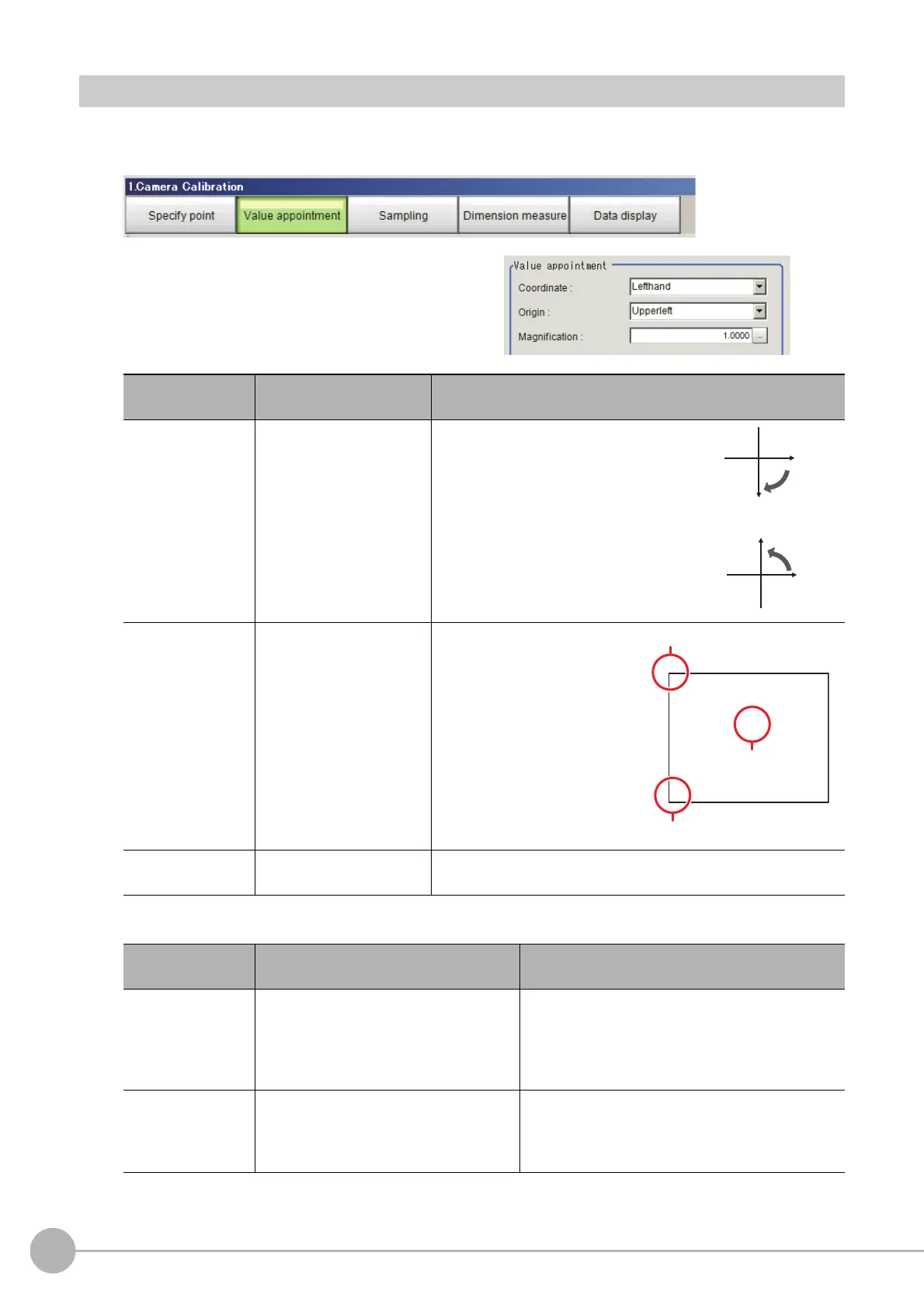

FH/FZ5 Processing Item Function Reference Manual
Value Appointment (Camera Calibration)
Set the magnification ratio as a numeric value to make the calibration setting.
1 In the Item Tab area, click [Value appointment].
2 Set the [Value appointment] area.
If "Specify point" is selec
ted for [Origin].
Setting item
Setting value
[Factory default]
Description
Coordinate
• [Lefthand]
• Righthand
Lefthand: Clockwise is forward when
spec
ifying the coordinates.
Righthand: Counter-clockwise is
forward
when specifying the
coordinates.
Origin
• [Upperleft]
•Lowerleft
•Center
• Specify point
Select where the origin of the
actua
l coordinates will be.
Magnification
0.0001 to 9.9999
[1.0000]
Specify the ratio of 1 pixel to the actual dimensions.
Setting item
Setting value
[Factory default]
Description
Camera X and Y
-99999.9999 to 99999.9999
[0]
Set the camera coordinates for a given point.
If the origin of the actual coordinates is included in
the field
of view, measure the origin position of the
actual coordinates in advance and set them to the
camera coordinates X and Y.
Changed X and Y
-99999.9999 to 99999.9999
[0]
Set the actual coordinate values set as the camera
co
or
dinates.
If the origin position of the
actual
coordinates is set
as the camera coordinates, set (0.0, 0.0).
Left-hand
type
Right-hand
type
X
Y
0
0
Forward
X
Y
Forward
Upperleft
Lowerleft
Center
